22mm DC Planetary Gearmotor 24V

• Manufacturer Part Number: DP224P high torque
• Gearbox Type: Planetary Geared box with Powder Metallurgy Gear
• Gear Ratio:1:5~1:1621
• Electric Planetary Reducer Size: 22mm
• Ball bearing of shaft bearings in most series is available.
• OEM Custom modifications is available.
• Application: Automatic Window Bind Motor,
Medical Instrument Motor

Quantity:
  • DP224P GearMotor 24V
  • I.CH
  • 22mm Reducer Motor

The Specification in the table comes from the motor with planetary gearbox, planetar gears is powder metallurgy gear, highest torque is 27kg.cm

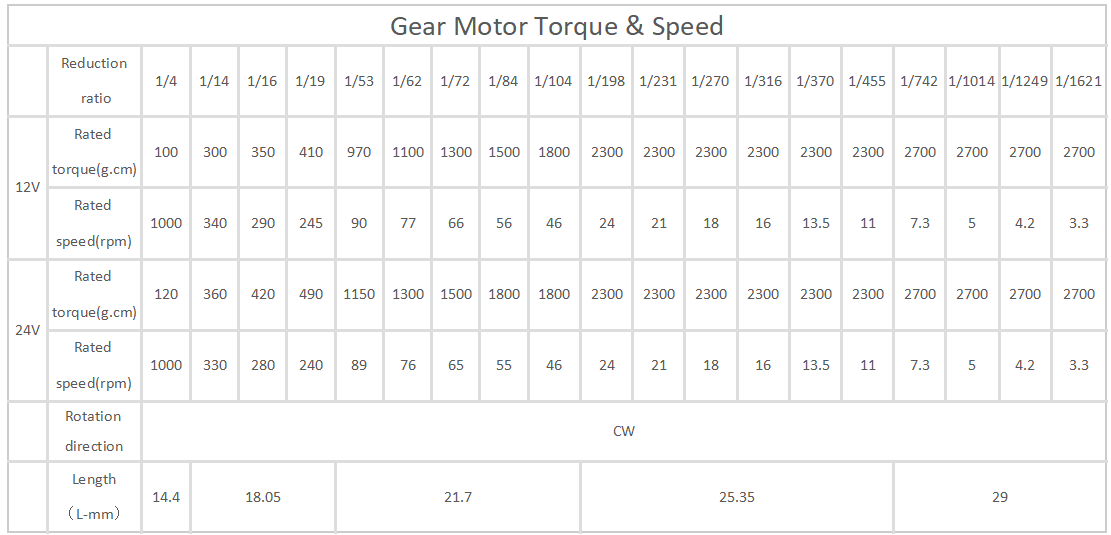

Gear Motor Torque & Speed

Reduction
 ratio
1/41/141/161/191/531/621/721/841/1041/1981/2311/2701/3161/3701/4551/7421/10141/12491/1621
12VRated
torque(g.cm)
10030035041097011001300150018002300230023002300230023002700270027002700
Rated
speed(rpm)
100034029024590776656462421181613.5117.354.23.3
24VRated
torque(g.cm)
120360420490115013001500180018002300230023002300230023002700270027002700
Rated
speed(rpm)
100033028024089766555462421181613.5117.354.23.3

Rotation
direction
CW

Length
(L-mm)
14.418.0521.725.3529

• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.

• Modified versions for extended temperature and special environmental conditions are available.


DC Motor Specification
Rated volt
(V)
Rated torque
(g.cm)
Rated speed
(rpm)
Rated current
(mA)
No load speed
(rpm)
No load current
(mA)
Weight
(g)
12 31 4790 <=240 6000 <=80 43
24 37 4710 <=145 6000 <=55 43

D223P-03&04电机曲线

                                                   Mechanical Dimensions
D223P-03&04


Full Datasheet

D223P-03&04.doc
