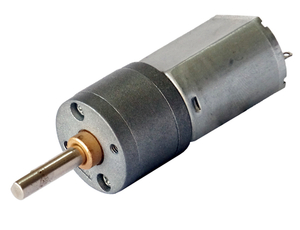

25mm DC Geared Motor

• Manufacturer Part Number: D252A2
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:9.7~1:498
• Motor Reducer Voltage: 6V,3V
• China Reduced Motor Size: 25mm
• Application: Storage Box Motor, Ad Equipment Motor, Audio Equipment Motor, Electronic Game Machine Motor

Quantity:
  • D252A2(25mm)
  • I.CH

25mm DC Geared Motor integrated a 25mm spur gearbox of 1:10 to 1:498 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D252-0010213.0150501200.11501200.5500
D252-0010363.07050550.14100800.8400
D252-0031036.04030300.3701002.0300
D252-0061726.03070250.61801606.0800
D252-0082266.02470190.81801607.5800
D252-0205006.094072.010014015.0700


Gear Ratio
Number of stages345678

Gear ratio i
9.716.126.959.2130.1286.3
12.521.335.578.1171.8377.9
   46.9103.1226.8498.9
Length of gearbox L (mm)19.021.023.025.027.0


Mechanical Dimensions
D252A2DWG

Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 3 4 5 6 7 8

Gear ratio i
9.7 16.1 26.9 59.2 130.1 286.3
12.5 21.3 35.5 78.1 171.8 377.9
    46.9 103.1 226.8 498.9
Length of gearbox L (mm) 19.0 21.0 23.0 25.0 27.0

Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D252A2.pdf

Factory Ability

I.CH has comprehensive company management system, it was awarded ISO9001: 2015 certification in year 2016, has a excellent technical team and a group of skilled employees. We supply DC Gear motor, AC Gear motor, Reduced Motor, Gear Reduction Box, Planetary gear motor, Planetary Gearbox, Gear Wheel, Spur Gearbox. We provide total solution to customers including transmission gear box design, we also provide OEM and ODM service.

1  2  3
        Concentricity detector                                              Ultrasonic Cleaner                                                           Gear Testing Center
4  5  6

 Gear Inspection Center                                                     Gear Hobber                                                                      Gear Hobbing


Advantages

1. We offer OEM service;

2. CE, ROHS, IS09001... Certificate report;
3. Reliable supplier, direct manufacture 8 years.


Package

-cartons;

-Shipping way: air, vessel and courier;

-Delivery: 10 to 45 days .

7  8  9


FAQ

Q: I want the shaft be double flat of reduced motor, can you make it?

A: Yes we can.



Q: How do I choose a right gearbox?

A: It depends on the gear ratio you need, if you need big torque, you will choose big ratio.



Q: Can I to add an encoder?

A: Yes, we can add encoder on the motor, please tell us your spec of encoder.
