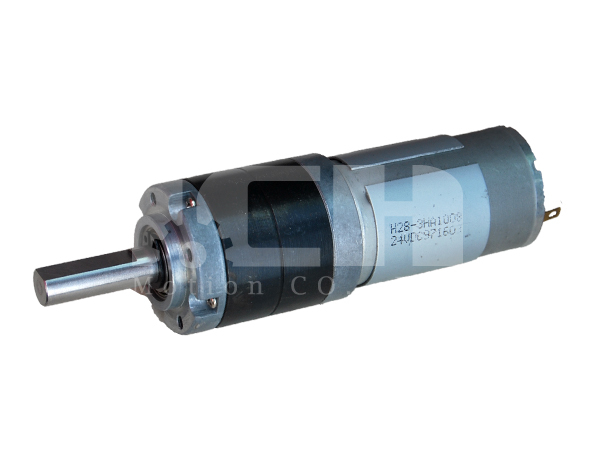

32mm DC Planetary Gear Motor

• Manufacturer Part Number: D323-3A
• Gearbox Type: Planetary Gearbox
• Gear Ratio:1:3.4~1:1012
• Micro Planetary Gear Motor Size: 32mm
• Application: Security Cameras Motor

Quantity:
  • D323-3A(32mm)
  • I.CH
27mm Planetary Gear Reduction integrated a 32mm planetary gearbox of 1:3.7 to 1:1012 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
GEARBOX MOTOR SPECIFICATION
Type  Ratio 1:3.7 1:5 1:16 1:19 1:27 1:51 1:79 1:100 1:139 1:190 1:253 1:305 1:352 1:408 1:516 1:596 1:721 1:1012
D323           Rated torque kg.cm 0.4 0.5 1.5 1.8 2.5 3.5 6 8 12 14 18 24 28 34 38 45 45 45
Rated speed rpm 1600 1300 380 320 220 120 76 59 51 32 24 20 17 15 12 10 8 6
Gearbox Instantaneous
 torque
Kg.cm 15 30 45 60
Allowable torque Kg.cm 10 20 30 40
Length mm 28 37.5 47 56.5
Backlash O 0.7 0.8 1 1
Weight g 133 162 190 218

MOTOR DATA
Frames volt
(V)
No road speed
(rpm)
Noroad current
(mA)
Rated torsion
(g.cm)
Raterd speed
(rpm)
Raterd current
(mA)
Output power
(w)
Weight
(g)
3A7K8-24V 7800 100 120 6800 495 8.25 102
Note: Product voltage, output shaft size, electrical performance, you can request custom-made!

MOTOR CHARACTERISTICS
D323-3A-24V CURVE


Encoder

111

Clutch



Connector
Molex,Harwin,Tyco/AMP,JST etc.
QQ截图20180621113414

Motor
Brush Motor,Brushless Motor,Stepper Motor
Shaft
D-cut Shaft,H-cut Sahft,Rround Sahft

Mechanical Dimensions
D323-3A

Full Datasheet
D323-3A.pdf
