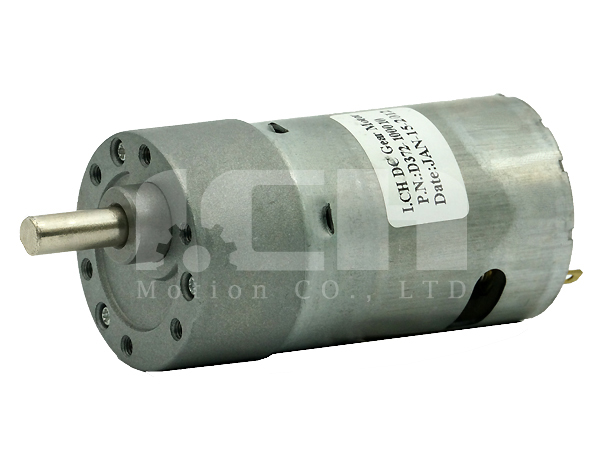

37mm DC Gear Motor

• Manufacturer Part Number: D372B3
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:10~1:1350
• DC Gearhead Motor Voltage: 12V,24V
• DC Gear Reducer Size: 37mm
• Application: Financial Paper Feeder Motor, Accessory of Automobile Motor, Ad Equipment Motor, Mini Mechanism Motor

Quantity:
  • D372B3(37mm)
  • I.CH


35mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
A
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D372-20021012.0170.1313.520.0450240070.04000
D372-05005024.01400.151305.0520600016.04000
D372-04503024.01100.10854.5150420016.01200
D372-10045024.07.50.107.010.015070070.01200
D372-05007012.0700.20575.0500300050.04200
D372-03503024.01650.121153.5780410025.03100


Gear Ratio
Number of stages234567

Gear ratio i
102050150300750
 3060180350900
   702104501050
     902706301350
Length of gearbox L (mm)19.021.524.026.529.031.5


Mechanical Dimensions
D372B3 DWG


Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 2 3 4 5 6 7

Gear ratio i
10 20 50 150 300 750
  30 60 180 350 900
    70 210 450 1050
      90 270 630 1350
Length of gearbox L (mm) 19.0 21.5 24.0 26.5 29.0 31.5

Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D372B3.pdf

Factory Ability

I.CH Motion started as a trading company in 2006, has different teams to support our customers, R&D team provides customer professional technical suggestions, sales team provides customers purchase experience. Now we not only supply products like DC Brushed Motor, BLDC, Planetary Geared Motor, AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor widely used in household appliance, Auto Control Machine, etc, but also supply technical support and project solutions.

1  2  3

     Concentricity detector                              Ultrasonic Cleaner                                              Gear Testing Center
4  5  6

  Gear Inspection Center                                            Gear Hobber                                                          Gear Hobbing


Advantages

1. Fast reply;

2. Good price;

3. High quality.


Package

-Rigid packages;

-Vessel or sea shipping chosen by clients;

-Due time for sample from 2- to 4 weeks, batch order from 4 to 8 weeks.

7  8  9


FAQ

Q: What max rated torque is the 37mm Gear Motor?
A: Torque for it can be 20Kg.cm.

Q: What minimum speed of this motor?
A: The speed of 37mm size Geared motor can be 2-3rpm.

Q: What application of 37mm DC Gear Motor?
A: Going to be used as Financial Paper Feeder Motor, Accessory of Automobile Motor, Ad Equipment Motor, Mini Mechanism Motor.
