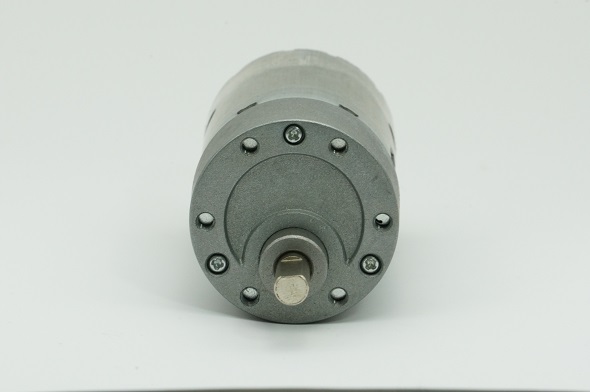

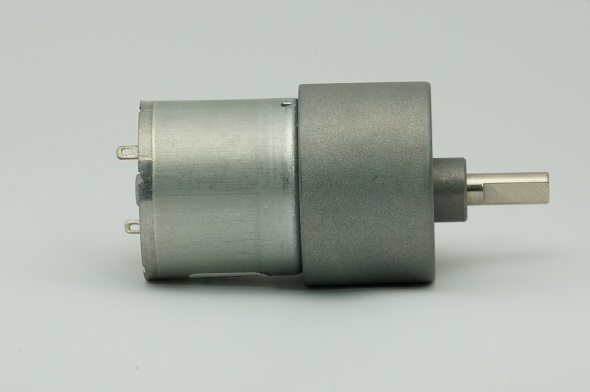

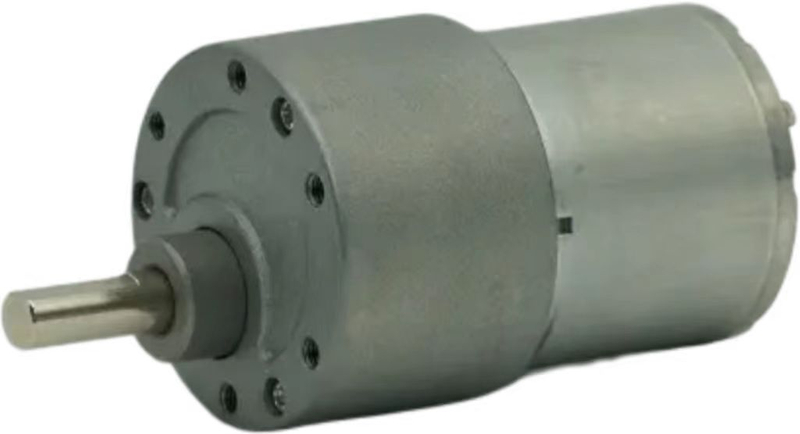

37mm DC Geared Reducer

• Manufacturer Part Number: D372B2
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:10~1:1350
• Gearhead Motor Voltage: 12V,24V
• Motor Reducer Size: 37mm
• Application: Financial Apparatus Motor, Accessory of Automobile Motor, Mini Mechanism Motor

Quantity:
  • D372B2(37mm)
  • I.CH

33mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D372-00501024.0780506600.525035003.0600
D372-08027024.02050188.0150150060.0800
D372-05027024.01140105.08050040.0500
D372-09015024.03250259.0190230028.0700
D372-01003024.0165501451.011015009.0700
D372-02003012.0195801502.040031008.01500
D372-04009012.06570524.0400310022.01500
D372-09015012.04070309.0400270025.01500
D372-03007012.010090823.0400250018.01900


Gear Ratio
Number of stages234567

Gear ratio i
102050150300750
 3060180350900
   702104501050
     902706301350
Length of gearbox L (mm)19.021.524.026.529.031.5


Mechanical Dimensions
D372B2DWG

Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 2 3 4 5 6 7

Gear ratio i
10 20 50 150 300 750
  30 60 180 350 900
    70 210 450 1050
      90 270 630 1350
Length of gearbox L (mm) 19.0 21.5 24.0 26.5 29.0 31.5

Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D372B2.pdf

Factory Ability

I.CH was established in 2016, we are a professional micro motor supplier customers are all over the world, and the customers of our own are in USA, UK, EU, Russia, Italy, India, South Korea and so on. ICH provide OEM and ODM for a lot of BRAND-NAME companies. We mainly produce DC Brushed Motor, Brushless DC Motor, DC Geared Motor, DC Planetary Geared Motor, AC Geared Motors, Gearbox, Gearbox Parts, Planetary Gearbox, Gear Pins, Stepper Gearbox, etc.

1  2  3

     Concentricity detector                                          Ultrasonic Cleaner                                              Gear Testing Center
4  5  6

  Gear Inspection Center                                            Gear Hobber                                                          Gear Hobbing


Advantages

1. Small MOQ;

2. Smooth sales experience;

3. Provide solutions.


Package

-Carton packages;

-Air and sea shipping would be chosen by customers;

-Delivery in 20 - 50 days.

7  8  9


FAQ

Q: What the voltage can 37mm DC Motor be?
A: This DC Motor has two kinds of voltage, 24V and 12V.

Q: What biggest ratio speed can this gearbox be?
A: The 37mm size gearbox can be 1:1350 ratio..

Q: Do you have a standard encoder for the DC Geared Motor?

A: Yes, we can recommend you suitable encoder, bu it would be better that you tell requests.
