42mm Round Brushless DC Gear Motor

• Manufacturer Part Number: DG425
• Gearbox Type: Planetary Gearbox
• Gear Ratio: 5~100
• DC Gearhead Motor Voltage: 24V
• DC Gear Reducer Size: 42mm
• Application: household appliances, electric vehicles and other fields

Quantity:

The DG425 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.


Electrical Specification

Motor Model

D425-28W

D425-56W

D425-84W

Rated Voltage(VDC)

24

24

24

Rated Speed(Rpm)

3000

3000

3000

Rated Torque(N.m)

0.09

0.18

0.27

Rated Power(W)

28

56

84

L1   Length(mm)

58

78

98


Gearbox Electrical Specifications

Reducer Series

1

2

Transmission efficiency

95%

90%

Max radial load

80N

80N

Max axial load

30N

30N

Transmission torque

12N.m

20N.m

Reduction Ratio

5 ,10

20,25,40,50,100

L2   Length(mm)

28.5

38

 Note: We can manufacture products according to customer's requirements.

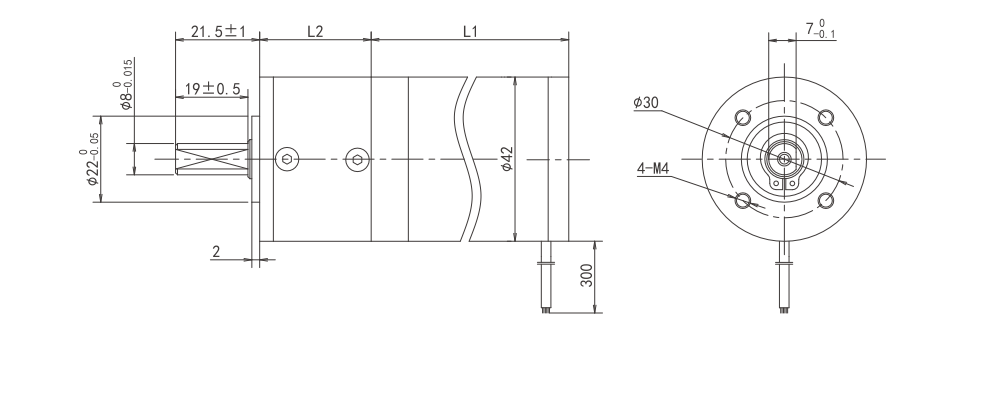

Mechanical Dimensions

42mm round


 Wiring Diagram
