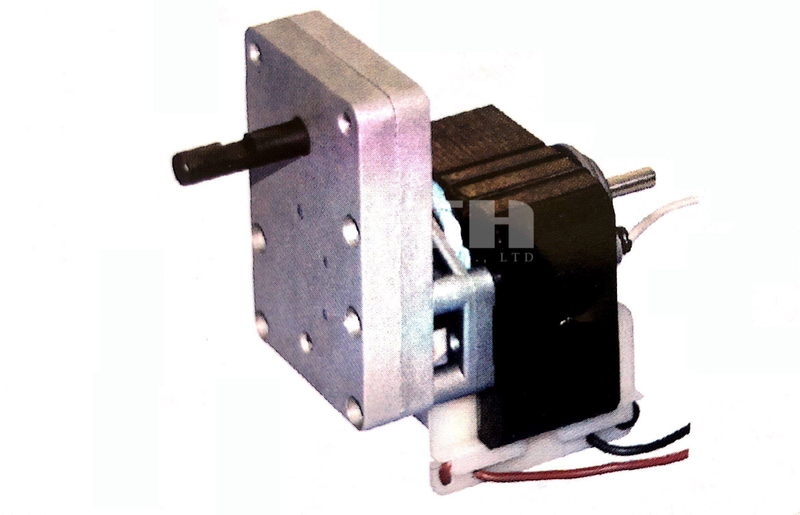

58mm AC Shaded Pole Motor

• Manufacturer Part Number: S583E
• Motor Type: AC Shaded Pole Motor
• Synchronous Motor Gear Ratio:1:39~1:208
• Synchronous Motor Speed :13~72rpm
• Frequency: 50Hz or 60 Hz
• Torque: Max 65kg.cm
• AC Gear Motor Rotation:CW,CCW,Bi-directional
• Application: HVAC System Motor

Quantity:
  • S583E(58mm)- 50/60Hz
  • I.CH
  • AC Shaded Pole Motor S583E
S583E参数图-2

Safety
Insulation resistance DC 500V 100M ohms
Insulation strength AC1500V, 50Hz/min(220V motor)
Insulation class E(105℃) / B(130)
Environment Temp.-10℃~+40 / Humidity:<85
Certification CE ROHS CCC



Mechanical Dimensions
S583E图纸


Custom Shaft
Round Shaft, D-Cut Sahft, H-Cut Shaft, Custom Length

AC Motor with Gearbox
QQ图片20180626145005

Cooling fan
QQ图片20180625151032

Connector
Molex, Harwin, Tyco/AMP, JST etc.

connector


Leadwires and Cables
Special lengths, Protective hose


wires

Full Datasheet

Factory Ability

I.CH Motion was established in 2006, provides all kinds of electric motors, such as Stepper Motor, BLDC Motor, Servo Motor, AC Geared Motor, AC Synchronous Motor, AC Induction Synchronous Motor, AC Shaded Motor and all motor parts. We have accumulated over ten years experience to meet different clients requires, all of our products can be customized.


Advantages

1. Good Pre/After Sales Service;

2. CE, ROHS, IS09001... Certificate report;

3. Refunds or replacement in case of damaged by transportation;


Package

-Cartons;

-Air shipping, or Sea shipping;

-Lead: 20 - 50 days.

未标题-1 未标题-2 未标题-3


FAQ

Q: What the lowest speed can 58mm AC Shaded Pole Motor be?

A: It can be 10rpm.

Q: What largest torque?
A: The torque can be over 70kg.cm.

Q: Can you provide the sample within 10days?
A: If we have materials in stock, then we can make the sample in 10days. If not, the lead will be around 20days.
