60MM Brushless DC Gear Motor

• Manufacturer Part Number: DG605
• Gearbox Type: Planetary Gearbox
• Gear Ratio: 5~50
• Rated Torque: 0.25~0.75N.m
• DC Gearhead Motor Voltage: 48V
• DC Gear Reducer Size: 60mm
• Application: aeromodelling, medical devices

Quantity:

The DG605 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.

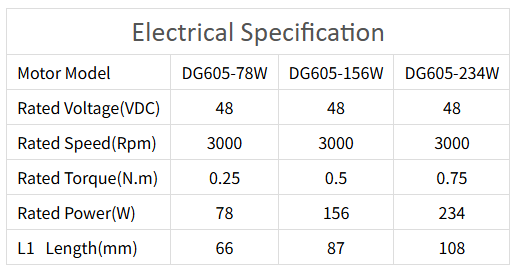

Electrical Specification

Motor Model

DG605-78W

DG605-156W

24WSTE482330

Rated Voltage(VDC)

48

48

48

Rated Speed(Rpm)

3000

3000

3000

Rated Torque(N.m)

0.25

0.5

0.75

Rated Power(W)

78

156

234

L1   Length(mm)

66

87

108

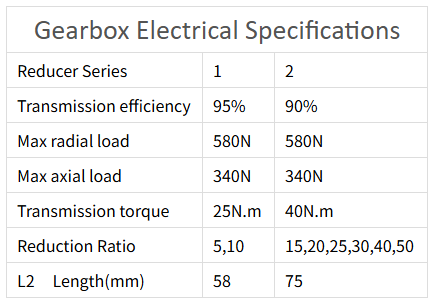

Gearbox Electrical Specifications

Reducer Series

1

2

Transmission efficiency

95%

90%

Max radial load

80N

80N

Max axial load

30N

30N

Transmission torque

40N.m

60N.m

Reduction Ratio

5,10

15,20,25,30,40,50

L2     Length(mm)

58

75

*Note: We can manufacture products according to customer’s requirements.



Mechanical Dimensions


Wiring Diagram
