DS122F-03&04
I.CH

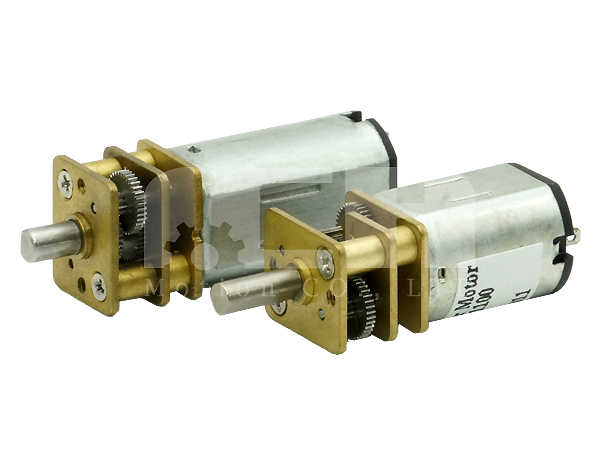

12MM DC Spur Gear Motor
Small DC Gear Motor, Micro DC gear motor is the assembly of a micro metal gearbox and the motor. The mini gear motor can be directly connected to the power for use, as long as the voltage is the same.
The 12mm DC spur gear motors that I.CH supplies are suitable to operate at low speed while keeps high efficiency.
The gear material and molding methods can be arbitrarily selected.

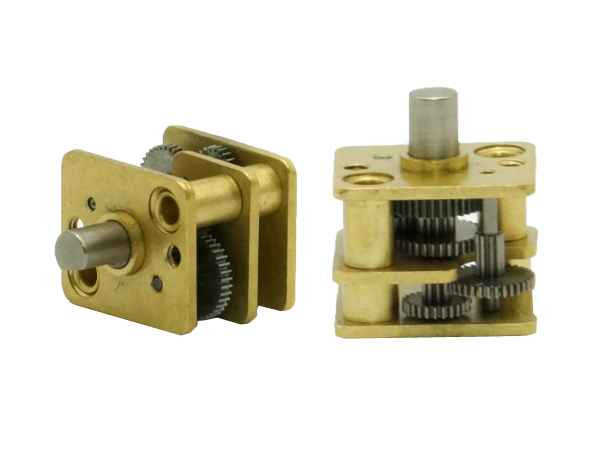

Gearbox Specification
| Reduction ratio | 1/10 | 1/19 | 1/29 | 1/60 | 1/76 | 1/102 | 1/134 | 1/197 | 1/235 | 1/298 | |
| 3V | Rated torque(g.cm) | 24 | 40 | 60 | 115 | 150 | 200 | 235 | 345 | 415 | 525 |
| Rated speed(rpm) | 1300 | 700 | 460 | 225 | 175 | 132 | 100 | 68 | 57 | 45 | |
| 6V | Rated torque(g.cm) | 30 | 55 | 80 | 155 | 200 | 270 | 300 | 460 | 530 | 700 |
| Rated speed(rpm) | 1500 | 780 | 510 | 250 | 195 | 145 | 112 | 76 | 64 | 50 | |
| Rotation direction | CW | CCW | CW | CCW | |||||||
DC Gear Motor Specification
| Rated volt(V) | Rated torque（g.cm） | Rated speed(rpm) | Rated current(mA) | No load speed(rpm) | No load current(mA) | Weight(g) |
| 3.0 | 3.0 | 13500 | <=310 | 16000 | <=90 | 7.5 |
| 6.0 | 4.0 | 15000 | <=250 | 18000 | <=65 | 7.5 |
