Shared Bike Motor

• Manufacturer Part Number: D122F
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:10~1:298
• DC Reduction Motor Size: 12mm
• Application: Electronic lock Motor, Optic equipment Motor, Medical Apparatus Motor, Shared Bike Motor

Quantity:
  • D122F(12mm)
  • I.CH

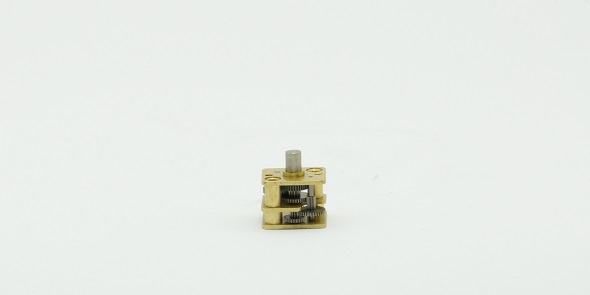

12mm DC Geared Motor integrated a 12mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification


MODEL


VOLTAGE
V

NO LOAD

AT MAXIMUM EFFICIENCY

STALL

SPEED
rpm

CURRENT
mA

SPEED
rpm

TORQUE
kg.cm

CURRENT
mA

OUTPUT
mW

TORQUE
Kg.cm

CURRENT
mA

D122-003210

3.0

35

35

27

0.25

80

70

1.2

250

D122-001100

3.0

110

50

91

0.14

150

130

1.0

650

D122-001050

2.4

300

60

240

0.07

250

170

0.4

1000

D122-004298

3.0

50

60

40

0.4

250

170

2.2

1000




Gear Ratio
Number of stages345
Gear ratio i1050210
 100250
 150298
Length of gearbox L(mm)9.0






Mechanical Dimensions
D122F DWG

Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 3 4 5
Gear ratio i 10 50 210
  100 250
  150 298
Length of gearbox L(mm) 9.0

Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D122F.pdf

Factory Ability
I.CH MOTION’s customers are all over the world, and mainly in USA, EU, South Korea and other countries,we provide OEM and ODM for a lot of BRAND-NAME companies. We warmly welcome End users and Agents to make inquiry to us, and would like to establish a widely cooperation with our esteemed customers, we produce DC Gear Motor from 12mm~48mm, spur gearbox and planetary gearbox assembled with DC motor and stepper motor, and especially high precision Gear wheel with small modulus 0.2~0.6.
1 2 3

 Concentricity detector                                                     Ultrasonic Cleaner                                                           Gear Testing Center
4 5 6
Gear Inspection Center                                                    Gear Hobber                                                                       Gear Hobbing


Advantages
1. Good Pre/After Sales Service;
2. 1 Year Factory Warranty;

3. 12 hours service time per day.

Package
-Pack well by customers’ needs carton with protection foam;
-Shipping depends on cargo weight and clients’ requirements; ;
-Delivery time is 2-6 weeks.
7 8 9


FAQ
Q: What does the share bike motor mean?
A: It means this motor is going to be used for shared bicycle, like Ofo, Mobike in China.

Q: How to select a suitable DC Gear Motor?
A: If you have Gear motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable Geared Motor per your request accordingly.

Q: What gear type for this motor?
A: It is spur gearbox.

Q: What is the reduction motor size?
A: It is 12mm.

Q: What is the voltage?
A: It is 2-3V, or could be customized by your quests.
