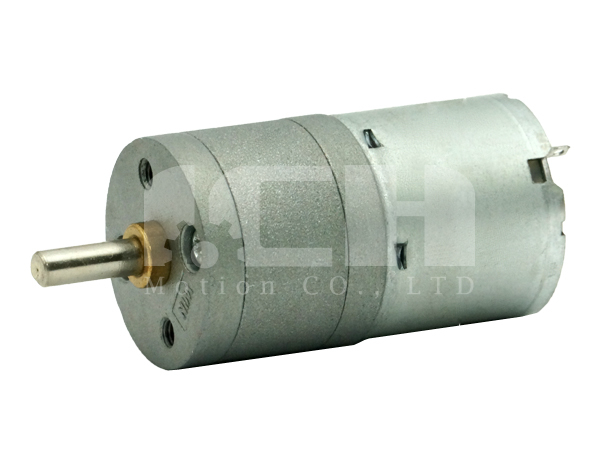

25mm DC Geared Reducer

Manufacturer Part Number: D252A4
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:9.7~1:498
•Geared Motor Reducer Voltage: 6V,12V
• Reduced Motor Size: 25mm
• Application: Robot Motor, Measuring Instrument Motor, Audio Equipment Motor, Medical Instrument Motor

Quantity:
  • D252A4(25mm)
  • I.CH


25mm DC Geared Motor integrated a 25mm spur gearbox of 1:10 to 1:498 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

Voltage
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D252-00904712.0120501000.92009506.51200
D252-01910312.05450461.920090013.51200
D252-01822612.02550201.825085015.01200
D252-08550012.0115098.525080015.01200
D252-0100476.0130801000.95400100015.02000
D252-0201036.05580452.04009506.52000
D252-0452266.02680204.535090012.52000
D252-0703786.01680127.035085015.02000
D252-0805006.01280108.035085015.02000


Gear Ratio
Number of stages345678

Gear ratio i
9.716.126.959.2130.1286.3
12.521.335.578.1171.8377.9
   46.9103.1226.8498.9
Length of gearbox L (mm)19.021.023.025.027.0


Mechanical Dimensions
D252A4




Encoder
111
Clutch

Ratio of  Gearbox

Gear Ratio
Number of stages 3 4 5 6 7 8

Gear ratio i
9.7 16.1 26.9 59.2 130.1 286.3
12.5 21.3 35.5 78.1 171.8 377.9
    46.9 103.1 226.8 498.9
Length of gearbox L (mm) 19.0 21.0 23.0 25.0 27.0


Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft

Full Datasheet
D252A4.pdf

Factory Ability
I.CH Motion started as a trading company in 2006, after accumulation of dozen years experience, now we concentrate on designing the latest technology motors and meet our customers requirements, we have the very capable R&D team to ensure products quality, and provide all the customers with best solution, now the products like DC Brushed Motor, BLDC, Planetary Geared Motor, AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor widely used in household appliance, Auto Control Machine, etc.

1  2  3
        Concentricity detector                                              Ultrasonic Cleaner                                                           Gear Testing Center
4  5  6
 Gear Inspection Center                                                     Gear Hobber                                             Gear Hobbing

Advantages

1. After-sales service 24*7;
2. 1 Year Factory Warranty;
3. All your inquiries will be replied in 24 hours.


Package
-Pack within cases and wrapped by film;
-Vessel shipping and sea shipping will be chosen by clients;
-Lead time for sample is 2- to 4 weeks, for batch order is 4 to 8 weeks.

7  8  9

FAQ

Q: Can the ratio speed of gearbox be 500/1?
A: Yes, we can make customized.

Q: Can the voltage of Gear Motor be 24V or 12V?
A: Yes, we provide customized service.

Q: I need one sample in a rush, can you help it?
A: Yes, let us know specs of the motor, we will design configuration asap and arrange product as well. If it is not a special one, we will deliver it to you in 15 days.
