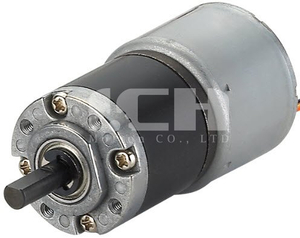

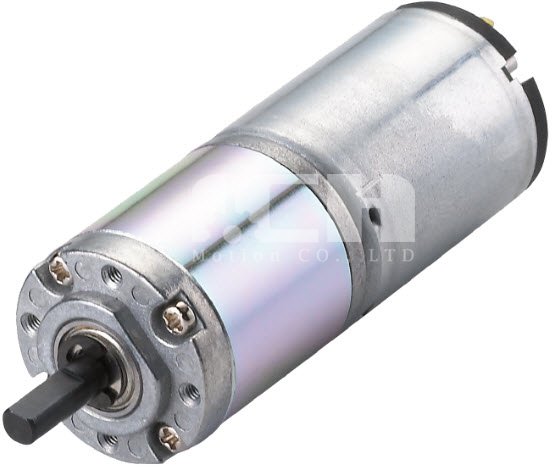

22mm DC Planetary Gearmotor

• Manufacturer Part Number: DP221 high torque
• Gearbox Type: Planetary Geared box with Mixed Gear
• Gear Ratio:1:5~1:1621
• Electric Planetary Reducer Size: 22mm
• Ball bearing of shaft bearings in most series is available.
• OEM Custom modifications is available.
• Application: Automatic Window Bind Motor,
Medical Instrument Motor

Quantity:
  • DP221 GearMotor 12V
  • I.CH
  • 22mm Reducer Motor

The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 30kg.cm

Gear Motor Torque & Speed

Reduction
ratio
1/41/141/161/191/531/621/721/841/1041/1981/2311/2701/3161/3701/4551/7421/10141/12491/1621
12VRated
torque(g.cm)
10030035041097011001300150019002500250025002500250025003000300030003000
Rated
speed(rpm)
100034029024590776656462421181613.5117.354.23.3
24VRated
torque(g.cm)
120360420490115013001500180020002500250025002500250025003000300030003000
Rated
speed(rpm)
100033028024089766555462421181613.5117.354.23.3

Rotation
 direction
CW

Length
(L-mm)
14.418.0521.725.3529

The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 30kg.cm

DC Motor Specification
Rated
volt(V)
Rated
 torque(g.cm)
Rated
speed(rpm)
Rated
current(mA)
No load
speed(rpm)
No load
current(mA)
Weight(g)
12 31 4790 <=240 6000 <=80 43
24 37 4710 <=145 6000 <=55 43

D223-03&04电机曲线



                                                               Mechanical Dimensions
D223-03&04


Full Datasheet

D133-01&02.doc
