D482G2
I.CH
48MM DC Gear Motor
Description
As small DC motor, it is very hard to get high torque. To get DC Motor the high torque and low rpm, the gearbox needs to be used. DC Gear motor is based on ordinary DC motor, coupled with matching gearbox.
As Chinese supplier, we also provide OEM and ODM services. Custom design as the below data you provide
1, Output Speed (RPM)
2, Output Torque
3, Material of Gear Wheel
4, Gearbox Ratio
5, Shaft Type

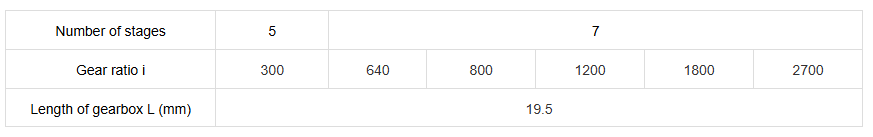

Gearbox Specification
| Number of stages | 5 | 7 | ||||
| Gear ratio i | 300 | 640 | 800 | 1200 | 1800 | 2700 |
| Length of gearbox L (mm) | 19.5 | |||||

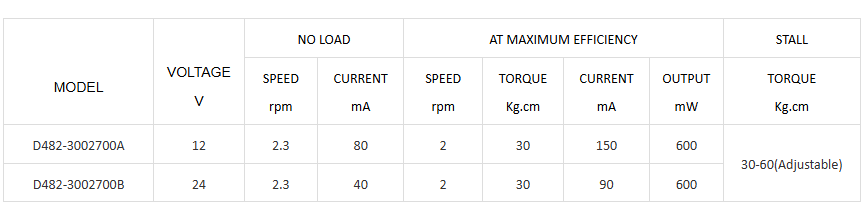

DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | ||
| D482-3002700A | 12 | 2.3 | 80 | 2 | 30 | 150 | 600 | 30-60(Adjustable) |
| D482-3002700B | 24 | 2.3 | 40 | 2 | 30 | 90 | 600 | |
Description
As small DC motor, it is very hard to get high torque. To get DC Motor the high torque and low rpm, the gearbox needs to be used. DC Gear motor is based on ordinary DC motor, coupled with matching gearbox.
As Chinese supplier, we also provide OEM and ODM services. Custom design as the below data you provide
1, Output Speed (RPM)
2, Output Torque
3, Material of Gear Wheel
4, Gearbox Ratio
5, Shaft Type
Gearbox Specification
| Number of stages | 5 | 7 | ||||
| Gear ratio i | 300 | 640 | 800 | 1200 | 1800 | 2700 |
| Length of gearbox L (mm) | 19.5 | |||||
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | ||
| D482-3002700A | 12 | 2.3 | 80 | 2 | 30 | 150 | 600 | 30-60(Adjustable) |
| D482-3002700B | 24 | 2.3 | 40 | 2 | 30 | 90 | 600 | |
