The medical device industry demands precision, reliability, and consistency in every component used. Among these critical components, the BLDC gear motor has emerged as a transformative technology that powers everything from surgical robots to diagnostic equipment. Understanding what a BLDC gear motor is and how it functions within medical equipment is essential for engineers, procurement specialists, and healthcare technology companies seeking to build or upgrade medical devices.
A BLDC gear motor combines two key technologies: a brushless DC motor and a gearbox. The brushless DC motor eliminates the friction and wear associated with traditional brushed motors, while the gearbox provides torque multiplication and speed reduction. Together, these components create a propulsion system that delivers exceptional performance characteristics required by demanding medical applications.
Medical equipment operates under strict regulatory frameworks and must meet rigorous standards for safety and efficacy. The BLDC gear motor meets these requirements by offering silent operation, precise control, and extended service life. As healthcare technology continues to advance, the role of these specialized motors becomes increasingly significant in enabling next-generation medical innovations.
A BLDC gear motor, or brushless DC gear motor, is an electromechanical device that converts electrical energy into rotational mechanical energy through the interaction of magnetic fields, without the use of brushes for commutation. The term "brushless" distinguishes these motors from their brushed counterparts, which rely on physical contact between brushes and a commutator to switch the current direction in the windings.
The fundamental difference between brushless and brushed motors lies in the commutation mechanism. In a traditional brushed DC motor, carbon brushes transfer current to the commutator, creating friction, heat, and mechanical wear. This contact-based system limits the motor's efficiency, lifespan, and maximum speed. A BLDC motor, by contrast, uses electronic commutation where solid-state electronics control the timing and direction of current flow through the windings.
The "gear motor" designation indicates that the motor incorporates an integrated gearbox. This gearbox typically employs spur gears, planetary gear systems, or harmonic drive mechanisms to modify the output speed and torque characteristics. For medical equipment applications, planetary gearboxes are particularly common due to their compact design, high efficiency, and ability to handle significant torque loads without excessive backlash.
I.CH has developed an extensive portfolio of BLDC gear motors spanning from 28mm to 86mm in diameter. These motors combine high-performance brushless DC technology with precisely engineered gearboxes to deliver solutions tailored for medical device applications. Each motor design undergoes rigorous testing to ensure compliance with healthcare industry standards and regulatory requirements. Organizations developing medical equipment motor solutions can access specialized healthcare components including pumps, diagnostic systems, and patient monitors from experienced manufacturers.
The operation of a BLDC gear motor involves the coordinated functioning of its brushless motor and gearbox components. Understanding this operation provides insight into why these motors have become preferred choices for medical equipment manufacturers.
Unlike brushed motors that mechanically switch current using physical contacts, brushless DC motors utilize electronic controllers to manage the commutation process. The controller monitors the rotor position using Hall effect sensors or sensorless detection methods and precisely times the activation of stator windings.
The stator, which remains stationary, contains multiple windings organized in phases. The most common configurations include three-phase wye or delta arrangements. When electrical current flows through these windings in the correct sequence, they generate a rotating magnetic field. The permanent magnets on the rotor then align with this field, producing rotational motion.
The electronic controller switches the current between phases at the appropriate moments, maintaining synchronization between the rotating magnetic field and the rotor position. This precise control enables excellent speed regulation and allows for variable speed operation without mechanical modifications.
The elimination of brushes provides several operational advantages. Without brush contact, there is no spark generation, making brushless motors suitable for environments where electrical interference must be minimized. Medical imaging equipment, for instance, benefits significantly from the electromagnetic compatibility of BLDC technology.
The gearbox portion of a BLDC gear motor multiplies torque while reducing output speed. Medical equipment frequently requires high torque at low speeds—precisely the operating point that gearboxes provide. The gear reduction ratio determines the relationship between input and output characteristics.
Planetary gear systems, commonly used in medical applications, employ a central sun gear that drives multiple planet gears. These planet gears rotate within a stationary ring gear while simultaneously rotating around the sun gear. The planetary configuration offers excellent torque density, meaning more torque per unit of motor size compared to other gearbox designs.
I.CH offers planetary gear configurations as part of their BLDC gear motor solutions, providing customers with optimized torque delivery for demanding medical applications. The combination of brushless motor efficiency and planetary gearbox robustness creates a power transmission system well-suited for continuous duty operations common in healthcare settings.
The bearing system within the gearbox also contributes significantly to overall performance. High-quality bearings minimize friction, reduce noise, and provide the radial and axial load capacity necessary for medical device applications. Premium bearing materials, including stainless steel options, ensure compatibility with sterilization protocols and cleanroom environments.
BLDC gear motors are available in various configurations, each designed to address specific application requirements. Understanding these types helps medical device engineers select appropriate components for their designs.
The physical dimensions of BLDC gear motors determine their suitability for different medical applications. Compact motors in the 28mm range serve applications where space constraints are paramount, such as portable diagnostic devices and implantable pump systems. Larger motors exceeding 60mm provide higher power ratings for equipment requiring substantial torque output.

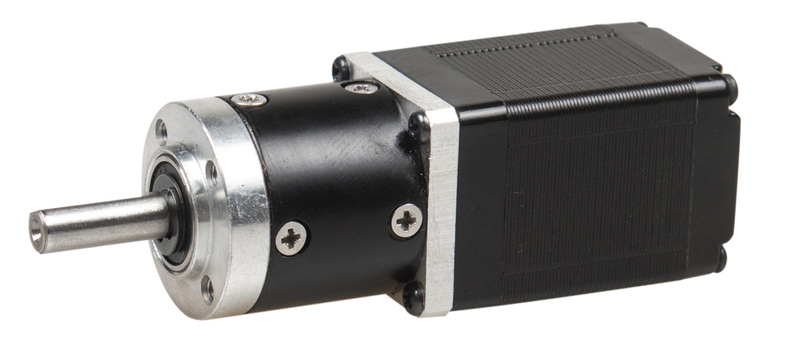

I.CH's product range exemplifies this diversity, offering solutions from compact 28MM brushless DC gear motor models through mid-range 42mm and 60MM options to heavy-duty 86mm configurations. This variety enables designers to match motor specifications precisely to application requirements.
Different gearbox types offer distinct performance characteristics. Planetary gearboxes provide high efficiency and compact packaging. Spur gearboxes offer cost-effective solutions for applications with moderate torque requirements. Worm gear configurations deliver high reduction ratios in single stages and provide inherent braking characteristics.
Medical equipment designers must consider factors including required torque, available installation space, noise constraints, and budget when selecting gearbox configurations. The choice impacts not only immediate performance but also long-term reliability and maintenance requirements.
BLDC gear motors support various control methodologies ranging from simple open-loop speed control to sophisticated closed-loop position control. Some applications require only variable speed operation, while others demand precise positioning accuracy for tasks like precise fluid dispensing or surgical tool manipulation.
Sensorless control methods estimate rotor position from back-EMF signals, eliminating the need for Hall sensors and reducing wiring complexity. Sensor-based control provides better low-speed performance and starting torque, which proves valuable for medical applications involving frequent start-stop cycles or precise positioning requirements.
The medical industry has embraced BLDC gear motor technology across numerous application areas. The unique combination of efficiency, precision, and reliability addresses the demanding requirements of healthcare environments.
Modern surgical robots rely heavily on precision motion control systems where BLDC gear motors play critical roles. These motors drive the articulated arms that enable surgeons to perform minimally invasive procedures with enhanced dexterity and precision. The high torque density of gear motors allows compact actuator designs while maintaining the power necessary for tissue manipulation.
Powered surgical instruments, including bone drills, sagittal saws, and shavers, utilize BLDC gear motors to provide consistent performance throughout surgical procedures. The ability to maintain constant speed under varying load conditions ensures predictable tool behavior, contributing to surgical precision and patient safety.
Medical diagnostic equipment demands quiet, vibration-free operation to ensure accurate readings and patient comfort. BLDC gear motors provide the smooth, precise motion required for sample handling, reagent mixing, and positioning tasks within analyzers and imaging systems.
In automated blood analyzers, gear motors drive peristaltic pumps and pipetting mechanisms with the precision necessary for accurate liquid handling. The repeatable performance of quality gear motors ensures consistent sample processing across thousands of daily tests.
Infusion pumps control the precise delivery of medications, nutrients, and fluids to patients. These devices require motors that can provide accurate flow rates over extended operating periods while maintaining quiet operation suitable for patient rooms.
The compact form factor of modern infusion pumps, including ambulatory devices worn by patients, necessitates small, efficient motor solutions. BLDC gear motors deliver the necessary performance within the tight space constraints of portable medical equipment.
Physical therapy equipment and patient mobility aids incorporate BLDC gear motors for powered assistance. Motorized exercise machines provide resistance and assistance calibrated to individual patient capabilities, supporting progressive rehabilitation programs.
Patient lifts and transport systems use gear motors to provide smooth, controlled motion for safe patient handling. The reliability of quality gear motors ensures these safety-critical systems operate dependably when needed.
The adoption of BLDC gear motors in medical equipment stems from significant advantages these components provide over alternative technologies.
Brushless motors convert electrical energy to mechanical power with significantly higher efficiency than brushed alternatives. This improved efficiency reduces heat generation, which proves particularly important in medical equipment operating in close proximity to patients or sensitive biological samples.
Reduced power consumption also extends battery life in portable medical devices, enabling longer operation between charges. For equipment used in emergency settings or field operations, extended battery life directly impacts the availability of critical medical capabilities.
Without brushes requiring replacement, BLDC gear motors typically demonstrate service lives measured in tens of thousands of hours. This longevity proves valuable for medical equipment where downtime carries serious consequences and maintenance access may be limited.
The absence of brush wear also eliminates performance degradation over time. Medical devices must maintain calibration and performance specifications throughout their operational life, and BLDC technology supports this requirement without the maintenance interventions that brushed motors demand.
Electronic commutation enables sophisticated control algorithms that provide exceptional speed regulation and positioning accuracy. Medical applications requiring precise flow rates, exact positioning, or synchronized multi-axis motion benefit from the control capabilities of quality BLDC gear motors.
Closed-loop control systems can monitor motor performance and automatically adjust parameters to maintain consistent output despite load variations. This adaptive control ensures reliable operation even as components age or operating conditions change.
The elimination of brush-contact noise significantly reduces the acoustic signature of brushless motors compared to brushed alternatives. Medical equipment operating in patient care environments benefits from reduced noise levels that contribute to healing environments and patient comfort.
Infusion pumps, rehabilitation equipment, and diagnostic instruments all operate more quietly with BLDC gear motors, reducing stress for patients and healthcare workers in busy clinical settings.
Without the electrical switching associated with brush contacts, BLDC motors generate less electromagnetic interference. This characteristic proves important for medical equipment where electromagnetic compatibility ensures proper operation of multiple devices in close proximity and prevents interference with sensitive diagnostic measurements.
Selecting appropriate BLDC gear motors requires systematic evaluation of application requirements and motor specifications.
Begin by documenting the specific performance parameters your application demands. Key considerations include required torque at the output shaft, necessary speed range, duty cycle characteristics, and any constraints on physical dimensions. Medical applications frequently require careful consideration of these parameters to ensure safe operation margins.
Calculate the power requirements by considering both the continuous operating point and any peak loads or transient conditions the system may encounter. Selecting motors with adequate power reserves prevents overheating and premature failure while avoiding excessive oversizing that increases cost and size unnecessarily.
Medical equipment may operate in challenging environmental conditions that influence motor selection. Temperature extremes, humidity, exposure to cleaning agents, and sterilization requirements all impact component suitability. I.CH offers variants designed for the demanding conditions present in medical environments.
Consider whether the application requires motors compatible with specific sterilization methods, including autoclaving, ethylene oxide treatment, or radiation sterilization. Motor materials and construction must withstand these processes without degradation.
The method used to control the BLDC gear motor affects both component selection and system-level design. Evaluate whether your application requires simple speed control, torque regulation, or precise position control. The motor's interface—whether providing PWM speed control, analog voltage control, or digital communication protocols—must integrate with your overall system architecture.
Consider the availability of driver electronics and whether your design requires integrated or separate controller solutions. Some BLDC gear motor suppliers, including I.CH, offer matched driver solutions that simplify system integration.
Medical devices must comply with applicable regulations before market release. Verify that your selected motor components carry appropriate certifications for your target markets. CE marking demonstrates compliance with European requirements, while FDA registration addresses United States market access. ISO13485 certification indicates quality management systems appropriate for medical device supply chains.
A BLDC motor uses electronic commutation rather than mechanical brushes to switch current through the windings. This eliminates the friction and wear associated with brush contact, resulting in higher efficiency, longer service life, and reduced maintenance requirements. Brushed motors are simpler and less expensive but suffer from lower efficiency and limited lifespan due to brush wear.
Medical equipment benefits from BLDC gear motors for several reasons: high efficiency reduces heat generation in patient-proximate applications; long service life minimizes maintenance requirements; quiet operation creates comfortable healthcare environments; precise control supports demanding medical procedures; and regulatory compliance simplifies device certification processes.
BLDC gear motors generally require minimal maintenance compared to brushed alternatives. Without brushes to replace, these motors operate for extended periods without intervention. However, periodic inspection of connections, bearings, and mounting integrity remains advisable for safety-critical medical applications.
Quality BLDC gear motors can operate for 20,000 hours or more under normal conditions. Actual lifespan depends on operating conditions including load, speed, temperature, and duty cycle. I.CH provides motors rated for 20,000+ hours of operation, significantly exceeding industry averages for competing products.
Yes, I.CH supports OEM and ODM customization services that enable manufacturers to obtain motors precisely matched to their application requirements. Customization options include mechanical dimensions, gear ratios, shaft configurations, electrical specifications, and connector interfaces.
Medical motor suppliers should hold relevant quality and safety certifications. Important certifications include ISO13485 for quality management systems, CE marking for European compliance, and FDA registration for United States market access. Additional certifications such as SGS and RoHS demonstrate environmental and safety compliance.
The medical device industry continues advancing toward more sophisticated, connected, and patient-centric solutions. These trends drive demand for improved motor technologies that can support next-generation healthcare innovations.
Medical equipment increasingly moves toward portable and wearable form factors that enable continuous monitoring and treatment outside traditional clinical settings. This miniaturization trend demands smaller, lighter, and more efficient motor solutions that can deliver adequate performance within severe space constraints.
I.CH's development of compact 28mm BLDC gear motors addresses this trend, providing manufacturers with options for space-constrained applications without sacrificing the reliability expected in medical equipment.
Modern medical devices increasingly connect to digital health platforms for remote monitoring, data analytics, and telemedicine support. Motor systems must integrate seamlessly with these connected ecosystems, providing diagnostic data and accepting control inputs through digital interfaces.
Smart motor technologies incorporating sensors and communication capabilities support this integration, enabling predictive maintenance, performance optimization, and comprehensive system health monitoring.
Advances in materials science continue improving motor performance and reliability. Improved magnetic materials increase power density, while better bearing materials extend service life under demanding conditions. Advanced manufacturing techniques ensure consistent quality at scale while enabling cost reductions that benefit healthcare system economics.
Medical device regulations continue evolving to address new technologies and safety concerns. Manufacturers must remain current with regulatory requirements while maintaining the consistency and documentation necessary for regulatory approval. Suppliers with demonstrated quality management systems and regulatory expertise simplify this process for equipment manufacturers.
The BLDC gear motor has established itself as an essential component in modern medical equipment, offering performance characteristics that address the demanding requirements of healthcare applications. From surgical robots to infusion pumps, these motors provide the precision, reliability, and efficiency that medical device manufacturers require.
Understanding the fundamental principles of BLDC gear motor operation—electronic commutation, gearbox function, and control methodology—enables informed component selection and optimized system design. The advantages these motors offer, including extended service life, precise control, quiet operation, and high efficiency, directly address the priorities of medical equipment developers.
When selecting BLDC gear motors for medical applications, comprehensive evaluation of performance requirements, environmental conditions, control system needs, and regulatory considerations ensures appropriate matches between components and applications. Working with suppliers offering appropriate certifications and customization capabilities simplifies the development process and supports successful market introduction.
I.CH brings eighteen years of specialized experience in micro gear motor development to the medical equipment market. Their comprehensive BLDC gear motor portfolio, covering sizes from 28mm to 86mm, combined with full OEM/ODM capabilities and medical-relevant certifications including FDA and ISO13485, positions them as capable partners for medical device manufacturers seeking reliable, high-performance motor solutions.
The continued evolution of medical technology will only increase the importance of advanced motor systems. As devices become more sophisticated, more portable, and more connected, the role of BLDC gear motors as enabling components will grow correspondingly, supporting innovations that improve patient care and healthcare system efficiency worldwide.
