DC geared motors are the core power components for modern automation, smart home devices, and portable industrial equipment. For engineers and global buyers, choosing between DC Spur Gear Motors and Planetary Gear Motors is the most critical selection decision. These two mainstream gear motor types differ greatly in structure, transmission performance, service life and application scenarios. Based on mature manufacturing experience, I.CH Motion presents this targeted buying guide to help you select the ideal DC gear motor efficiently and avoid performance mismatch and cost waste.
No matter spur or planetary DC gear motors, standardized sizing rules ensure stable equipment operation and avoid stalling or gear damage. All calculations must reserve a 1.5–2x safety margin for startup impact loads.
Step 1: Confirm output speed
Final Output Speed = Bare Motor Speed / Gear Reduction Ratio
Step 2: Calculate actual output torque
Output Torque = Motor Torque × Reduction Ratio × Transmission Efficiency
Spur gear motors feature 88%–96% efficiency for 1–2 stages and 75%–85% for multi-stage reduction. Planetary gear motors achieve 85%–92% efficiency for low stages and 60%–78% for 4–5 stages, with more stable load-bearing performance.
Step 3: Confirm working voltage and working mode
12V models fit battery-powered portable devices, while 24V versions suit fixed industrial automation equipment. Distinguish intermittent and continuous working conditions to match motor types reasonably.
DC spur gear motors adopt parallel straight-tooth gear meshing structure, with simple design and easy assembly. It is a cost-effective conventional transmission solution for light-load and intermittent operation scenarios.
Advantages: Low manufacturing and customization cost, simple maintenance, high efficiency for low-stage reduction, stable low-speed operation under light load.
Disadvantages: Single-tooth meshing limits torque output, large gear backlash, obvious operating noise, poor heat dissipation, and unsuitable for long-term continuous heavy-load work.
Planetary gear motors adopt a coaxial planetary transmission structure with multiple planetary gears sharing the load. It boasts ultra-high torque density and compact structure, becoming the preferred choice for high-precision and high-stability equipment.
Advantages: Multi-gear load sharing realizes 3–5 times higher torque than spur motors of the same volume, ultra-low backlash, high positioning accuracy, excellent heat dissipation, and support for long-term continuous operation and frequent startup shock loads.
Disadvantages: Complex structure, higher processing and assembly costs than spur gear motors.

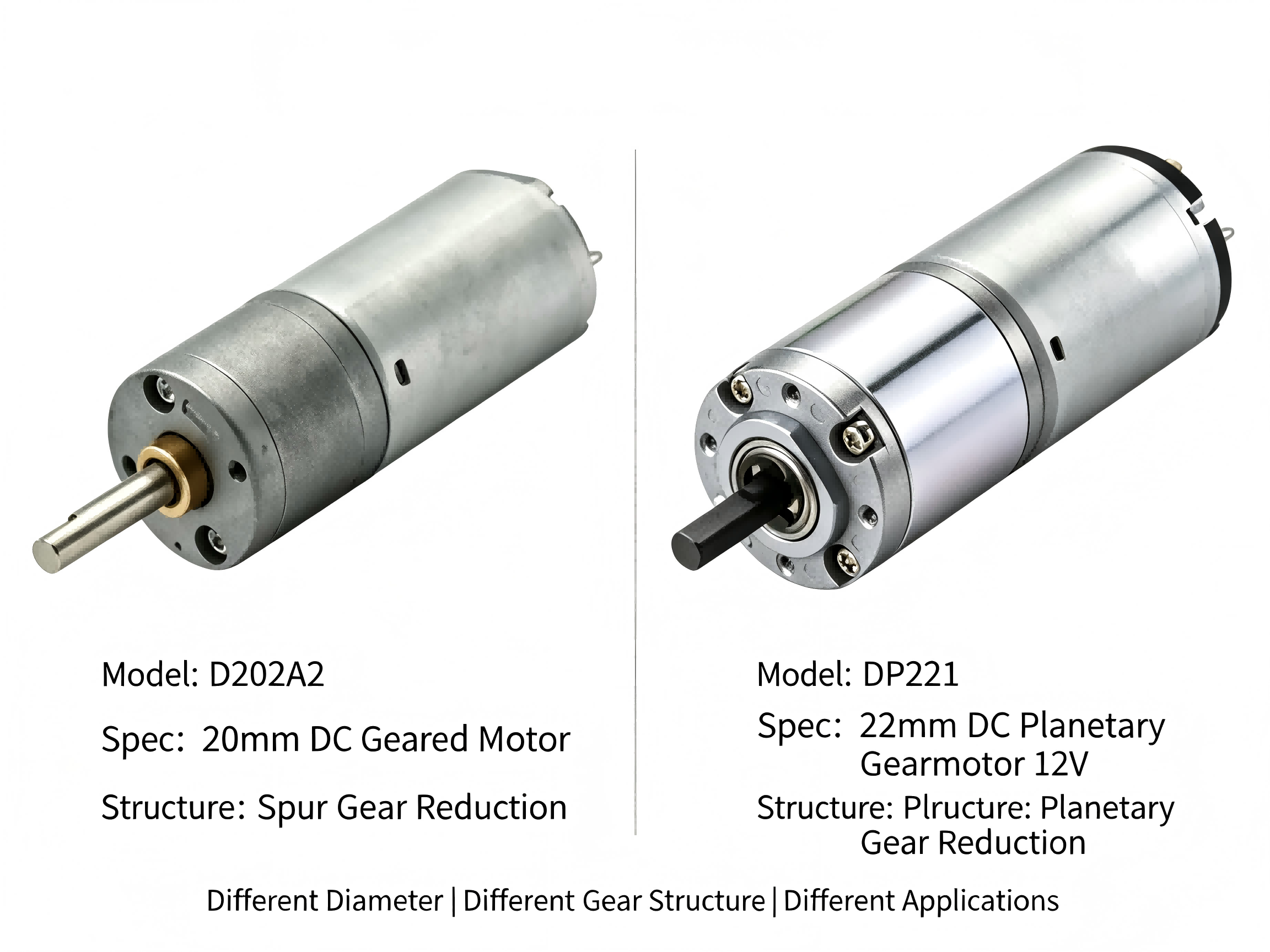

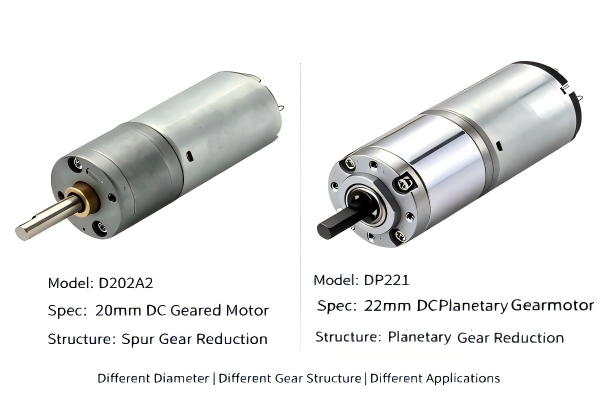

To help buyers intuitively distinguish practical differences between the two motor types, we select two classic miniature models from I.CH Motion’s mainstream lineup: 20mm DC Spur Gear Motor and 22mm DC Planetary Gear Motor. These two similar-sized micro motors are widely used in compact smart devices, representing the typical performance gap between spur and planetary structures.
20mm DC Spur Gear Motor
Suitable for ultra-compact equipment with strict space limits and intermittent working modes. It features simple structure, low comprehensive cost and stable light-load operation. It is the preferred cost-effective solution for mass-produced civilian small devices, including smart locks, miniature dispensers and small household actuators.
22mm DC Planetary Gear Motor
With a slightly larger outer diameter, it adopts multi-stage planetary transmission design. It delivers higher torque density, lower operation noise and better continuous operation stability. It is more suitable for mid-to-high-end compact devices that require long-term stable driving and precise output, such as automatic curtain actuators and portable medical miniature drive components.
The project has strict BOM budget control and requires large-scale mass production
Intermittent working cycle with short startup time and no long-term heavy load
No strict precision positioning requirements, allowing moderate backlash
Typical applications: small vending machines, smart lock actuators, household portable devices, auxiliary massage equipment
Limited installation space but requires high torque output
Equipment needs high-precision positioning and stable speed operation
Long-term continuous operation or frequent startup and shutdown working conditions
Typical applications: medical peristaltic pumps, precision automation equipment, robotic actuators, industrial electric valves
Working environment and duty cycle directly determine motor service life. Spur gear motors are suitable for normal temperature, intermittent working scenarios with low heat generation. For high-temperature, humid, dusty environments or 24-hour continuous operation, planetary gear motors with high-temperature resistant lubricating grease and better heat dissipation performance are more reliable.
I.CH Motion optimizes gear grease and sealing structure for both motor types. Custom IP54 sealing and extreme temperature adaptation (-40℃ to 100℃) are available to meet diverse industrial and civilian needs.
Both spur and planetary gear motors have brushed and brushless versions. Brushed models feature low cost, simple two-wire control and high startup torque, ideal for civilian mass products. Brushless gear motors realize maintenance-free long-term operation (10,000+ hours), no spark and lower noise, perfectly matching high-standard medical and precision automation equipment.
Q1: Can spur gear motors replace planetary gear motors directly?
A: No. The two motors differ in size, torque density and backlash performance. Direct replacement will cause insufficient power or positioning deviation. I.CH Motion provides free model matching services.
Q2: What causes motor stalling damage?
A: Long-term stalling leads to overcurrent and overheating. It is recommended to reserve sufficient torque margin or install current-limiting protection circuits.
Q3: Does I.CH Motion support customization?
A: Yes. We provide professional OEM/ODM customization for both DC spur and planetary gear motors, including reduction ratio, shaft size, voltage and structural optimization.
As a professional manufacturer of DC gear motors, I.CH Motion focuses on spur and planetary gear motor R&D and production. All products pass CE, RoHS and ISO quality certifications, with stable performance and flexible customization capabilities. We provide one-stop solutions from sample testing to mass production, with 24-hour professional technical support and global after-sales service, serving global industrial and smart device customers.
Contact I.CH Motion to obtain targeted spur or planetary gear motor selection schemes and free quotations for your project requirements.
