How to Specify Compact High Reduction Planetary DC Gear Motors for Water Analysis Sampling Instrument Actuation

For engineers designing automated water sampling analytical instruments, the actuation subsystem that squeezes silicone tubing directly determines sampling repeatability, long term field stability and overall equipment service life. Many purchasing teams focus purely on motor voltage and torque numbers, while overlooking mechanical holding performance, gearbox material constraints and shaft interface compatibility. In field deployment, a poorly specified geared motor can cause tube squeeze position drift once power is removed, resulting in inconsistent liquid sampling volume and invalid environmental monitoring measurement data. This article breaks down practical specification workflows, common engineering pitfalls, and validation best practice for compact planetary DC geared motors deployed in silicone tube compression mechanisms.

The core functional logic of this instrument subsystem is straightforward: the geared motor drives a mechanical cam or roller to compress flexible silicone tubing, generating controlled peristaltic style fluid displacement for water sample collection. Operating speed is relatively unimportant for many sampling cycles. By contrast, two requirements dominate technical decision making: sufficient continuous torque to squeeze elastic silicone material, plus enough mechanical resistance to prevent output shaft reverse rotation immediately after power supply cuts off. Environmental monitoring instruments are frequently installed in remote field stations. There is no continuous closed loop electrical braking to maintain mechanical position; the drive unit itself must resist back driving force originating from the rebounding silicone tube.

Table 1 below sorts core specification categories, separating “hard must have constraints” and “application dependent adjustable parameters”, summarized from real world industrial instrument inquiry cases.

When submitting your formal inquiry, engineers should deliver hard constraints clearly. Adjustable parameters can be open for manufacturer’s engineering optimization suggestions. A frequent mistake is locking one exact gear ratio value without checking real world gear stage manufacturability. Multi stage planetary gearboxes only support discrete ratio options. If your target requirement lies inside 300 500 reduction range, the motion solution supplier may recommend the nearest realizable ratio variant and deliver detailed mechanical drawings for cross check before sampling begins.

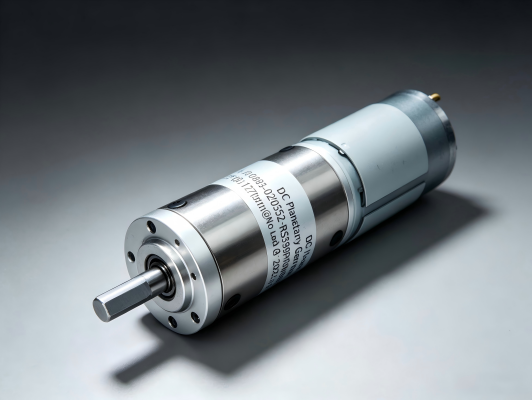

Gearbox material selection represents another high impact decision point. Two mainstream gear material options exist for compact planetary gearheads: all metal gear sets and composite plastic based gear sets.

· All metal gear sets: Deliver superior torque bearing capacity, good anti wear performance under cyclic tube squeezing load, fit for instrument mass production with thousands unit annual consumption. Higher unit cost is the main trade off.

· Plastic gear sets: Cost competitive for light load consumer devices. They are not suitable for repeated static squeezing force from elastic silicone tubing; plastic teeth risk creep deformation under sustained static torque load.

Even high ratio multi stage planetary gearboxes are not “natively self locking”. Self locking is an inherent mechanical feature of worm gear transmission, relying on thread angle friction geometry. Planetary systems raise anti back driving resistance by accumulated multi stage friction losses, yet holding capability needs physical bench validation under your exact silicone tube spring back load. You cannot rely only on datasheet text descriptions for position holding performance.

Project workflow for instrument motor procurement should follow this practical sequence:

1. Submit full specification boundary conditions; share existing legacy motor field performance feedback if available.

2. Accept supplier’s request for application reference photos, sketches or short video clips to understand mounting and load cycle.

3. Receive drawing review copy plus dual scenario quotation (prototype sample batch plus forecast annual mass production quantity).

4. Give formal written confirmation on drawing and commercial offer.

5. Launch sample manufacturing for lab bench validation. Typical sample quantity for initial functional testing falls between 3 to 5 units.

6. Complete real load testing with actual silicone tube material; verify position holding status after power off.

7. Move forward to mass production release only after sample validation passes.

Too many projects skip step 6, relying only on static datasheet parameters. Once hardware ships to field sites, subtle shaft drift issues appear under real elastic material load, creating expensive instrument rework and after sales trouble. Instrument OEM teams must replicate real world mechanical load conditions inside lab testing environment, rather than testing motor under no load condition.

Cost management should distinguish prototype sample cost versus mass production pricing. Sample batches include engineering setup charges for drawing adaptation, custom shaft processing and small batch gear box assembly. Unit price for 3 5 prototype samples will naturally sit higher than per unit price for thousands scale yearly serial orders. Requesting combined quotation covering both sample and mass production volumes enables total cost forecasting for the full product lifecycle.

In summary, specifying planetary DC gear motor for water sampling instruments requires balancing dimensional envelope, torque capacity, gear material choice, shaft interface geometry and practical anti back driving testing. Do not treat gear motor selection as purely spreadsheet based parameter matching. Application specific mechanical load from compressed silicone tubing shapes real world motor reliability. Close technical communication with motion solution vendors throughout drawing review and sample validation phases mitigates late stage redesign risk for environmental analytical equipment.
