This guide breaks down the core distinctions between spur gearboxes and planetary gearboxes from I.CH Motion, covering precision, torque density, efficiency, cost, noise, and real-world industrial use cases. Both devices deliver speed reduction and torque amplification, but their internal gear layouts create massive gaps in performance, installation space, and long-term operational value. Designers, automation engineers, and machinery manufacturers can use this comparison to pick the optimal reducer for budget, precision, and space constraints.
Backlash (gear tooth play) is the most defining gap between the two reducer types.

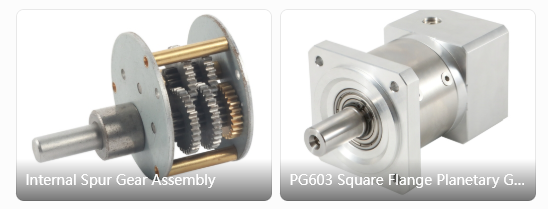

I.CH planetary gearboxes adopt ground ISO Class 5 gears with ultra-tight machining tolerances; high-precision PG603 square flange models achieve ≤3 arcmin backlash for repeatable positioning. Multi-planet load sharing eliminates free play during forward/reverse rotation, critical for CNC, robotics and servo motion control.
Standard spur gearboxes feature simple parallel spur gear pairs with looser manufacturing clearances. Typical backlash ranges from 8–18 arcminutes. They cannot support micro-positioning tasks and only fit low-accuracy general transmission such as home appliances and light conveyors.
Spur gearboxes use two parallel spur gears mounted on separate shafts, creating an offset parallel-axis layout. To reach high torque, the housing width and diameter must expand, requiring larger installation footprints. I.CH offers 37mm–48mm pear-shaped spur gearbox variants with customizable straight output shafts for open-space equipment.
Planetary gearboxes feature a coaxial sun-planet-ring gear layout: multiple planet gears evenly share load around the central sun gear. This concentric design delivers far higher torque density within a compact cylindrical housing. Sizes cover miniature 8mm up to industrial 60mm square flange PG603 models, perfect for tight machinery enclosures and servo motor integration.
Single-stage I.CH planetary reducers hit ≥95% efficiency; two-stage units maintain ≥92%. Load split across multiple meshing gear teeth minimizes friction loss and heat buildup, even under sustained heavy torque. Lifetime lubrication grease reduces energy waste during continuous 24-hour operation.
Spur gearboxes deliver decent efficiency (88%–93%) at light loads, but efficiency drops sharply under heavy shock torque. Power transfers through only one single gear mesh point, generating more friction and thermal loss during long-run production cycles.
Planetary systems distribute force across 3–4 planet gears simultaneously, delivering superior shock load resistance and high continuous torque. I.CH PG603 supports 15N.m rated torque with dual large-span output bearings to boost radial/axial load capacity (max radial load ≤200N, axial ≤100N). This makes planetary units ideal for dynamic variable-load automation.
Spur gearboxes concentrate all driving force on one gear tooth pair. While durable for steady low-shock loads, they risk tooth deformation under sudden torque spikes. They are limited to moderate, stable torque applications without frequent direction switching.
Precision ground planetary gears with tooth profile modification ensure smooth, quiet running. Multi-point meshing cancels out vibration harmonics; IP65 sealed PG603 units operate with minimal noise for medical devices, semiconductor and lab automation.
Spur gears engage fully along the entire tooth width at once, generating sharp, loud mechanical hum and noticeable vibration. Looser tolerances amplify noise at high rotational speeds, making them unsuitable for low-noise factory or laboratory environments.
I.CH planetary gearboxes use alloy steel gears with carburizing and quenching heat treatment, paired with reinforced double-support output bearings. Even with daily variable loads, wear rates stay low, and lifetime lubrication removes routine oil change maintenance.
Spur gearboxes use simpler steel processing and single-sided bearing support. They offer reliable lifespan for light-duty static operation but wear faster under frequent start-stop cycles or reverse rotation. Maintenance is basic yet more frequent for high-cycle equipment.
Spur gearboxes carry lower manufacturing costs due to uncomplicated two-gear parallel construction, making them a budget-friendly pick for low-end mass equipment such as power tools and household smart devices.
Planetary gearboxes demand complex multi-component precision machining (sun gear, multiple planet gears, internal ring gear), pushing initial purchase price higher. However, superior efficiency, low downtime, and longer service life deliver stronger long-term ROI for high-value precision automation lines, where equipment downtime creates major production losses.
Home appliances, small power tools, low-speed conveyor lines, simple agricultural auxiliary machinery, basic smart home sunshades, and low-precision general automation with limited positioning requirements. I.CH 37mm/48mm spur gearbox series supports custom shaft lengths for these cost-sensitive devices.
Servo & BLDC motor matching, CNC machine tools, industrial robot joints, medical automation, semiconductor production, printing equipment, aerospace accessories, automated inspection machines, AGVs, and precision packaging lines. Miniature 8–42mm planetary models fit compact smart equipment; 60mm square flange PG603 serves heavy-duty servo automation.
Pick a spur gearbox if you need low upfront cost, simple maintenance, parallel shaft output, moderate steady torque, and low-precision general transmission.
Pick an I.CH planetary gearbox if you require ultra-low backlash positioning, compact coaxial mounting, high torque density, quiet vibration-free operation, high reduction ratios (10:1 up to 100:1), or matching with servo/brushless DC motors.
Spur gearboxes excel at economical, straightforward light-duty transmission with parallel shaft layout. Planetary gearboxes from I.CH Motion lead in precision, compact size, high torque density and smooth low-noise performance for advanced industrial automation. When evaluating reducers, weigh not only initial price but also positioning accuracy, space limits, continuous load demands, noise standards, and long-term maintenance expenses to maximize your machine’s overall efficiency and uptime.
Spur Gearbox Series: https://www.ichmotion.com/Spur-Gearbox-pl6071736.html
Planetary Gearbox Series (including PG603): https://www.ichmotion.com/Planetary-Gearbox-pl6971736.html
Q: Can spur gearboxes replace planetary gearboxes for servo motors?
A: No. Servo systems demand ≤5 arcmin low backlash and high repeatability, which standard spur gearboxes cannot achieve. I.CH square flange planetary reducers are purpose-built for servo motor matching.
Q: Are planetary gearboxes maintenance-free?
A: Yes. Our planetary units adopt permanent lifetime lubrication grease and IP65 full sealing, eliminating regular refueling maintenance.
Q: Can I customize spur or planetary gearbox dimensions?
A: I.CH Motion supports full custom service for both lines, including shaft diameter, reduction ratio, flange size, torque rating and housing length to fit unique motor and machine designs.
