Pear Shaped Gearbox Applications in Compact Systems: Complete Guide for Engineers

Compact system design presents ongoing challenges for engineers across industries, from consumer electronics to medical devices and industrial automation. The pear shaped gearbox has emerged as a critical enabling technology, allowing mechanical power transmission in applications where traditional cylindrical gearboxes simply won't fit. This comprehensive guide explores the diverse applications, technical advantages, and implementation considerations for compact gearbox solutions. Understanding the capabilities of modern ovoid gearbox technology helps engineers unlock design possibilities that conventional approaches cannot achieve.

Modern product development increasingly demands that every component deliver maximum performance within minimum volume. This constraint affects gearbox selection fundamentally, pushing designers beyond conventional solutions toward purpose-built compact technologies. The compact spur gearbox category has expanded significantly as manufacturers recognize the demand for smaller, more efficient power transmission components. Understanding where and how compact gearboxes excel helps engineers make informed component selections that ultimately determine product success.

Why Compact Systems Need Specialized Gearbox Solutions

The relentless trend toward product miniaturization creates cascading challenges for mechanical subsystem design. As overall product dimensions shrink, internal components must share increasingly limited volume while maintaining or improving performance capabilities. This tension between size reduction and functional requirements makes component selection more critical than ever. The ovoid gearbox design addresses these challenges through innovative engineering that reimagines traditional concepts.

Traditional gearbox designs assume abundant installation space as a baseline condition. Standard cylindrical housings evolved for manufacturing simplicity and mechanical robustness, not spatial efficiency. When designers attempt to force these conventional components into compact assemblies, they encounter mounting difficulties, thermal management problems, and interference conflicts that complicate development timelines and increase product cost. The parallel shaft gearbox arrangement, while proven and reliable, often requires more installation volume than modern products can accommodate.

The 12.5mm length specification achievable with modern compact gearboxes represents a fundamental rethinking of gearbox architecture. Rather than scaling down conventional designs incrementally, engineers developed new housing geometries and internal layouts specifically optimized for minimal volume. This approach delivers genuine space savings rather than marginally improved dimensions. Premium pear shaped gearbox models achieve this miniaturization while maintaining torque ratings that rival much larger conventional units.

Parallel shaft gearbox arrangements remain common even in compact implementations, as they facilitate straightforward integration with standardized motor form factors. However, the housing geometry surrounding these parallel shafts distinguishes premium compact solutions from merely small conventional gearboxes. The innovative approaches employed in pear shaped designs achieve miniaturization without compromising the reliability or performance that industrial applications demand.

Robotics and Automation Applications

Industrial robots and collaborative robots increasingly operate in confined workspaces that demand compact actuation components. Joint assemblies, end-effectors, and tool changers all benefit from miniaturized drive components that enable more fluid mechanical designs without sacrificing torque transmission capability. The compact spur gearbox variants developed for robotics applications balance the demanding performance requirements with the spatial constraints these systems impose.

The compact footprint of pear shaped gearboxes allows robot designers to position joints closer together, improving arm dexterity and reducing the overall envelope of robotic assemblies. This advantage proves particularly valuable in collaborative robot applications where robots must work safely alongside human operators in shared workspaces. Smaller robot dimensions reduce collision risks and enable deployment in facilities where larger industrial robots would prove impractical. The ovoid gearbox geometry contributes significantly to these space efficiency advantages.

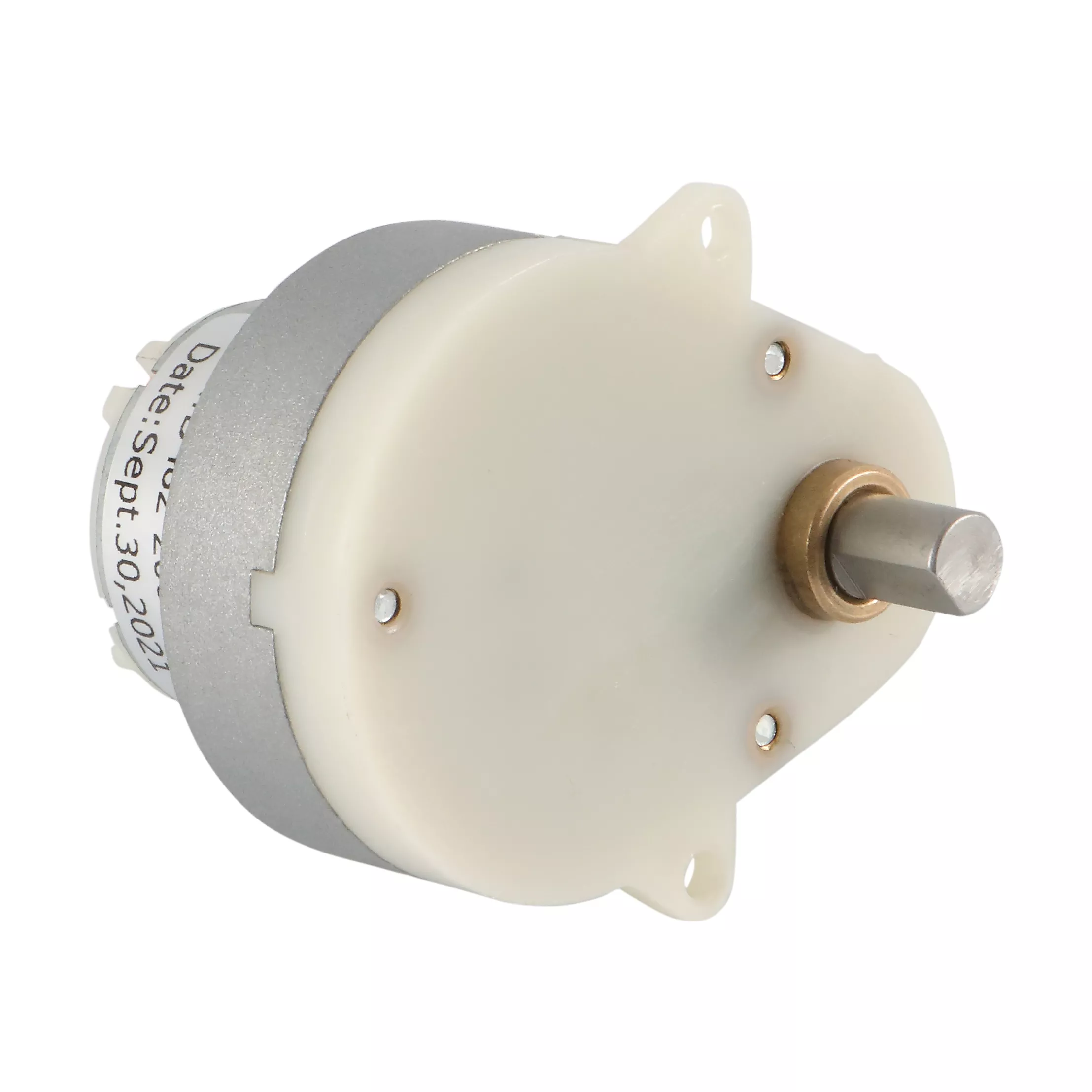

The integration of I.CH's pear shaped gearbox with compact DC motors creates actuation packages ideal for robotic joint drives. These combinations deliver the torque and precision required for smooth articulated motion while fitting within the tight dimensional budgets that modern robot designs impose. Repeatable positioning accuracy depends on minimal backlash, a performance characteristic that quality compact gearboxes address through precision manufacturing techniques.

Automated assembly systems also benefit substantially from compact gearbox technology. Small part handling, precision placement, and inspection systems all require accurate motion control within constrained work envelopes. The reliability of quality compact gearboxes supports high-throughput production requirements while their small size enables flexible system layouts that adapt to varying product geometries.

Medical Device Implementations

Medical equipment designers face some of the most demanding requirements for compact, quiet, and reliable mechanical components. Patient-facing devices must operate safely, generate minimal noise that could disturb patients or medical staff, and deliver consistent performance throughout extended service periods. These requirements align closely with the inherent advantages of ovoid gearbox technology. The compact spur gearbox designs developed for medical applications undergo rigorous validation to ensure patient safety. Premium medical-grade pear shaped gearbox solutions provide the reliability that healthcare applications demand.

Diagnostic equipment including imaging systems, patient monitoring devices, and laboratory analysis instruments benefit from the quiet operation that compact gearboxes provide. Reduced noise improves the clinical environment and may reduce patient anxiety during diagnostic procedures. Consistent torque transmission ensures accurate sample positioning and measurement repeatability that directly impacts diagnostic reliability. Premium pear shaped gearbox implementations deliver this consistency throughout extended operational periods.

The combination of compact dimensions and smooth operation makes these gearboxes suitable for implantable device applications and wearable medical technology. While not all medical gearboxes meet the stringent requirements for permanent implantation, the compact form factor enables design of less intrusive external medical devices that improve patient comfort and compliance with treatment protocols. The parallel shaft gearbox configuration within these compact packages maintains reliable power transmission despite miniaturized dimensions.

Infusion pumps, surgical tools, and rehabilitation equipment represent additional medical applications where space constraints combine with reliability requirements. The extended maintenance intervals possible with quality compact gearboxes reduce service demands for medical equipment, minimizing downtime and supporting continuous availability that healthcare environments require. I.CH's commitment to quality ensures their ovoid gearbox products meet the demanding standards medical applications require.

Laboratory Automation Systems

Modern laboratory operations increasingly rely on automated systems for sample handling, processing, and analysis. These automation platforms must accommodate numerous discrete components within limited bench space while maintaining the precision and repeatability that scientific applications demand. Compact gearbox technology enables denser instrument arrangements that maximize laboratory productivity per square foot of valuable space. The compact spur gearbox category has proven essential for achieving these space efficiency objectives in laboratory automation. Premium ovoid gearbox designs provide the precision and reliability that laboratory automation demands.

Automated pipetting systems exemplify the demanding requirements that laboratory automation places on mechanical components. Precise liquid handling requires accurate positioning with minimal hysteresis, qualities that low-backlash compact gearboxes provide. The repeated motions involved in high-throughput screening and diagnostic testing demand components that withstand millions of cycles without performance degradation. The pear shaped gearbox design provides the durability required for these demanding applications.

Sample transport systems within automated laboratories benefit from the reliability and compactness of modern gearboxes. Conveyor drives, divert mechanisms, and elevator systems all require dependable torque transmission within space-constrained infrastructure. The thermal efficiency of oval housing designs supports continuous operation without excessive heat generation that could affect sensitive nearby samples or reagents. This thermal management capability distinguishes quality ovoid gearbox designs from conventional alternatives.

Laboratory robots handling specimen processing, culture maintenance, and analytical procedures depend on compact actuation components throughout their mechanical architectures. From bulk liquid handling platforms to specialized single-workstation systems, these instruments share requirements for precision, reliability, and minimal space consumption that pear shaped gearbox technology addresses effectively. The 48mm DC geared motor combinations available from I.CH simplify integration for these laboratory automation systems.

Consumer Electronics Manufacturing

The consumer electronics industry drives remarkable innovation in component miniaturization, establishing size benchmarks that influence expectations across all product categories. Assembly equipment for compact electronic devices must accommodate the increasingly small form factors of the products they manufacture, creating ongoing demand for miniaturized mechanical components. The compact spur gearbox segment has grown substantially to meet these demanding requirements.

Surface mount technology assembly lines, component placement systems, and final assembly stations all require precise motion control within confined work volumes. Compact gearboxes enable the fine positioning accuracy that modern electronics assembly demands while fitting between and around product fixtures and handling mechanisms that share limited workspace. The ovoid gearbox design provides these space efficiency advantages without sacrificing the precision that electronics manufacturing requires.

The volume manufacturing economics of consumer electronics depend on high throughput rates that only reliable equipment can achieve. Gearbox failures cause production stoppages with costly consequences, making reliability a primary selection criterion for assembly equipment gearboxes. Quality compact designs deliver the durability required for round-the-clock manufacturing operations, with premium pear shaped gearbox products providing exceptional service life in demanding production environments.

Testing and inspection equipment for compact electronic devices presents similar spatial challenges. Automated optical inspection, functional testing, and calibration systems must access product features at increasingly small scales. The compact dimensions of modern gearboxes enable probe positioning and component manipulation systems that reach into tight product geometries without sacrificing positioning accuracy or throughput capability. Premium compact spur gearbox solutions provide the precision and reliability that electronics manufacturing demands.

Aerospace and Defense Systems

Aerospace applications impose unique demands on mechanical components, including weight minimization, vibration tolerance, and proven reliability under demanding environmental conditions. Every gram saved in component weight translates directly to improved fuel efficiency in aircraft or extended mission duration in spacecraft and drones. The compact spur gearbox options available for aerospace applications help achieve these demanding weight targets. Premium ovoid gearbox technology addresses the stringent requirements of aerospace applications.

The lightweight construction achievable with pear shaped gearbox designs provides clear advantages in weight-sensitive aerospace applications. Reduced material consumption combined with optimized structural design delivers gearboxes that meet demanding strength requirements while minimizing mass. This weight efficiency extends battery life in electric aircraft and improves range performance across all aircraft categories. The ovoid gearbox architecture supports these weight reduction objectives through innovative design approaches.

Avionic control systems, cabin comfort controls, and in-flight entertainment systems all incorporate actuation mechanisms requiring compact reliable gearboxes. Satellite systems and space probes face even more stringent constraints on size and mass, making compact gearbox technology essential for achieving mission objectives within launch vehicle payload limitations. Premium manufacturers like I.CH offer ovoid gearbox products specifically designed for the demanding aerospace environment.

Military systems including communications equipment, targeting systems, and portable defense devices benefit from compact components that enable lighter, more portable equipment configurations. Reduced soldier load improves operational effectiveness, while compact vehicle-mounted equipment increases available space for other mission-critical systems. The parallel shaft gearbox configuration in compact formats maintains proven reliability while meeting stringent size constraints.

Portable and Wearable Technology

The consumer market for portable devices continues expanding, with products ranging from fitness trackers to portable medical monitors and handheld tools. These battery-powered products demand efficient mechanical components that maximize performance while conserving limited electrical energy. Compact gearboxes contribute to overall product efficiency through minimal friction losses and optimized power transmission. The compact spur gearbox segment addresses these efficiency requirements effectively.

Wearable fitness devices incorporate haptic feedback mechanisms that benefit from small, quiet gearboxes capable of generating perceptible vibration from minimal electrical input. The efficiency advantages of quality compact designs extend battery life in these energy-constrained products while the small size enables comfortable wearable form factors. The pear shaped gearbox form factor proves particularly suitable for wearable applications where space and weight constraints are paramount. Premium compact spur gearbox solutions address the unique requirements of wearable technology applications.

Portable power tools including cordless screwdrivers, compact routers, and handheld cleaning devices require gearboxes that transform high-speed motor output into useful torque for end applications. The reduction ratios available in compact gearbox designs, spanning from 1:10 to 1:3375, enable matching motor characteristics to diverse application requirements within unified product platforms. Premium ovoid gearbox designs provide the torque capacity and durability these demanding applications require.

The 48mm DC geared motor combinations offered by I.CH demonstrate how integrated motor-gearbox solutions simplify portable device development. Pre-matched combinations reduce engineering effort while ensuring optimal performance characteristics for battery-powered applications where efficiency directly impacts user experience. These compact spur gearbox and motor packages represent the state of the art in portable actuation technology.

Industrial Control and Instrumentation

Process control systems, industrial instrumentation, and manufacturing equipment incorporate numerous actuation points where compact gearbox technology provides meaningful advantages. From valve actuators to positioning systems, these applications share requirements for reliable operation within equipment envelopes shaped by other considerations. The compact spur gearbox offerings in this segment address the diverse requirements of industrial automation.

Process automation often involves actuation points distributed throughout manufacturing facilities, with space availability varying significantly between installation locations. Compact gearboxes accommodate the variable conditions encountered in industrial environments, enabling consistent component selection across diverse installation scenarios. The standardization benefits simplify inventory management and maintenance procedures. Premium pear shaped gearbox products provide the reliability industrial customers demand.

Precision instrumentation including scientific measuring equipment, optical positioning systems, and calibration standards require motion control components that maintain accuracy throughout extended operating periods. The consistent torque transmission and minimal backlash of quality compact gearboxes support the measurement precision that instrumentation applications demand. The parallel shaft gearbox arrangement maintains proven reliability while meeting the compact dimensional requirements of precision instruments.

Industrial printing and marking equipment represents another application category where compact actuation components enable improved product designs. Label printers, coding systems, and industrial marking equipment require precise substrate handling within confined equipment housings. Compact gearboxes provide the positioning accuracy these applications need while fitting within the thin profile requirements of modern industrial equipment. The ovoid gearbox design contributes significantly to achieving these demanding form factors. Premium compact spur gearbox solutions address the precision requirements of industrial printing applications.

Technical Specifications for Compact Applications

Understanding the performance boundaries of compact gearbox technology helps engineers specify appropriate components for their applications. The following specifications represent typical capabilities of quality compact gearboxes suitable for demanding applications. These ovoid gearbox specifications demonstrate how modern engineering achieves remarkable performance in miniaturized packages.

The maximum torque specification of 30kg.cm achievable with modern compact designs demonstrates how far gearbox technology has progressed. Engineers no longer must compromise on torque capacity to achieve space efficiency, as premium compact designs deliver robust performance within minimal volumes. The ovoid gearbox approach proves that miniaturization and high performance can coexist effectively.

The broad reduction ratio range enables a single gearbox platform to serve diverse application requirements. From high-speed positioning to high-torque actuation, the appropriate ratio selection tailors performance to specific end-use requirements. This flexibility simplifies inventory management and enables platform-based product development strategies that leverage the versatility of premium pear shaped gearbox technology.

Integration Best Practices

Successful implementation of compact gearboxes requires attention to mounting, alignment, and environmental considerations that affect long-term performance. Understanding these integration requirements helps engineers avoid common pitfalls that compromise gearbox performance or reliability. The compact spur gearbox category includes detailed integration guidelines developed through extensive field experience.

Motor integration represents the most common gearbox installation scenario, particularly for compact applications. Quality manufacturers provide standardized mounting interfaces that ensure precise alignment between motor output shafts and gearbox input stages. This precision eliminates coupling misalignment that causes premature wear and reduced efficiency. The 48mm DC geared motor combinations from I.CH exemplify these optimized integration approaches for compact spur gearbox applications.

When integrating pear shaped gearboxes into custom assemblies, ensure adequate clearance around the gearbox housing for both installation access and thermal dissipation. The curved surfaces of oval gearboxes require less mounting depth than cylindrical alternatives but may require additional lateral clearance in confined orientations. Careful attention to these clearance requirements during design prevents assembly difficulties and ensures reliable long-term performance of the ovoid gearbox implementation.

Lubrication requirements for sealed compact gearboxes typically involve factory-filled grease that provides adequate service life under normal operating conditions. Applications involving extreme temperatures, aggressive chemicals, or washdown environments may require specialized sealing or lubrication strategies that quality manufacturers can provide upon request. The robust construction of premium ovoid gearbox products ensures reliable operation across diverse environmental conditions.

Selecting the Right Compact Gearbox

Component selection involves balancing multiple factors including performance requirements, space constraints, budget limitations, and environmental conditions. Understanding these trade-offs helps engineers specify optimal compact gearbox solutions for their applications. The parallel shaft gearbox configuration in compact formats provides proven reliability with space efficiency.

Begin specification by clearly defining performance requirements including torque, speed, and positional accuracy needs. These fundamental parameters establish minimum acceptable gearbox capabilities that narrow the field of potential solutions. Always include safety margins in torque and speed specifications to ensure reliable operation under variable loading conditions. Premium pear shaped gearbox products provide specification headroom that ensures consistent performance.

Space constraints provide the primary motivation for compact gearbox selection, making dimensional requirements the next specification priority. Document maximum acceptable dimensions in all three axes, considering both the gearbox envelope and required clearances for installation and maintenance access. The unique geometry of ovoid designs may enable dimensional optimization in specific orientations that cylindrical alternatives cannot achieve.

Environmental conditions including temperature extremes, humidity, vibration, and contamination exposure influence both gearbox selection and necessary protective measures. Quality manufacturers specify operating ranges and environmental ratings that guide appropriate selection for challenging applications. The compact spur gearbox options from premium manufacturers include models optimized for demanding industrial environments.

I.CH's application engineering support assists customers in navigating specification complexity, ensuring selected components meet or exceed application requirements while minimizing unnecessary cost or performance margin. This support proves particularly valuable for applications with challenging requirements that push against standard specification boundaries. Premium ovoid gearbox products benefit from this comprehensive engineering support throughout the selection and implementation process.

Future Trends in Compact Drive Technology

Continuing advancement in materials, manufacturing processes, and design optimization promises further improvements in compact gearbox capabilities. Understanding emerging trends helps engineers anticipate technology evolution that may influence current design decisions. The compact spur gearbox category continues advancing rapidly as manufacturers invest in research and development.

Additive manufacturing techniques increasingly enable gearbox designs that were previously impossible to produce economically. Complex internal geometries optimized for performance rather than manufacturing constraints become feasible as 3D printing technologies mature. These capabilities may enable further miniaturization of ovoid gearbox designs while maintaining or improving torque capacity. Premium manufacturers like I.CH are exploring these advanced manufacturing approaches.

New material composites offer weight reduction opportunities without sacrificing strength or durability. Carbon fiber reinforced housings, advanced bearing materials, and improved gear steels contribute to ongoing performance improvements in compact designs. The parallel shaft gearbox architecture benefits from these material advancements while maintaining the proven reliability that industrial customers require.

Integration trends point toward increasing adoption of pre-matched motor-gearbox combinations that simplify component selection and ensure optimal system performance. These integrated solutions reduce engineering effort while improving the precision matching between motor and gearbox characteristics that maximize overall system efficiency. The 48mm DC geared motor platform exemplifies this integration approach for compact applications.

FAQ

What types of applications benefit most from pear shaped gearboxes?

Applications with significant space constraints benefit most from compact gearboxes, including robotics joints, medical devices, portable electronics, aerospace systems, and laboratory automation equipment. Any application where dimensional limitations prevent conventional gearbox installation may be suitable for pear shaped solutions. The versatility of the pear shaped gearbox design enables adoption across diverse industry segments.

What torque and reduction ratio options are available in compact gearboxes?

Quality compact gearboxes offer torque capacity up to 30kg.cm and reduction ratios spanning from 1:10 to 1:3375. This comprehensive range accommodates diverse application requirements from high-speed positioning to high-torque actuation. The wide ratio range eliminates the need for multiple gearbox platforms when standardizing on compact spur gearbox solutions.

How does the 12.5mm length specification compare to standard gearboxes?

The 12.5mm length represents significant miniaturization compared to conventional gearboxes that typically span 25mm to 50mm or longer. This compact form factor enables integration into assemblies where standard components would simply not fit. The achievement of maintaining 30kg.cm torque within this compact envelope represents engineering excellence in ovoid gearbox development.

What motor sizes integrate with compact pear shaped gearboxes?

The 48mm DC motor form factor represents a common integration size for compact gearboxes. I.CH offers matched motor-gearbox combinations that ensure optimal alignment and performance without custom integration engineering. These 48mm DC geared motor packages simplify the component selection process for engineers designing compact actuation systems.

How reliable are compact gearboxes for continuous duty applications?

Quality compact gearboxes from established manufacturers provide reliable continuous duty operation with maintenance intervals exceeding 5000 hours under normal conditions. The thermal efficiency of oval housing designs supports sustained operation without overheating. Premium parallel shaft gearbox designs maintain consistent performance throughout extended service periods.

What noise levels can I expect from pear shaped gearboxes?

Premium compact gearboxes operate at noise levels significantly below conventional alternatives, typically below 45dB at rated load. This quiet operation makes them suitable for noise-sensitive applications including medical equipment and laboratory automation. The ovoid gearbox design contributes to this acoustic advantage through vibration-damping geometry.

Can compact gearboxes handle high starting loads?

Compact gearboxes handle starting loads effectively when properly sized for application requirements. The torque capacity specifications for quality compact designs accommodate typical starting and peak loads encountered in most industrial and consumer applications. Proper sizing ensures reliable operation throughout the gearbox service life.

What environmental ratings should I consider for industrial applications?

Industrial applications may require consideration of operating temperature ranges, moisture resistance, chemical exposure tolerance, and vibration resistance. Quality manufacturers provide environmental specifications that guide appropriate selection for challenging operating conditions. The robust construction of quality ovoid gearboxes withstands demanding industrial environments.
