Spur Gears Vs Helical Gears: How Much Quieter Are Helical Gearboxes?

For mechanical engineers designing compact DC gear motors, low-noise operation has become one of the most valued performance benchmarks in modern intelligent equipment design. Gearbox noise directly influences user experience and operational stability across smart home actuators, portable medical devices, office automation systems, and lightweight robotic joints. Industry technical resources universally confirm that helical gear configurations deliver far smoother and quieter operation than traditional spur gears. Even so, many product designers lack clear, application-oriented cognition of the actual acoustic differences between the two gear structures. A core question frequently raised in mechanical design scenarios remains: when gear motors adopt identical materials, dimensional specifications, manufacturing tolerances and load conditions, what practical noise advantages do helical gears bring? Additionally, whether the quiet operating characteristics of helical gears only stand out under high-speed running conditions requires in-depth industry clarification.

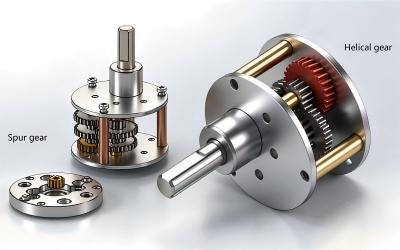

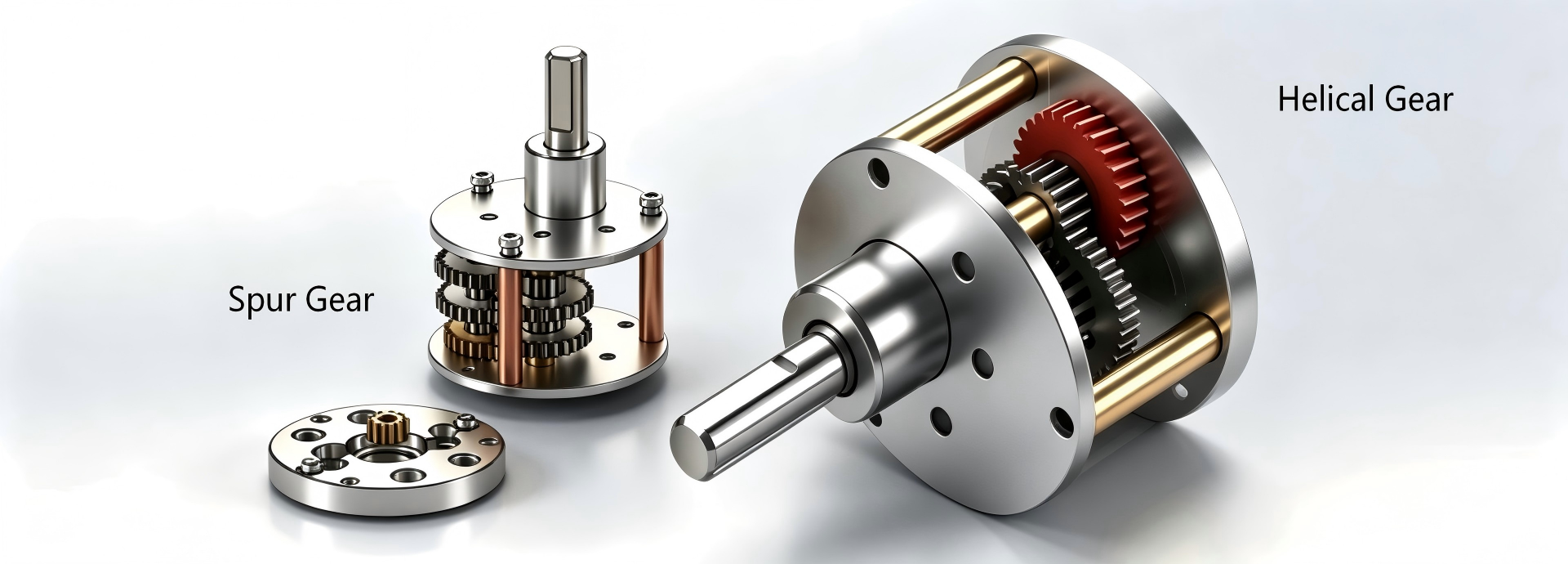

1. Core Structural Differences Between Spur and Helical Gears

The acoustic performance gap between the two gear types stems from their inherent tooth geometry and meshing mechanics, which directly determine vibration and noise generation during operation.

Spur Gear Structural Characteristics

• Straight tooth design aligned parallel to the motor shaft, featuring a simple and compact structural layout

• Instant full-width meshing and separation of gear teeth during rotation, causing abrupt mechanical contact

• Intermittent meshing impact generates continuous vibration and tonal operating noise, forming inherent acoustic limitations

Helical Gear Structural Characteristics

• Oblique teeth processed at a fixed helix angle, breaking the parallel tooth layout of spur gears

• Gradual, progressive tooth contact that spreads evenly across the entire tooth surface during operation

• Overlapping meshing of multiple tooth pairs eliminates sudden impact vibration, optimizing overall operational stability and quietness

2. Practical Noise Performance Differences Across Speed Ranges

Under standardized manufacturing and consistent load conditions, helical gearboxes consistently outperform spur gearboxes in quiet operation. The noticeable acoustic gap varies significantly depending on the motor’s rotational speed, showing distinct performance traits in low-speed and high-speed working scenarios.

Low-Speed Operating Performance

• Gear meshing vibration amplitude is extremely limited at low rotational speeds, resulting in subtle acoustic differences between the two gear types

• Auxiliary noise sources including bearing friction, motor electromagnetic hum, and shell resonance easily cover minor gear noise gaps

• No obvious perceptual difference in quietness for low-speed intermittent drive applications

Medium & High-Speed Operating Performance

• Rising meshing frequency amplifies the inherent impact vibration and harsh noise of spur gears

• Helical gears maintain stable continuous meshing, effectively suppressing vibration amplification and abnormal operating noise

• Superior quiet performance becomes fully prominent, meeting strict acoustic standards for high-speed precision drive equipment

3. Key Performance Trade-Offs for Gear Selection

Noise performance cannot be evaluated independently. Designers must balance multiple core indicators including transmission efficiency, structural stability, precision and cost to select the optimal gear solution.

Advantages and Traits of Spur Gears

• High transmission efficiency with negligible axial thrust, reducing bearing load and structural wear

• Simple assembly and low manufacturing and maintenance costs, delivering outstanding cost performance

• Supports ultra-precise custom reduction ratios with zero parameter deviation for fixed-ratio project requirements

Advantages and Traits of Helical Gears

• Smooth vibration suppression and consistent low-noise operation, ideal for precision and user-sensitive scenarios

• Multi-tooth load sharing reduces single-tooth pressure, lowering gear wear and extending service life

• Limited by tooling technology, individual precise fixed ratios require minor parameter adjustment, with slightly higher production costs due to mandatory thrust bearing matching

4. Application Scenarios & Professional Selection Guidance

Each gear type has targeted applicable scenarios. Reasonable selection based on project priorities can maximize equipment comprehensive performance.

Recommended Scenarios for Helical Gearboxes

• Noise-sensitive indoor equipment: smart electric curtains, adjustable smart furniture, indoor service robots

• Precision medical devices and office automation equipment requiring long-term stable quiet operation

• High-precision positioning equipment such as camera drive modules with strict vibration control requirements

Recommended Scenarios for Spur Gearboxes

• Industrial automated production lines and logistics transmission equipment with relaxed noise standards

• Projects with non-negotiable fixed reduction ratio requirements and moderate cost control demands

• Low-speed intermittent drive mechanisms enclosed in industrial equipment, where noise impact is negligible

It is worth noting that tooth geometry is the core but not the only factor affecting gearbox noise. Gear material, surface finishing, lubrication configuration, shell rigidity and assembly tolerance all jointly determine final acoustic performance. High-precision processing can optimize spur gear noise performance, while substandard assembly will weaken the quiet advantages of helical gears.

5. Custom Gear Motor Solutions from I.CH Motion

As a professional customized DC gear motor manufacturer, I.CH Motion provides complete spur and helical gear transmission solutions for parallel-shaft and planetary gearboxes, supporting prototype verification and mass production customization.

• For cost-effective, fixed-ratio conventional projects: We recommend stable spur gear solutions to ensure ratio accuracy and control overall costs

• For high-end precision intelligent equipment: We adopt high-precision helical gear structures, proactively informing clients of minor process-based parameter adjustments

• Our professional engineering team provides one-to-one parameter matching and scheme optimization to fit diverse load, speed and noise specification demands

6. Final Summary

Helical gears deliver superior vibration suppression and quieter operation compared to spur gears under identical working conditions, with their acoustic advantages becoming more prominent as operating speed increases. Spur gears excel in high efficiency, precise ratio output and cost control, while helical gears dominate low-noise, high-stability precision transmission scenarios. Design engineers need to comprehensively balance noise standards, speed characteristics, ratio accuracy and budget constraints to select the most suitable gear structure. For customized compact DC gear motors for intelligent control systems, cooperate with I.CH Motion’s technical team to obtain tailored, high-performance drive solutions.
