Stainless Steel vs Anodised Aluminium Oval Gears: Choosing the Right Material for Diesel Fuel Flow Meters

When a design team starts building a positive displacement flow meter for diesel fuel, the first engineering decision is rarely the flow range or the port size. It is the material of the rotating core. That core — the oval gear — sits directly in the fluid path, spins against tight clearances, and has to keep delivering repeatable measurement for years. Getting the material wrong means redesigning the meter, re-qualifying the prototype, and carrying a warranty risk you cannot easily see in a drawing.

This article walks through why material choice matters for fuel metering, how stainless steel and anodised aluminium compare in practice, and what a flow meter development team actually needs to check before ordering the first prototype.

Why the material of an oval gear matters

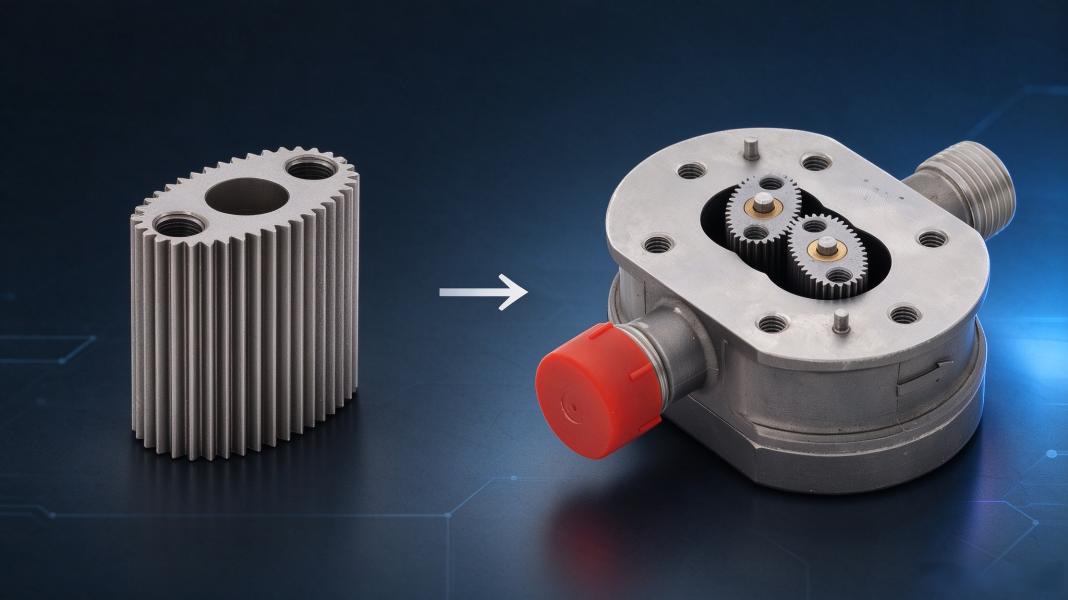

A positive displacement flow meter works by trapping a fixed volume of fluid between two oval gears and counting how many times that volume is moved. Accuracy therefore depends on two things: the gear maintaining its exact geometry, and the surface staying stable while it runs against the fluid and the meter body. If the gear corrodes, wears, or deforms, the trapped volume changes and the meter starts reading incorrectly — often gradually, which makes the drift hard to detect until a customer complains about the fuel bill.

For diesel fuel in particular, the operating environment is not as clean as it looks. Fuel can carry water, sulphur compounds, and additives. Meters are frequently installed outdoors or in marine and agricultural settings where humidity, condensation, and temperature swings are normal. The gear must resist all of this without losing precision.

How the two candidate materials behave

Anodised aluminium is attractive early in a project because it is light and easy to machine. But its protection lives in a surface coating. Once that layer is scratched at the edges of the gear, or attacked by moisture trapped in a fuel system, the metal underneath is exposed and corrosion can begin at exactly the points where the gear needs to stay dimensionally true.

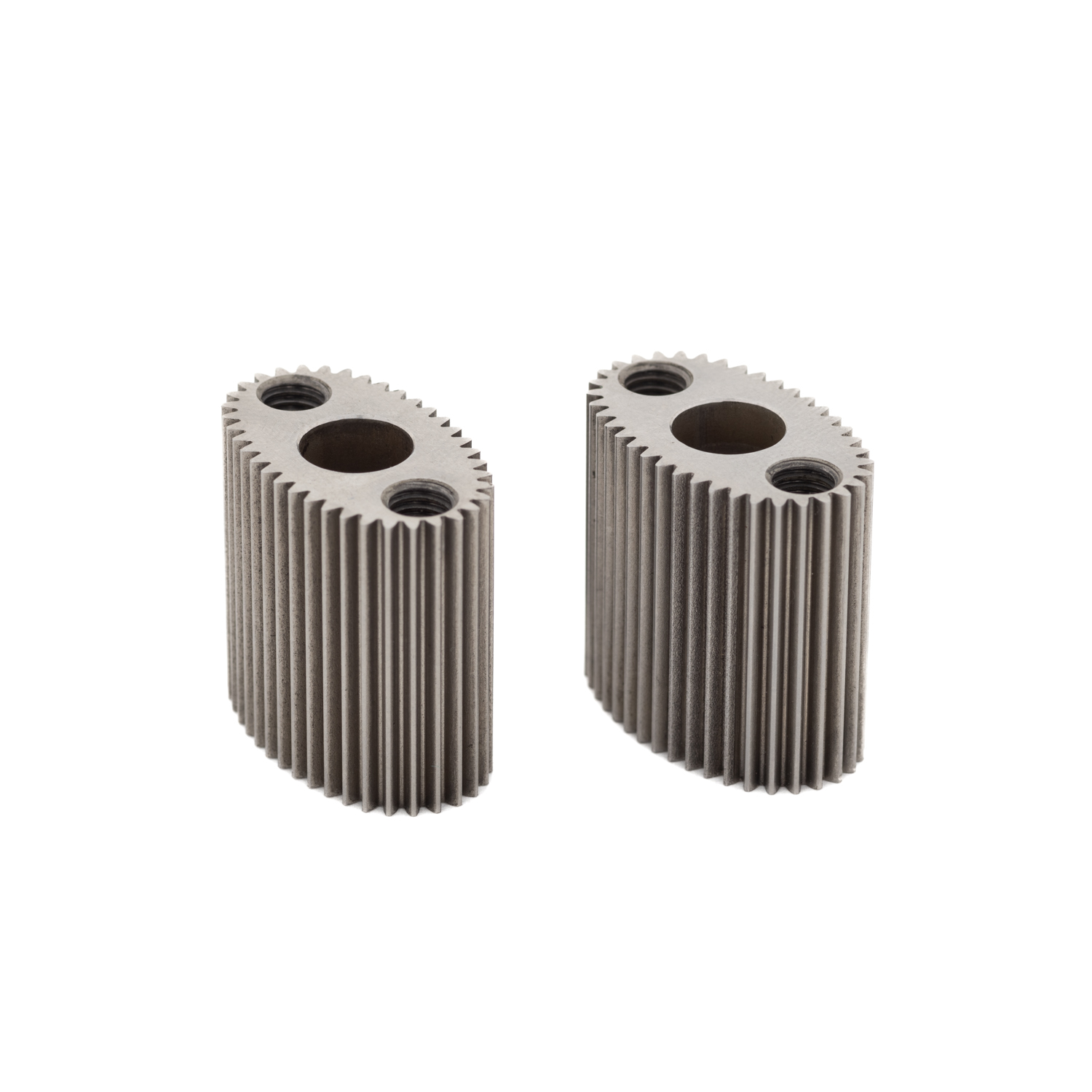

Stainless steel takes a different approach. Its corrosion resistance is a property of the alloy itself, not a coating. So even if the surface is machined, handled, or worn during operation, the material underneath continues to resist the medium. For a part that spins continuously inside a fuel meter, that makes a meaningful difference to how long the meter stays accurate.

The design team's real question: "can I build the meter around it?"

In the inquiry that shaped this guide, a flow meter design team working on a diesel meter for a 2-inch pipe was weighing the same choice. They had originally planned on anodised aluminium, then asked the supplier whether stainless steel could be supplied instead. The deciding factors were practical:

• The gear had to fit a specific envelope so the meter could be built around the available size.

• The material had to survive prolonged contact with diesel and condensation.

• The supplier had to machine the part to a precision standard that would let the meter repeat its readings.

Once the supplier confirmed the stainless steel version was machined rather than cast, and that its dimensions matched the design envelope, the decision became straightforward. Stainless steel gave the team the corrosion resistance they wanted without sacrificing the machining precision the meter depended on.

A practical checklist before you order a prototype

If you are in the same position — designing a positive displacement flow meter around an oval gear — use this checklist:

• Confirm the medium. Diesel, water, chemicals, and viscous fluids each place different demands on the gear.

• Check the mounting and fit. State the pin diameter, fit class, and how the gear is secured so the supplier can confirm the bore arrangement.

• Ask whether it is machined or cast. For precision metering, machined parts hold tighter dimensional control.

• Plan the sensor path. If you need magnets for signal pickup and carbon bushes for low-friction running, state the parameters up front.

• Validate with a small prototype. Order a handful of pieces first — the standard practice in this project was four — to test fit and accuracy before committing to production volume.

• Think about scaling. Confirm whether the supplier can support your production quantity and whether larger sizes are available for future flow ranges.

A short list of what to look for in a supplier

For a diesel fuel flow meter, the material of the oval gear is a reliability decision, not just a cost one. Anodised aluminium can work in controlled conditions, but stainless steel removes the single biggest long-term risk — corrosion that silently degrades metering accuracy. A design team that can machine the gear precisely, fit it to their envelope, and prototype it before scaling has the shortest path to a meter that stays accurate over a long service life.

If you are evaluating materials for your own positive displacement flow meter, the practical next step is to confirm the medium, share your fit requirements, and request a prototype in stainless steel to test before you commit to production.
