Every damper actuator that sits inside an air-handling space carries a hidden responsibility: it must not become a smoke generator during a fire event. For engineers building and maintaining healthcare facilities, cleanrooms and pharmaceutical environments, this certification work is not a simple box-ticking exercise — it is a code-driven, life-safety requirement. When a contractor specifies a control damper for a hospital return-air ceiling, the actuator bolted to that damper is expected to hold valid plenum rating, because in a fire the last thing anyone wants is combustion smoke being sucked into the occupied zones and cleanrooms.

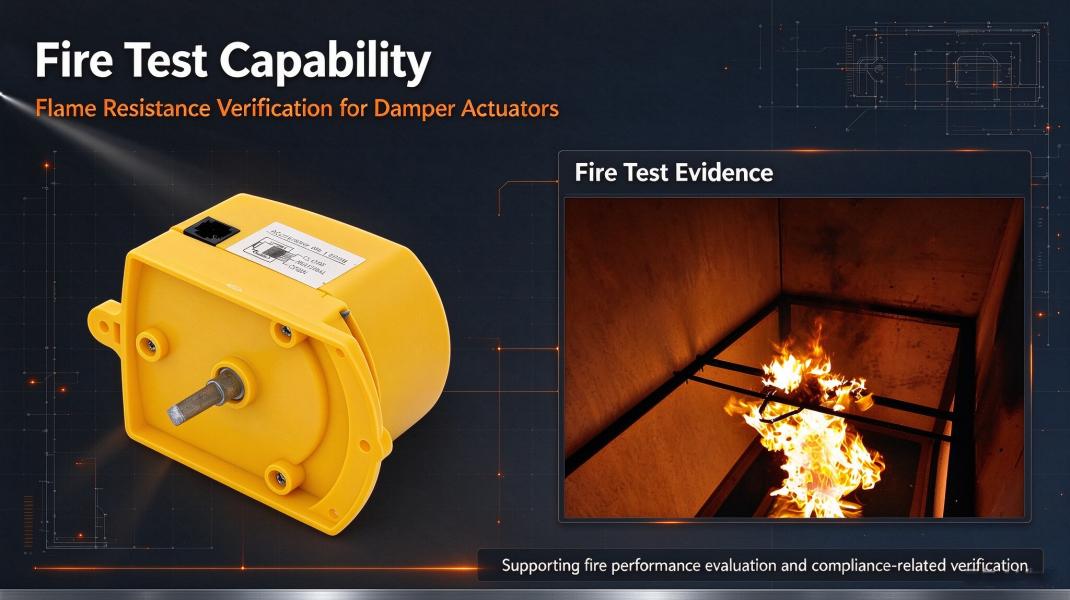

The role of the damper actuator in an air system is simple to describe but exacting to fulfil. It positions the damper blade to modulate airflow, holds position against duct pressure, and — in smoke-control applications — acts as part of the building's fire and smoke management system. Because it is installed inside the plenum or ductwork, it shares the same air path as the people breathing the space. If it burns, its heat and smoke enter that path. That is precisely why fire-smoke spread evaluation governed by UL2043 is designed for these HVAC components.
The test outcome is determined not by a single feature but by the sum of every combustible element in the product. For a typical damper actuator, the meaningful contributors can be grouped as follows:
表格
Component | Typical material role | Why it matters in the fire-smoke spread test |
|---|---|---|
Plastic housing | Structural enclosure, insulation, mounting | Dominant mass; sets overall flammability and smoke contribution |
External cable insulation | Electrical protection and routing | Often overlooked; can be the main smoke source |
Cable conductors | Power/signal | Usually metallic; minor fire contribution |
Seals, labels, gaskets | Function/identification | Small mass, but can add local smoke |
Internal wiring and PCB | Control and feedback | Affects heat release if exposed |
Two components dominate the analysis in most failures: the plastic housing and the cable insulation. The housing is what everyone inspects first, because it is the largest and most visible combustible part. The cable insulation, however, is frequently the hidden variable — it is thin, low in mass, and easy to assume compliant because it "looks the same" as a cable that passed elsewhere.
In the technical review behind this case, the plastic housing met a very high flammability rating (UL94-5VA). On the surface, that sounds like a fully compliant product. The trap is that UL94 evaluates flammability — whether a material resists ignition and self-extinguishes — while UL2043 evaluates, among other things, visible smoke release. A material can stop burning quickly and still release dense smoke while it does burn. This is why a seemingly compliant housing can sit alongside a test that still fails: the flame-retardancy grade answers a different question than the smoke test does.
For healthcare ventilation and cleanroom duty, the material selection logic should therefore be: choose housing polymers that are both flame-retardant and low-smoke, and verify the complete product — not just the material certificate — inside the air-handling space.
The external cable is the quieter risk. In this case, a 2-core external cable used the same specification as the cable on other validated products but came from a different supplier. Specification identity masked a material difference. The insulation compound of that particular supplier's cable produced excessive smoke under the test. This is a recurring failure pattern across the industry: the spec sheet lists a cable type, everyone assumes the material is identical, and the smoke test reveals it is not.
The lesson for OEMs and specifiers is to treat cable insulation as a first-class material decision, not an accessory. Material supplier, insulation compound and documented test history should be audited with the same rigour as the housing.
Cleanrooms and hospital zones are the most sensitive applications an actuator can serve. Smoke control is integral to how these facilities protect occupants and processes during a fire. In a cleanroom, smoke ingress can contaminate the controlled environment and compromise production; in a hospital, smoke spread into patient and recovery areas directly endangers lives. A damper actuator that is not plenum-rated undermines the entire fire and smoke management strategy of the building.
表格
Application | Fire/smoke priority | Actuator expectation |
|---|---|---|
Hospital patient areas | Occupant evacuation safety | Plenum-rated, low-smoke |
Operating suites | Smoke exclusion | Plenum-rated, reliable hold |
Pharmaceutical cleanrooms | Product protection | Low-smoke, clean materials |
R&D laboratories | Fume and smoke control | Code-compliant, documented |
Fire-smoke spread certification is not about the actuator alone; it is about the integrity of the air system it serves. By analysing structure and materials together — treating the housing and the external cable as equal partners in smoke performance — manufacturers can close the gap between "flame-retardant" and "genuinely low-smoke." For healthcare and cleanroom engineers, specifying a damper actuator that has demonstrably passed UL2043 is one of the simplest ways to protect both occupants and the controlled environment.
