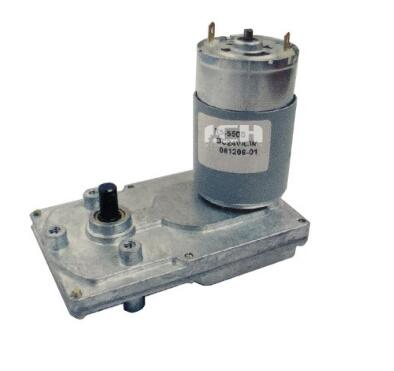

Automatic Gate 24v DC Geared Motor
Product Description
Description
DC Gear Motor is a power transmission mechanism, is to use the speed of the gear as a converter, the number of motor rotation deceleration to the number of rotation, and get larger torque of the mechanism. Nowadays, the application scope of the Geared Motor is very extensive in the mechanism used for transmitting power and motion, can be used in all walks of life mechanical transmission, such as: construction of heavy machinery, machinery industry automation production equipment, home electric appliances and so on.
Gearbox Specification
| Gear ratio i | 1:21 / 1:52 / 1:96 / 1:151 / 1:211 / 1:277 / 1:360 / 1:416 | |||||
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
| SPEED rpm | CURRENT A | SPEED rpm | TORQUE Kg.cm | CURRENT A | OUTPUT W | TORQUE Kg.cm | ||
| D602-004021 | 24.0 | 214.00 | 0.12 | 160.00 | 4.00 | 0.57 | 6.7 | 13.00 |
| D602-010052 | 24.0 | 86.00 | 0.12 | 63.00 | 10.00 | 0.57 | 6.6 | 30.00 |
| D602-017096 | 24.0 | 46.00 | 0.12 | 35.00 | 17.00 | 0.57 | 6.3 | 45.00 |
| D602-028151 | 24.0 | 29.00 | 0.12 | 20.00 | 28.00 | 0.57 | 5.9 | 80.00 |
| D602-035211 | 24.0 | 22.00 | 0.12 | 16.00 | 35.00 | 0.57 | 5.8 | 80.00 |
| D602-040277 | 24.0 | 16.00 | 0.12 | 11.50 | 40.00 | 0.57 | 4.9 | 80.00 |
| D602-040360 | 24.0 | 12.50 | 0.12 | 9.00 | 40.00 | 0.57 | 3.8 | 80.00 |
| D602-040416 | 24.0 | 10.80 | 0.12 | 7.40 | 40.00 | 0.57 | 3.1 | 80.00 |
Mechanical Dimensions
