How Custom Mounting‑Hole & Output‑Shaft Adjustments Solved Planetary Gearbox Prototype Non‑Conformance for CNC Automation Equipment

For CNC automation machine builders and mechanical design engineers, selecting standard off-the-shelf low-backlash planetary gearboxes has always been a mainstream strategy to shorten product research and development cycles, simplify component procurement processes, and control overall manufacturing costs. Most automation manufacturers rely on standardized square flange servo gearboxes with mature industrial-grade parameters, believing that factory default mounting structures and universal output shaft dimensions can perfectly adapt to most servo-driven automated equipment assembly scenarios. However, practical industrial prototype testing constantly proves that standard catalogue products often fail to match personalized mechanical mating structures, resulting in prototype assembly failure, delayed equipment debugging progress, and even increased additional rework costs for new product projects. This article elaborates on a real and typical customization case of high-precision planetary gearboxes for CNC automatic tool change equipment, analyzing the fundamental reasons for prototype dimensional non-conformance, efficient engineering revision solutions, and valuable technical optimization experiences for industrial gearbox selection and customization.

This cooperative project serves high-precision CNC machine tool automatic tool change systems, which require extreme motion stability and positioning accuracy during high-frequency tool switching and rotating operations. The tool drive unit needs a compact, high-rigidity, low-backlash planetary reduction structure to amplify servo motor torque, stabilize rotating speed, and ensure consistent repeated positioning accuracy during long-term continuous operation. Our 60mm square flange planetary gearbox is professionally designed for servo motor matching, featuring a reduction ratio ranging from 10 to 100, ultra-low backlash within 3 arcminutes, IP65 dustproof and waterproof protection, alloy steel gear heat treatment, and lifetime maintenance-free lubrication. All core performance parameters fully meet the strict precision standards of CNC machining equipment, so the customer selected this standard model for prototype assembly and performance verification in the early project stage.

Despite the excellent core transmission performance of the standard gearbox, obvious assembly non-conformance problems occurred during customer prototype testing. The original standard mounting hole thread configuration and factory default output shaft diameter could not match the customer’s pre-processed customized mechanical housing and internal mating structure. The customer’s CNC equipment shell, fixing brackets and assembly fixtures were all pre-machined according to their exclusive design drawings, with fixed reserved hole positions and assembly gaps. The mismatched gearbox interface made direct installation impossible. If the customer chose to modify their finished structural parts to adapt to the standard gearbox, it would cause tolerance deviation of the whole equipment structure, damage the original precision design of the CNC machine tool, and bring huge hidden dangers to subsequent mass production and stable operation.

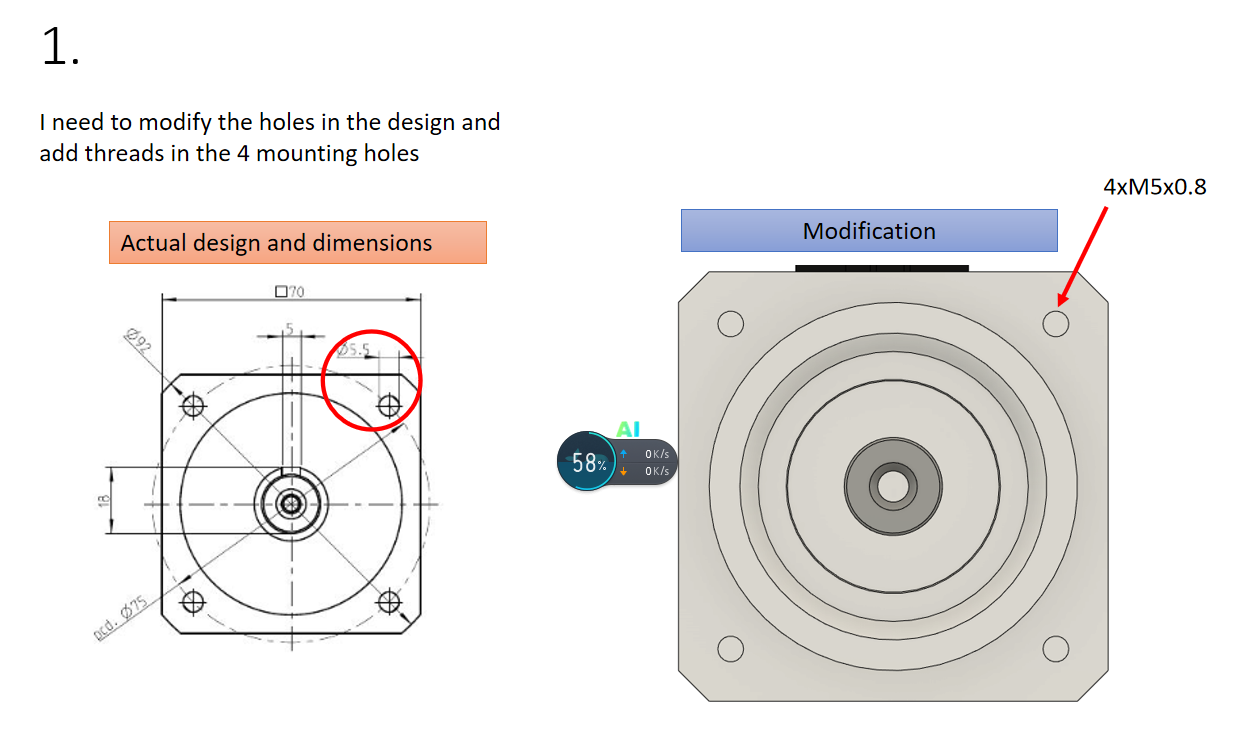

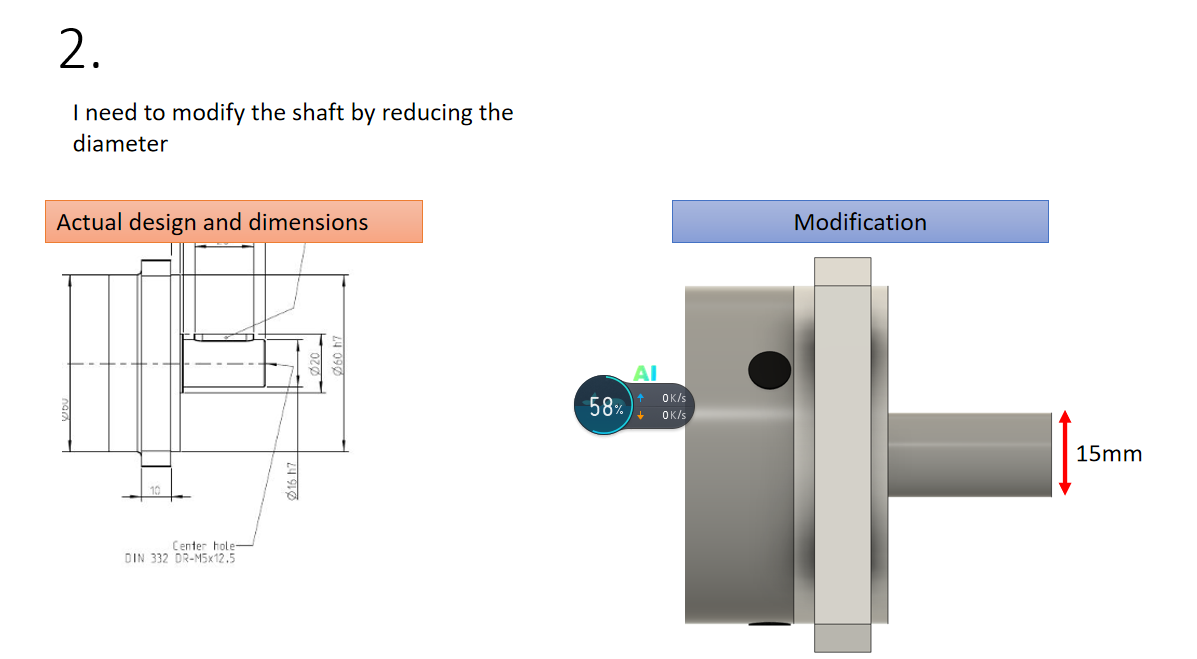

Our professional engineering team launched an immediate and systematic root cause analysis after receiving customer technical feedback. After comprehensive inspection and verification, we confirmed that the problem was not caused by defective gearbox quality, insufficient transmission efficiency or poor structural rigidity. The core issue was the structural incompatibility between the universal standard configuration and the customer’s personalized assembly requirements. The customer’s CNC tool change mechanism clearly required M5 threaded mounting holes for stable fixing and a smaller 15mm output shaft to cooperate with their coupling and transmission accessories, while the standard gearbox adopted general-purpose mounting threads and larger shaft dimensions, resulting in complete interface mismatch.

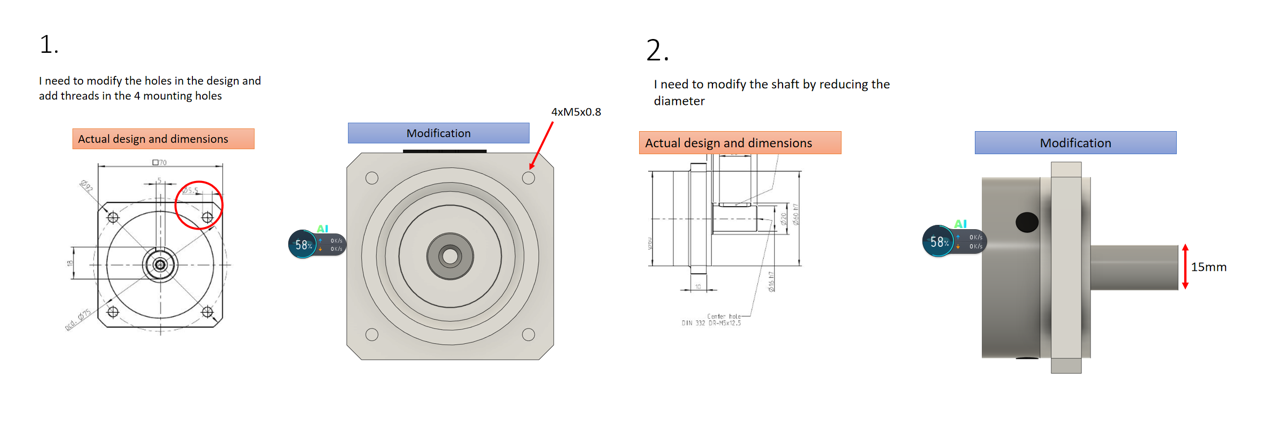

Facing the prototype failure, we abandoned the conventional solution of requiring customers to modify their equipment structures, which would delay project progress and increase customer R&D costs. Instead, our engineering department took the initiative to undertake all drawing revision work and completed the full modification and parameter verification of the gearbox installation interface drawings. The revised drawings fully optimized the mounting hole thread specification and output shaft size, accurately matching all dimensional standards of the customer’s mating structure. We immediately submitted the updated engineering documents to the customer’s mechanical engineering team for formal review and technical confirmation to ensure zero dimensional deviation before formal production.

After carefully verifying all customized parameters and confirming that the revised gearbox completely met the assembly and operation requirements of CNC automation equipment, the customer fully recognized our rapid response capability and professional customization service. Subsequently, the customer officially confirmed the revised drawings and placed a formal bulk order of 100 units for batch production and equipment assembly. This successful cooperation perfectly demonstrates that targeted interface customization of standard gearboxes can effectively solve prototype non-conformance problems, turn sample failure into stable batch cooperation, and greatly shorten the equipment iteration cycle for automation manufacturers.

In the industrial automation industry, many mechanical engineers focus too much on core performance indicators such as backlash value, torque rating and reduction ratio when selecting gearboxes, while ignoring the importance of installation interface matching. In fact, interface adaptability is the primary prerequisite for component application. No matter how superior the internal transmission performance of a gearbox is, dimensional mismatch will make it completely unusable for customized precision equipment. This case provides standardized guidance for the majority of automation equipment R&D and procurement teams. Fully docking interface parameters and completing drawing confirmation in the early inquiry stage can effectively avoid prototype rework, save R&D time and cost, and improve the success rate of new product development.

In summary, standardized gearbox products need flexible interface customization to adapt to diversified industrial application scenarios. Rapid drawing revision, accurate dimensional matching and professional technical communication are the key to solving prototype non-conformance problems. This CNC equipment customization case fully reflects the value of personalized industrial component services, helping automation enterprises achieve efficient product iteration and stable mass production.
