How Square‑Flange Low‑Backlash Planetary Gearbox Elevates Servo‑Driven Precision and Equipment Lifespan

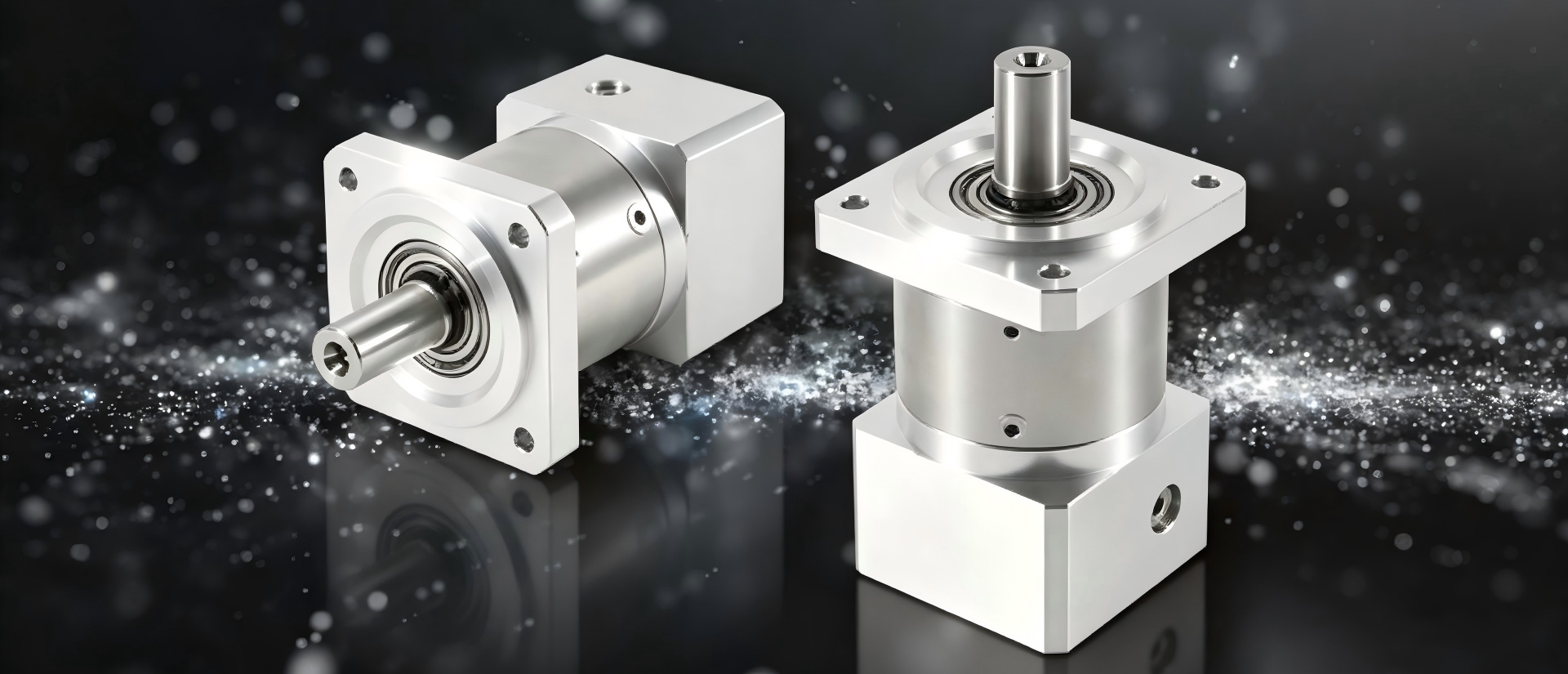

High‑precision planetary gearboxes serve as the critical mechanical link between servo motors and automated production equipment. For motion‑control applications including CNC machine tools, robotic joints, printing and agricultural automation, the square‑flange low‑backlash planetary reducer directly decides positioning repeatability, running stability and total service life of the whole drive system. Many system integrators overlook how structural design, material craftsmanship, sealing performance and operating parameters jointly shape real‑world performance. This article breaks down the core strengths of the I.CH PG603 60 mm square‑flange planetary gearbox and explains how its design features deliver reliable, long‑term operation across industrial environments.

Structural Rigidity, Tooth Geometry and Square‑Flange Mounting Advantages

Load distribution, tooth profile design and structural stiffness form the hardware foundation for precision transmission. The PG603 series adopts involute gear geometry ground to ISO Class 5 precision standard, with profile and axial modification to optimize tooth contact patterns. Well‑calibrated tooth geometry prevents partial overload, tooth jamming and abnormal accelerated wear even under frequent forward‑reverse cycles. Its square‑flange housing brings significant mounting benefits compared with round‑flange alternatives: multi‑point bolt fixing improves installation stability and resists housing deformation under dynamic torque shocks。

The output shaft uses large‑span double‑support bearing architecture. This structural arrangement disperses radial load up to 200 N and axial load up to 100 N, avoiding local stress concentration caused by bearing deflection. When sudden dynamic torque occurs during emergency stops or rapid direction reversal, the rigid carrier and reinforced housing keep gear sets correctly meshed. Proper load sharing across planetary gears reduces peak pressure on individual tooth surfaces. These optimizations suppress vibration sources at the mechanical level, maintain positioning accuracy under fluctuating loads, and extend component working cycles for servo‑driven machinery。

High‑Grade Alloy Steel and Precision Heat Treatment for Durable Gear Components

Material selection and professional heat‑treatment processes determine the anti‑fatigue capacity of precision gearboxes. The PG603 planetary gear set is manufactured from high‑strength alloy steel processed via carburizing and quenching treatment. Controlled thermal processing creates hard wear‑resistant gear surfaces while retaining core material toughness to absorb impact force and resist crack propagation. Industry statistics indicate components receiving standardized case hardening achieve roughly 40 % longer working life than untreated counterparts。

High‑precision gear grinding to ISO Class 5 removes surface defects left by rough machining. Fine surface finish lowers metal‑to‑metal friction during high‑speed meshing. Even running near rated continuous torque of 15 N·m, the gear teeth maintain stable dimensional consistency. This material‑process combination enables the reducer to sustain high transmission efficiency: single‑stage efficiency reaches above 95 %, and two‑stage configuration stays over 92 %. Lower energy loss converts into less heat generation, indirectly easing thermal stress on internal bearings and seals during continuous production shifts。

Lubrication Configuration and Thermal Control for Long‑Term Continuous Duty

Lubrication management is essential to minimise friction loss inside a servo planetary gearbox. Unlike models requiring periodic oil replacement, the PG603 adopts high‑viscosity non‑separating grease for lifetime lubrication. Selecting the correct grease formulation balances film‑forming performance under heavy‑load low‑speed conditions and anti‑degradation capability at high rotating speeds. Maintenance‑free lubrication eliminates errors caused by improper manual grease change or wrong lubricant viscosity selection on‑site。

Heat accumulation remains a hidden risk for precision reducers during non‑stop operation. Excessive temperature will decompose lubricant grease, break protective oil‑grease films and accelerate material fatigue. Though this square‑flange gearbox is designed for lifetime grease lubrication, operators still need to watch thermal limits during actual deployment. Under sustained high‑speed and peak‑torque working cycles, heat builds inside the compact housing. Users should avoid prolonged operation close to maximum rated parameters; for high‑cycle dynamic applications, monitor surface temperature and adjust duty cycle to prevent thermal‑induced performance decay. Effective thermal control protects both lubricant integrity and internal precision components over years of operation。

Contamination Resistance and IP65 Sealing Integrity in Harsh Working Conditions

Around 40 % of premature planetary gearbox failures trace back to particle ingress and moisture pollution. Dust, metal chips and condensed water will scratch gear tooth surfaces, corrode bearing raceways and degrade lubricant quality. Sealing performance becomes especially critical for equipment deployed in food‑beverage processing, printing workshops and farm automation sites where dust or moisture cannot be fully isolated from the installation environment。

The PG603 square‑flange planetary gearbox achieves IP65 protection grade through advanced multi‑lip sealing compounds. High‑quality sealing assemblies block external particulate pollutants and moisture, while preventing internal lubricating grease leakage. Field operation data shows gearboxes with intact sealing assemblies can deliver approximately 60 % longer service intervals than units suffering seal failure. Although this model supports maintenance‑free operation, routine visual inspection at scheduled equipment shutdowns is still advised. Check for grease seepage at shaft penetration points. Early detection of seal damage stops contaminants entering before irreversible internal wear takes place, preserving low‑backlash performance ≤ 3 arcminutes over long run‑time。

Operational Stress Management: Dynamic Load, Backlash Control and Vibration Observation

Servo automation systems commonly generate dynamic loads, shock impacts and frequent direction changes, which impose heavy stress on precision reducers. Overload beyond nominal torque creates uneven stress distribution across gear teeth, potentially bringing permanent deformation or micro‑cracks. Even short‑time shock loads from sudden startup or collision events may harm internal parts. System designers should apply proper safety factors during model‑selection phase and avoid continuous operation above rated torque. Installing torque‑limiting protective devices offers extra safety for high‑dynamic machinery scenarios。

Backlash management defines positioning accuracy for servo applications. The PG603 controls total backlash within 3 arcminutes, satisfying high‑precision positioning demands for CNC automatic tool changers and robot joint actuators. Excessive backlash amplifies impact force during rotation reversal, producing noise and vibration and speeding‑up component fatigue. However, overly tight pre‑load to chase near‑zero backlash raises friction heat and shortens service life. The factory‑calibrated 3‑arcmin‑or‑less clearance strikes a balanced point between positioning precision and mechanical durability. Meanwhile, regular vibration monitoring works as an effective predictive maintenance method. Shifts in vibration amplitude and frequency can reveal misalignment, bearing wear or gear tooth damage long before visible faults occur. Around two‑thirds of mechanical defects can be captured in advance through vibration diagnostics, helping maintenance teams arrange planned servicing instead of coping with unexpected breakdowns。

Optimized Application Practices to Maximize PG603 Gearbox Service Life

Even well‑engineered square‑flange low‑backlash planetary gearboxes require correct application to realise full design lifespan. First, confirm motor matching: this reducer fits standard servo motors and brushless DC motors, and custom flange interfaces support non‑standard motor dimensions. Second, guarantee installation quality: keep shaft coaxiality during mounting; uneven bolt tightening will deform the square flange and destroy internal gear meshing status. Third, respect working‑condition limits: do not sustain continuous operation beyond rated torque, radial load and axial‑load specifications.

Though PG603 features lifetime lubrication and IP65 sealing, users should still record operating conditions for key equipment. Document running temperature, abnormal noise and vibration observations. For equipment running in heavily dusty or humid environments, increase visual inspection frequency for sealing parts. Following these proactive practices minimises unplanned downtime, lowers total operational costs, and enables the precision planetary gearbox to sustain consistent high‑accuracy transmission year after year.

Frequently Asked Questions

Q1: Which motors are compatible with the PG603 square‑flange planetary gearbox?

A: It matches most standard servo motors and brushless DC motors. Custom‑made flange interfaces are available for special motor requirements.

Q2: Can this low‑backlash reducer be used for CNC automation equipment?

A: Yes. Backlash controlled ≤ 3 arcminutes supplies high‑repeatable positioning accuracy suitable for CNC tool changers and automated machine‑tool axes.

Q3: Does PG603 need regular grease replacement during service?

A: It adopts lifetime‑lubricating grease together with IP65‑grade sealing. Normal‑condition operation supports maintenance‑free use, while seal visual checks are recommended for harsh‑environment installations.
