How To Choose Low Backlash Planetary Gearbox For Servo Motor?

Servo motion control systems rely heavily on planetary gearboxes to balance speed reduction, torque amplification and positioning accuracy. Low backlash planetary reducers have become the core transmission component for high-precision automation, robotic joints, CNC machine tools and packaging equipment, as they eliminate clearance errors between gear teeth and deliver repeatable motion performance. Many mechanical engineers face costly mistakes when selecting gearboxes: undersized torque causes premature breakdown, excessive backlash ruins positioning precision, mismatched gear ratios trigger servo vibration, and incompatible flanges extend equipment assembly cycles.

This systematic guide breaks down the full selection workflow for low backlash planetary gearboxes matched to servo motors, covering application profiling, core performance indicators, mechanical structure matching, environmental adaptability, and total lifecycle cost analysis. We will also introduce I.CH PG603 square flange planetary gearbox, a cost-effective high-precision reducer tailored for mainstream servo drive scenarios, to help designers make verified, production-ready purchasing decisions.

Step 1: Map Full Application Operating Profiles Before Selection

Before comparing technical parameters of gearboxes, engineers must quantify the complete load and motion characteristics of the servo axis, a core principle from industrial gearbox selection standards. All sizing calculations are based on real working conditions rather than isolated datasheet figures.

1.1 Classify Load Types

Three primary load modes directly determine required torque rating and service life:

• Constant steady load: Conveyors, continuous material handling lines require stable continuous torque output;

• Variable cyclic load: Packaging indexing tables, automatic tool changers feature frequent start-stop and forward-reverse switching, demanding higher peak torque margin;

• Shock impact load: Automated stamping and sorting equipment generates instantaneous impact force, requiring gearboxes with reinforced gear and bearing structures.

I.CH PG603 adopts double-support large-span output bearings, which boost radial and axial load capacity up to 200N and 100N respectively, perfectly resisting cyclic shock loads in printing, food processing and CNC equipment.

1.2 Confirm Motion Profile Parameters

Key motion indicators that affect gearbox selection:

• Axis layout: Horizontal, vertical or inclined installation; vertical lifting axes require extra self-locking and rigidity reserves;

• Dynamic metrics: Acceleration, deceleration, cycle frequency, positioning dwell time and travel distance; high-frequency servo axes produce frequent peak torque far exceeding static load torque;

• Precision requirement grade: Unidirectional conveying systems tolerate mild backlash, while robotic wrists and laser CNC cutting heads demand ultra-low backlash below 3 arcmin.

Excessive inertia mismatch between servo motor and load will lead to system overshoot, vibration and slow response. Low backlash planetary gearboxes adjust reflected load inertia to match the motor’s optimal operating window, stabilizing closed-loop servo control.

Step 2: Evaluate Seven Core Performance Selection Criteria

2.1 Torque Rating (Continuous & Peak Torque)

Torque is the foundational parameter for gearbox sizing. Two torque values must be calculated:

1. Continuous rated torque: Sustained output torque under long-cycle steady operation;

2. Peak acceleration torque: Instantaneous torque during startup, braking and sudden load changes.

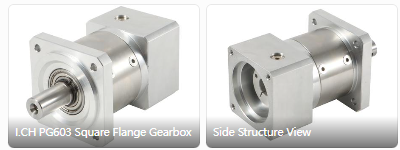

An undersized gearbox suffers rapid gear wear, overheating and early failure; oversized models add unnecessary volume, weight and procurement cost. The I.CH PG603 60mm square flange planetary reducer delivers 15N.m rated transmission torque, covering light-to-medium precision servo applications including agricultural automation and beverage filling lines.

2.2 Gear Ratio & Speed Matching

Gear ratio controls output speed and torque multiplication. Ratios ranging from 10:1 to 100:1 are available for I.CH PG series planetary gearboxes, compatible with all mainstream brushless DC and AC servo motors.

• Low ratios (10:1–30:1): Preserve fast dynamic response for high-speed positioning equipment;

• High ratios (50:1–100:1): Amplify torque for heavy-load low-speed robotic actuators.

A well-matched ratio ensures the servo motor runs within its efficient speed zone, avoiding motor overload or sluggish axis reaction.

2.3 Backlash Grade (Critical For Precision Servo)

Backlash refers to angular free play between meshing gear teeth, measured in arcminutes (arcmin), the decisive index for repeated positioning accuracy:

• ≤3 arcmin: High-precision grade (I.CH PG603 standard specification), suitable for CNC, automated tool change and robotic joints;

• 3–8 arcmin: General automation grade for conveyors and AGVs.

Ultra-low backlash relies on ISO Class 5 precision ground alloy steel gears with carburizing and quenching heat treatment. I.CH modifies gear tooth profiles and axial profiles to eliminate transmission clearance, guaranteeing consistent positioning repeatability after thousands of operating hours.

2.4 Transmission Efficiency & Thermal Control

High mechanical efficiency reduces heat generation, cuts energy consumption and extends service life. Single-stage planetary gearboxes reach ≥95% efficiency, two-stage models hit ≥92% efficiency, far superior to worm gear reducers (50%–85% efficiency).

Continuous high-frequency operation accumulates thermal load. I.CH PG603 uses high-viscosity long-life lubricating grease and IP65 fully sealed housing, preventing grease leakage and stabilizing operating temperature under long duty cycles, eliminating frequent oil replacement maintenance.

2.5 Rigidity, Noise & Mechanical Durability

High torsional rigidity avoids output shaft deflection under heavy radial/axial loads, maintaining consistent precision during dynamic movement. The involute precision gear structure of I.CH square flange reducers achieves smooth meshing and low noise operation, ideal for quiet production environments such as food packaging and medical automation.

2.6 Environmental Protection & Sealing Performance

Operating environments dictate housing material and protection grade:

• Food & beverage production: Require dust-proof, oil-proof sealed structures compatible with regular washdown cleaning;

• Abrasive industrial workshops: Demand robust aluminum alloy housings with full sealing.

I.CH PG603 reaches IP65 protection class, blocking dust, cooling liquid and fine particles from entering internal gear assemblies.

2.7 Mounting Compatibility & Integration Flexibility

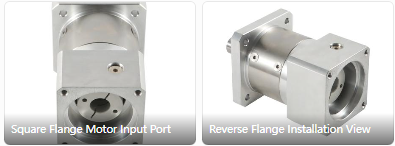

Square flange layout is a dominant advantage for servo gearbox installation. The square flange of PG603 provides multiple uniform mounting holes, supporting direct bolt-on assembly with standard servo motor flanges without extra transition adapters. It realizes seamless matching with all mainstream servo brands, and customized input/output interfaces are available for special non-standard motor combinations, simplifying mechanical design and reducing spare part inventory costs.

Step 3: Compare Gearbox Structural Types For Servo Scenarios

Three mainstream servo reducer structures have distinct applicable boundaries, helping engineers narrow down selection scope quickly:

1. Planetary gearbox (square flange inline type): Top choice for compact layout, high torque density and low backlash, matching I.CH PG603 product positioning; widely used in robotics, CNC, printing and food machinery;

2. Helical gearbox: Optimized for ultra-high-speed smooth operation, suitable for long-run continuous conveying equipment;

3. Worm right-angle gearbox: Adapts to 90-degree power transmission with limited installation space, yet suffers low efficiency and poor precision, not recommended for high-precision servo positioning axes.

For most servo precision motion projects, square flange low backlash planetary gearboxes strike the optimal balance of compact size, positioning accuracy, load capacity and cost performance, which explains their widespread adoption in modern automated production lines.

Step 4: Balance Design Trade-offs & Calculate Total Lifecycle Value

Every gearbox selection requires compromise between competing performance indicators, and engineers must prioritize core application demands:

• Precision-first scenarios (robotics, CNC): Prioritize ≤3 arcmin low backlash and high torsional rigidity, appropriately relax budget constraints;

• Continuous handling equipment (logistics conveyors): Focus on continuous torque capacity and heat dissipation efficiency;

• Space-limited compact machines: Select square flange inline planetary reducers to save installation footprint.

Many buyers only compare upfront purchase price while ignoring long-term operating costs. Low-cost inferior gearboxes suffer frequent overheating, gear wear and downtime losses, offsetting initial savings. I.CH PG series planetary gearboxes feature lifetime lubrication maintenance-free design, premium alloy steel gear components and stable long-term precision output, drastically lowering after-sales repair and replacement expenses over the full equipment lifecycle.

Step 5: Final Verification Checklist Before Ordering

After narrowing down target gearbox models, cross-check all specifications against this checklist to eliminate sizing errors:

1. Does the rated and peak torque cover all dynamic load conditions with safety margin?

2. Is the gear ratio matched to required output speed and servo motor operating range?

3. Does the backlash value meet positioning repeatability standards?

4. Can the unit sustain continuous duty cycle and thermal load without overheating?

5. Does the square flange mounting size align with servo motor and machine frame layout?

6. Are sealing grade and lubrication scheme compatible with on-site working environment?

Professional manufacturers like I.CH provide technical drawing downloads, dimension parameter tables and custom modification services to verify model suitability before formal production.

Selecting a low backlash planetary gearbox for servo motors is a systematic engineering process, not a simple parameter matching task. Starting from full application load profiling, evaluating torque, ratio, backlash, efficiency and mounting compatibility, and balancing short-term cost against long-term reliability, designers can avoid costly design defects.

The I.CH PG603 60mm square flange low backlash planetary gearbox integrates ultra-precision gear grinding, high-rigidity bearing layout and IP65 sealed maintenance-free structure, delivering reliable precision transmission for CNC machine tools, food beverage packaging, printing equipment and agricultural automation. With customizable gear ratios, flange sizes and output shafts, it serves as a universal high-performance reducer solution for all mainstream servo drive systems. For detailed dimension drawings, performance test data and custom quotation support, contact I.CH Motion technical engineering team for professional gearbox matching consultation.
