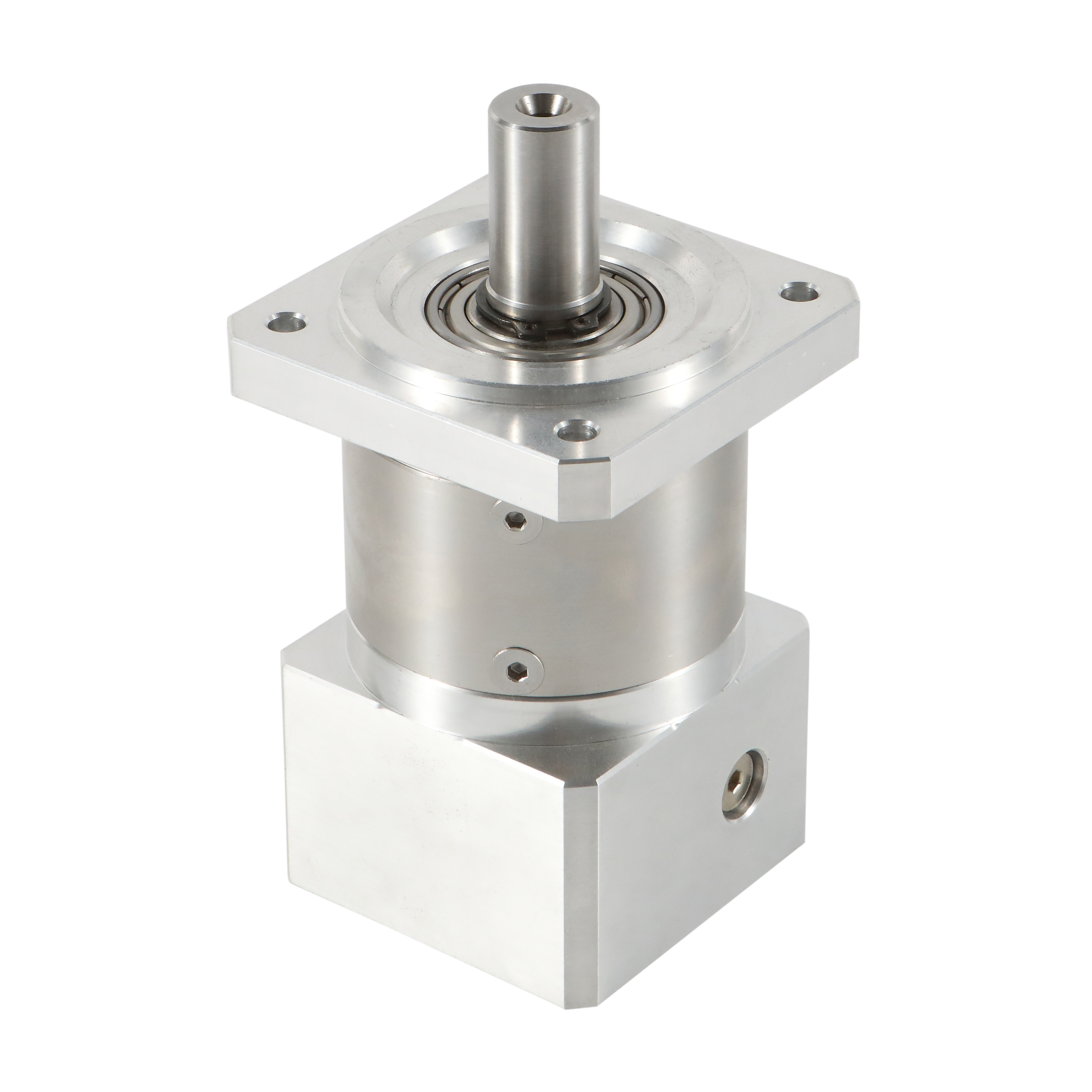

Precision planetary gearboxes act as the core torque conversion unit for servo-driven automated equipment, widely deployed in CNC machinery, robotic arms, packaging lines, printing devices and agricultural automation systems. The I.CH PG603 square flange planetary gearbox is engineered to match premium imported reducers, featuring smooth operation, reliable enclosure sealing and long-service lubrication that cuts routine maintenance work for end users. Conventional gear reducers adopt loose assembly standards, which easily trigger mechanical shaking, positioning deviation and accelerated component wear during long-term operation. In contrast, high-precision servo planetary gearboxes require full assembly inside temperature-controlled dust-free workshops. Tiny misalignments formed during assembly will accumulate and evolve into persistent operational defects over time. This article outlines the complete standardized assembly sequence of I.CH square flange planetary gearboxes, illustrating how each manufacturing stage contributes to steady, long-lasting performance. Automation engineers, system integrators and equipment buyers will learn to distinguish premium transmission products from generic alternatives through assembly specifications, and understand why the PG603’s refined assembly workflow delivers consistent stable performance under continuous round-the-clock production scenarios.
A gearbox’s operational reliability is determined long before component fitting takes place. Flawed raw parts cannot deliver smooth transmission no matter how carefully they are assembled afterwards. Every internal part of the PG603 undergoes dual verification and thorough cleaning within a dedicated clean workshop, laying the groundwork for steady rotation and minimal idle clearance. Technicians use professional measuring tools to check dimensional accuracy of all parts including flange housing, drive gears, carrier frames, bearings, connecting hubs and sealing accessories. All gears are forged from high-strength alloy steel with fine surface grinding, where surface smoothness and meshing compatibility are strictly controlled to evenly distribute driving force during operation. Professional cleaning equipment removes residual machining oil and fine metal shavings. Cleaned components are sealed and stored to prevent secondary dust contamination. Specialized lubricant is pre-tested and reserved for later filling, supporting tight enclosure sealing and infrequent maintenance. All substandard parts are discarded and kept off assembly lines entirely.
Q1: Why must PG603 parts be processed inside dedicated dust-free workshops?
A1: Tiny metal particles trapped between gear surfaces create persistent noise, internal bearing damage and growing idle clearance during long-term operation. Clean workshop environments eliminate such contaminants that ruin stable precision performance. Q2: What negative outcomes occur if unqualified gears move into assembly stages?
A2: Inconsistent gear surface finishing creates unbalanced force distribution during power transfer. This leads to stronger mechanical vibration, localized abrasion on gear surfaces and drastically shortened overall service life of the finished reducer.
The planet carrier assembly governs the reducer’s structural rigidity and balanced force distribution, which stands as a key advantage of the PG603 dual-support output framework. This production step integrates planetary gears, rolling bearings and fixed pins into one unified carrier module. Workers fit precision rolling bearings into each planetary gear bore, then use temperature-stabilized hydraulic presses to install hardened fixing pins through bearing inner rings, avoiding deformation caused by manual hammer impact. Anti-seize coating is applied on pin surfaces to sustain stable lubrication throughout the product’s lifespan. All planetary gears go through matching screening to guarantee consistent surface thickness, while retaining circlips lock gears axially to prevent shifting during frequent forward and reverse rotation. Technicians test carrier rotation smoothness to ensure aligned rotation centers for all planetary gears. Any stuttering or jitter during trial rotation means disassembly and re-matching of components are required. This integrated carrier module strengthens the whole unit’s resistance to deformation when bearing sudden impact loads during dynamic equipment movement.
Q1: What performance benefits come from matching and screening planetary gears before assembly?
A1: Uniform gear thickness evenly spreads driving force across all planetary wheels. It avoids partial overload conditions and lowers operational noise and surface abrasion for machinery running nonstop such as CNC equipment and robotic arms.
Q2: Why hydraulic presses instead of manual hammering for pin installation?
A1: Impact force from hammering warps fixed pins and distorts bearing inner rings. Such deformation creates alignment errors that weaken the unit’s structural stability and increase idle clearance during operation.
The sun gear serves as the power input connector linking servo motor shafts, and its alignment directly decides the base level of idle clearance control. Laser positioning fixtures are used to mount the sun gear for PG603 standard reduction configurations, avoiding lateral pressure that generates eccentric vibration. Alignment marks etched on sun and planetary gear surfaces standardize meshing phases to reduce positioning errors from repeated servo movement cycles. The integrated planet carrier module is concentrically fitted around the sun gear, with ultra-thin adjusting gaskets placed between the carrier and input hub to fine-tune axial gaps — a critical step to achieve minimal idle clearance. Static clearance testing follows assembly: technicians lock the output end and rotate the input hub to measure free angular travel. Improper gasket thickness causes two typical functional failures: overly wide gaps lead to unstable positioning, while overly tight meshing creates friction overheating under heavy driving force. Standardized gasket calibration eliminates both risks during mass manufacturing.
Q1: How do adjusting gaskets help maintain low idle clearance for PG603 gearboxes?
A1: Gaskets accurately adjust the space between meshing gear surfaces. Thicker gaskets widen gaps and increase idle travel, while thinner ones narrow gaps to hit precision standards. A micro thin lubricant layer gap is preserved to accommodate minor thermal expansion during equipment operation.
Q2: Will misaligned gear alignment marks hurt servo equipment precision?
A2: Yes. Unmatched meshing phases generate periodic transmission deviations, which cause positioning inaccuracies on CNC machines and unstable motion for articulated robotic joints.
The internal ring gear encloses the full planetary transmission set and connects with the square flange housing, while bearing and sealing installation delivers robust enclosure protection and strong load-bearing capacity for the PG603 model. Vertical alignment fixtures slide the sun-carrier module into the finely polished ring gear bore to prevent scratches on gear surfaces, and the ring gear is securely pressed into the square flange housing. Mounting hole positions on the flange surface are precisely calibrated to ensure flat contact for seamless pairing with all mainstream servo motors. Oversized dual-support output bearings are thermally fitted into the output housing to avoid structural distortion, enabling the reducer to withstand heavy radial and axial dynamic loads during high-speed acceleration and deceleration. Shaft seals, O-rings and housing gaskets are installed sequentially, with all sealing contact surfaces coated with compatible lubricant to stop dry friction and seal tearing. Every gasket joint undergoes visual inspection to block hidden leakage points. The dual-bearing framework reinforces overall structural rigidity and restricts angular distortion under sudden torque fluctuations from fast-moving automated machinery.
Q1: Why does PG603 adopt dual-support output bearings instead of single bearing layouts?
A1: The wide-span dual-bearing structure greatly improves overall rigidity. It effectively resists structural deformation under sudden torque shifts and enables the reducer to bear full rated radial and axial dynamic loads in long-term automation production.
Q2: How does assembly guarantee reliable dust and liquid protection for PG603?
A2: All split housing seams, shaft gaps and flange contact surfaces are fully fitted with matched sealing components pre-coated with lubricant. This eliminates open gaps that allow dust, moisture penetration or internal lubricant leakage during field use.
Long-term maintenance-free lubrication stands as a core competitive advantage of the I.CH PG603 series, achieved through controlled lubricant filling during final assembly. Technicians inject a fixed volume of high-stability lubricant customized to the gearbox’s overall size. Excessive lubricant creates internal rotational resistance and reduces transmission smoothness, while insufficient filling fails to form complete protective layers over gear surfaces and speeds up internal component wear. The square flange front cover is fastened with cross-diagonal torque sequencing to avoid uneven housing deformation that damages sealing integrity. Calibrated torque wrenches distribute clamping force evenly across the entire flange plane. The input clamping screw is pre-adjusted through side access openings to simplify vertical servo motor installation for system integrators. After housing assembly, manual rotation testing verifies smooth turning and rules out abnormal grinding noise before final testing.
Q1: Why strictly control lubricant filling volume during PG603 Planetary Gearbox assembly?
A1: Too much lubricant builds internal resistance and weakens smooth power transfer. Too little lubricant cannot form a full protective film covering gear tooth surfaces, shortening the usable lifespan of all internal transmission components.
Q2: What advantages come from cross-diagonal bolt tightening for square flange housings?
A1: Even distributed clamping force prevents uneven housing bending, which would crack sealing gaskets and break the unit’s full dust and liquid resistance protection during on-site operation.
Every fully assembled PG603 gearbox goes through comprehensive bench testing before packaging to validate all functional indicators shaped by assembly craftsmanship. Mandatory tests cover idle clearance inspection, no-load noise screening, smooth transmission performance testing, dynamic load simulation and pressure tightness checks to verify complete sealing performance. Units failing clearance, noise or sealing standards are fully disassembled to trace hidden alignment flaws instead of partial touch-up repairs. Qualified reducers receive model marking, surface identification labels and anti-rust protective coating. Custom motor interface adjustments can be finished per individual client requirements before shipment.
Q: Why fully disassemble non-compliant gearboxes rather than partial repairs?
A: Minor alignment defects formed in different assembly stages accumulate and damage long-term operational stability. Partial adjustments cannot fully eliminate hidden risks in gear meshing, sealing or bearing fitting.
The refined assembly workflow of I.CH PG603 square flange planetary gearboxes proves that smooth, low-maintenance servo reducers rely on rigorous control across every assembly phase, from cleanroom component inspection to final bench performance verification. Standardized production processes lock in all core strengths of the PG603 series, making it a dependable alternative to imported premium reducers for CNC equipment, robotic arms, food and printing automation that demands consistent motion precision and long-term trouble-free running.
