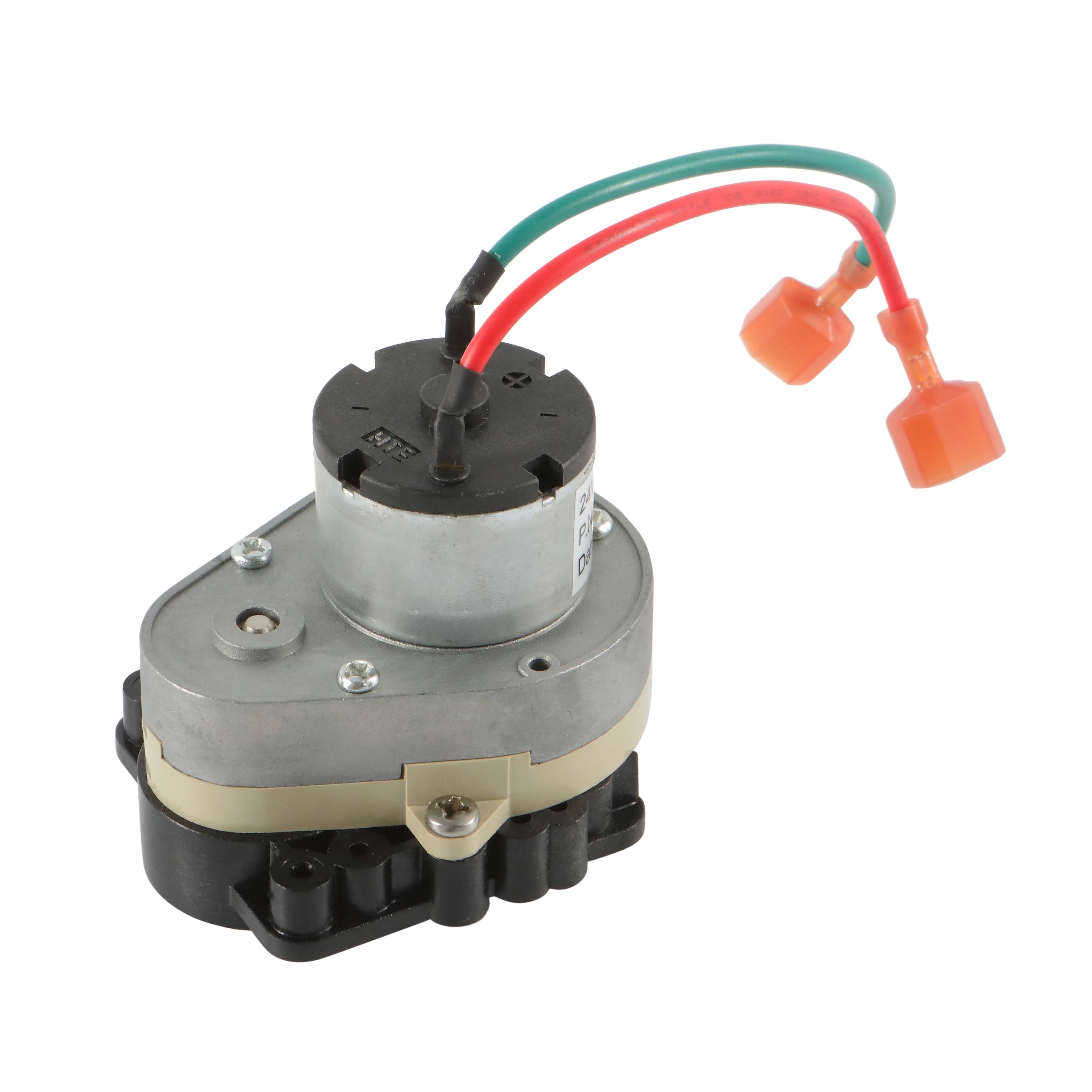

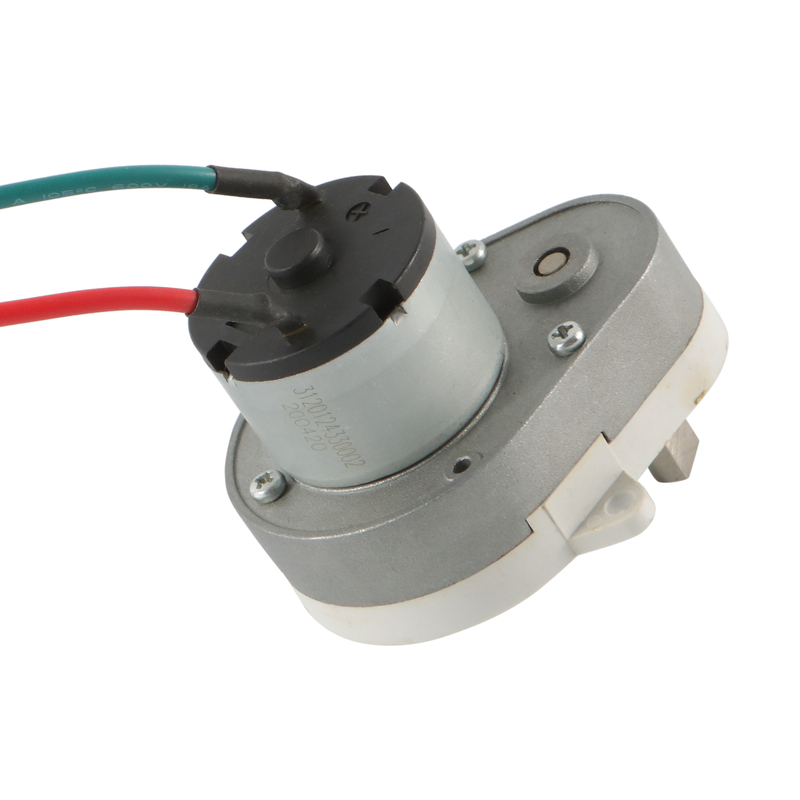

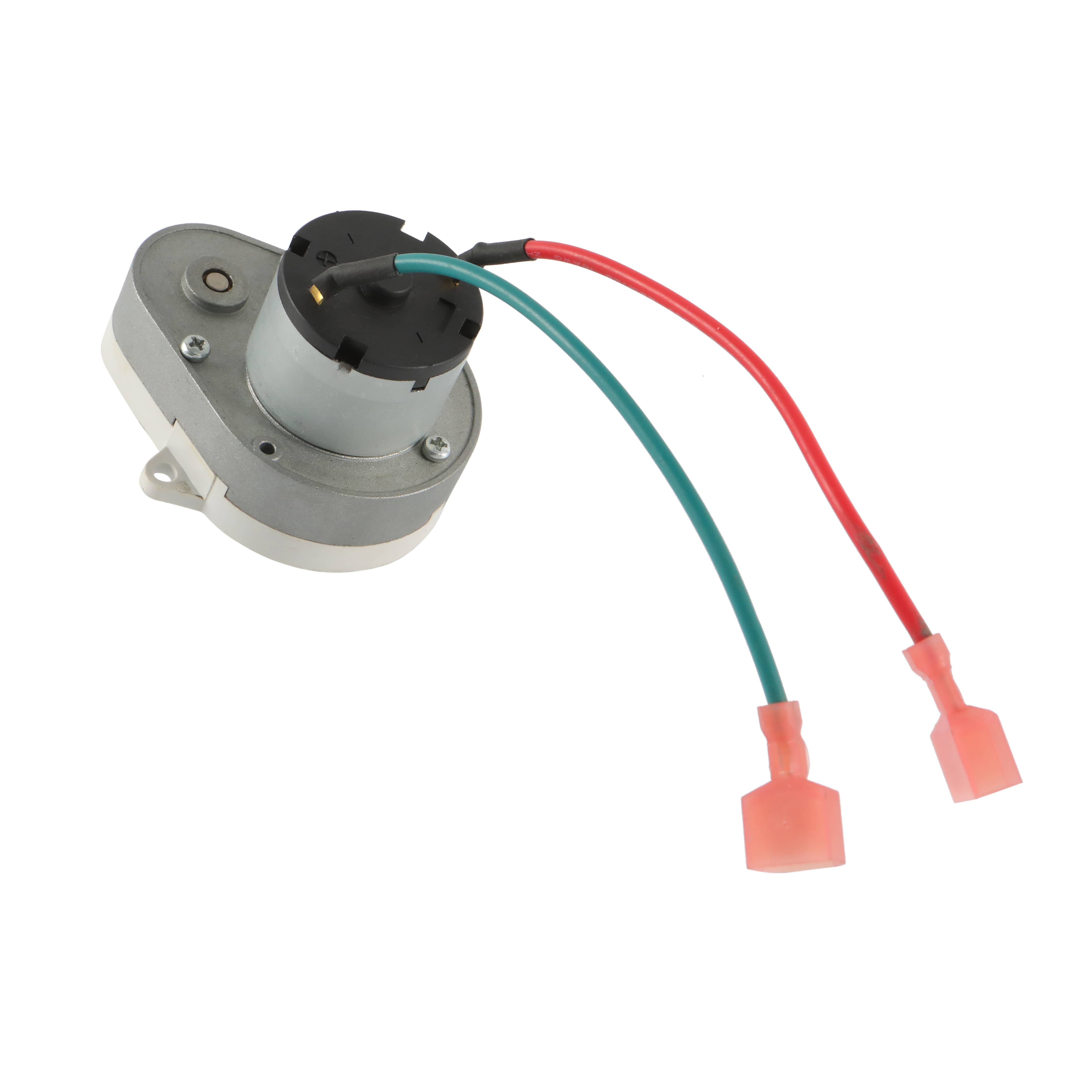

48mm Reducer Motor

• Manufacturer Part Number: D482G3
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:10~1:2700
• DC Gearhead Motor Voltage: 12V, 24V
• DC Gear Engine Size: 48mm
• Application: Vending Machine Motor, Coffee Machine Motor
Quantity:
  • D482G3(48mm)
  • I.CH

32mm DC Geared Motor integrated a 48mm spur gearbox of 1:10 to 1:2700 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification

MODEL

VOLTAGE
V
NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
D482-3002700A 12 2.3 80 2 30 150 600 30-60(Adjustable)
D482-3002700B 24 2.3 40 2 30 90 600

Gear Ratio
Number of stages 5 7
Gear ratio i 300 640 800 1200 1800 2700
Length of gearbox L (mm) 19.5

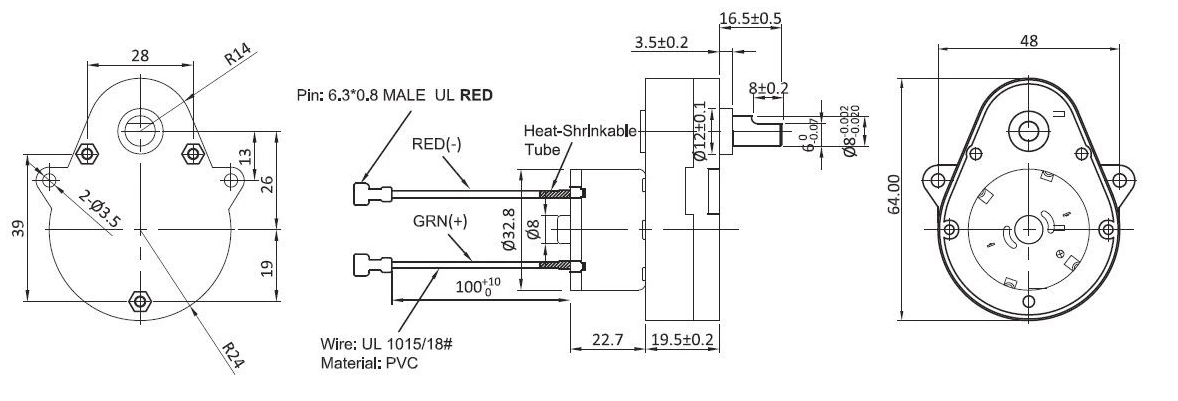

Mechanical Dimensions
D482G3 DWG

Encoder
111

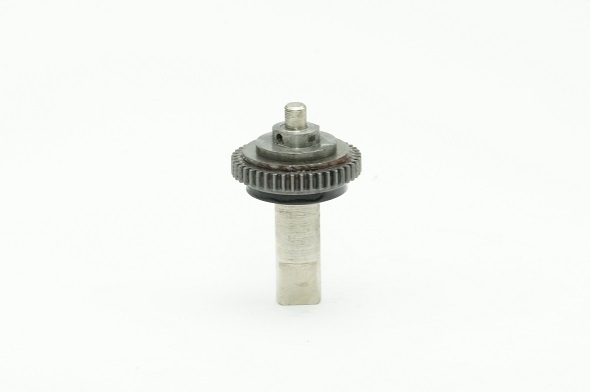

Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 5 7
Gear ratio i 300 640 800 1200 1800 2700
Length of gearbox L (mm) 19.5

Motor
Brush Motor, Brushless Motor, Stepper Motor

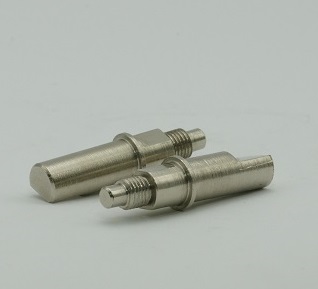

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D482G3.pdf
