Medical Instrument Planetary Step Motor With Gearbox

• Manufacturer Part Number: HP861 • Motor Type: Planetary Gearbox Stepper Motor • Frame Size: 86x86mm Geared Stepper Motor Nema 34 Mounting • Step Angle: 1.8deg • Gearbox Effiency: 90%---95% • Application: Medical Equipment Motor
Availability:
Quantity:
  • HP861

  • I.CH

  • NEMA 34 Stepper Gear Motor

Description of Planetary Step Motor With Gearbox

Stepper motor with planetery gearbox has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, beautiful appearance, light structure, accurate positioning ,easy installation, and so on.

Motor Electrical Specification

Series Model

Step Angle ( o )

L(mm)

Rated Current (A)

Phase Resistance (Ω)

Phase Inductance (mH)

Holding Torque(N.m)

Lead Wire (NO.)

Motor Weight ( kg)

HP861-30070

1.8

66

7

0.16

0.9

3

4

2

HP861-45070

1.8

78

7

0.2

1.6

4.5

4

2.5

HP861-85070

1.8

114

7

0.33

3.2

8.5

4

3.5

HP861-120070

1.8

150

7

0.4

4.8

12

4

4.2

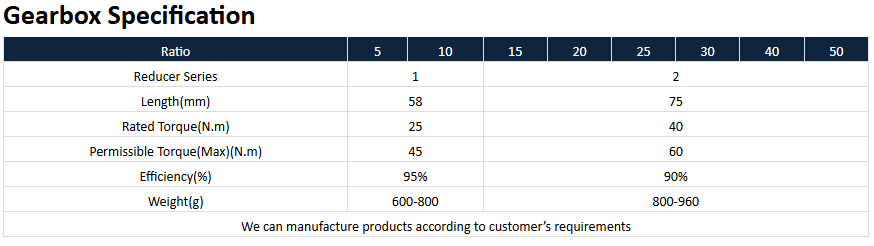

Gearbox Specification

Ratio

5

10

15

20

25

30

40

50

Reducer Series

1

2

Length(mm)

58

75

Rated Torque(N.m)

25

40

Permissible Torque(Max)(N.m)

45

60

Efficiency(%)

95%

90%

Weight(g)

600-800

800-960

We can manufacture products according to customer’s requirements


Planetary Medical Instrument Motor With Gearbox
