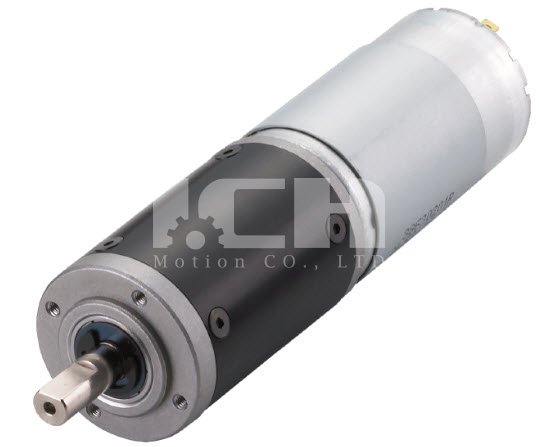

38mm DC Planetary Gearmotor

• Manufacturer Part Number: DP384P
• Gearbox Type: Planetary Geared box with Powder Metallurgy Gear
• Gear Ratio:1:5~1:721
• Electric Planetary Reducer Size: 36mm
• Ball bearing of shaft bearings in most series is available.
• OEM Custom modifications is available.
• Application: Automatic Window Bind Motor,
Medical Instrument Motor
Availability:
Quantity:
  • DP384P GearMotor

  • I.CH

  • 38mm Reducer Motor

The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 30kg.cm

Gear Motor Torque & Speed

Reduction
 ratio
1/51/141/191/271/511/711/1001/1391/1891/2641/5161/721
12VRated
torque(Kg.cm)
12.43.34.77.610152023253030
Rated
speed(rpm)
11004203002101108158413022.511.68.4
24VRated
torque(Kg.cm)
1.12.73.75.28.512162025253030
Rated
speed(rpm)
10503902802001057655412922.511.68.4

Rotation
direction
CCW

Length
(L-mm)
33.141.850.559.2

• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.

• Modified versions for extended temperature and special environmental conditions are available.


DC Motor Specification
Rated volt
(V)
Rated torque
(g.cm)
Rated speed
(rpm)
Rated current
(mA)
No load speed
(rpm)
No load current
(mA)
Weight
(g)
12 250 5800 <=1600 6400 <=300 264
24 280 5500 <=900 6400 <=160 266

D383P-01&02电机曲线

                                                     Mechanical Dimensions
D383P-01&02



Full Datasheet

D363P-01&02.doc
