42mm Planetary Gearbox with Metal Gear

Series: P423C
Output Torque: 3.0 to 30.0Kg.cm
Output Shaft: D-shaft, Round shaft, H-shaft
Bearing Type: Oil bearing or Ball bearing
Suitable Motor: Carbon Brush Motor
Reduction Ratio: 1:4 to 1:2500
Application: Precision Instrument, ATM, Industrial Machine Tool

Availability:

Quantity:



Inquire Add to Basket

Model:
P423C

As trusted planetary gearbox manufacturers, we present the 42mm Planetary Gearbox: robust torque delivery, precise transmission, and durable build. Optimized for industrial automation, robotics, and machinery—combining reliability and performance that defines leading planetary gearbox manufacturers.

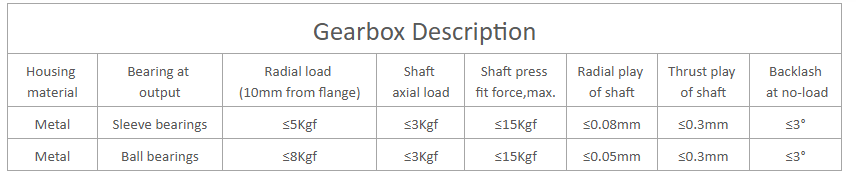

42mm planetary gearbox description

42mm Planetary gearbox

42mm Planetary Gearbox with Bevel Gear
