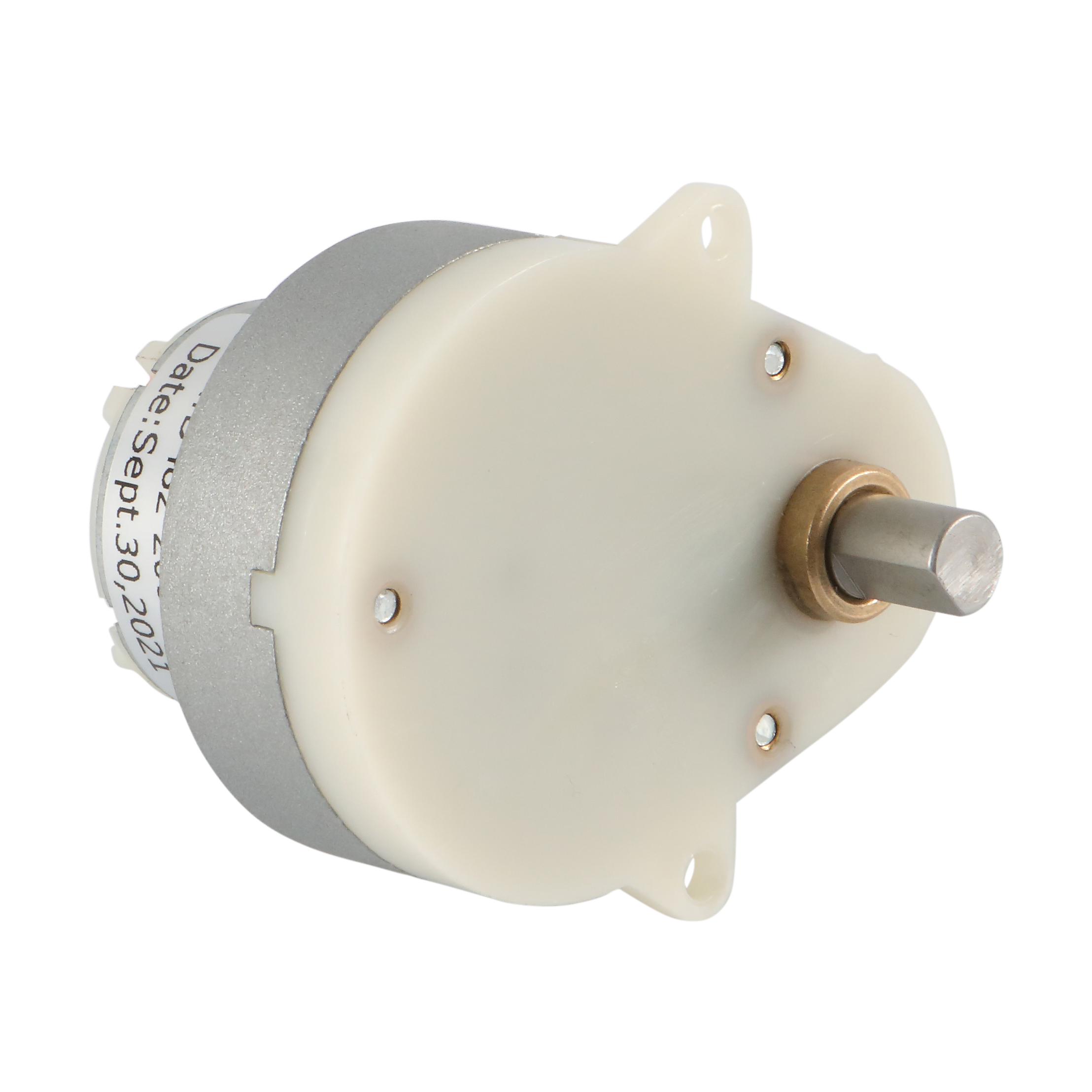

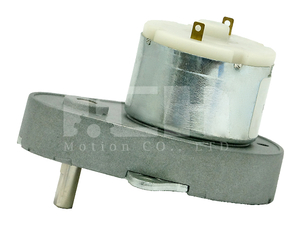

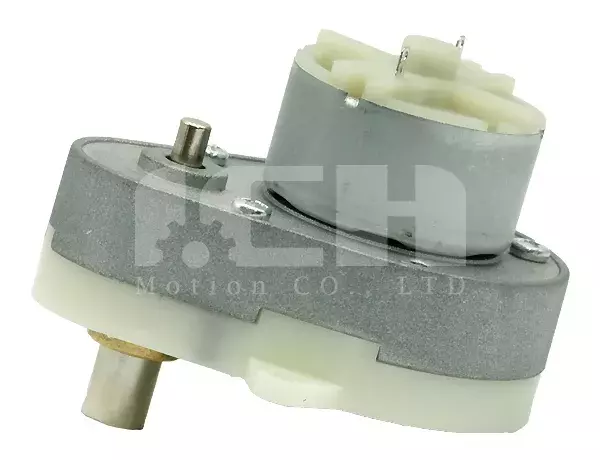

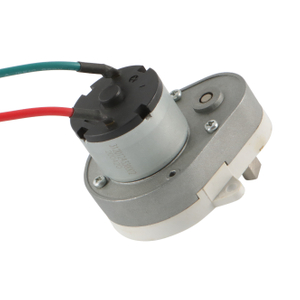

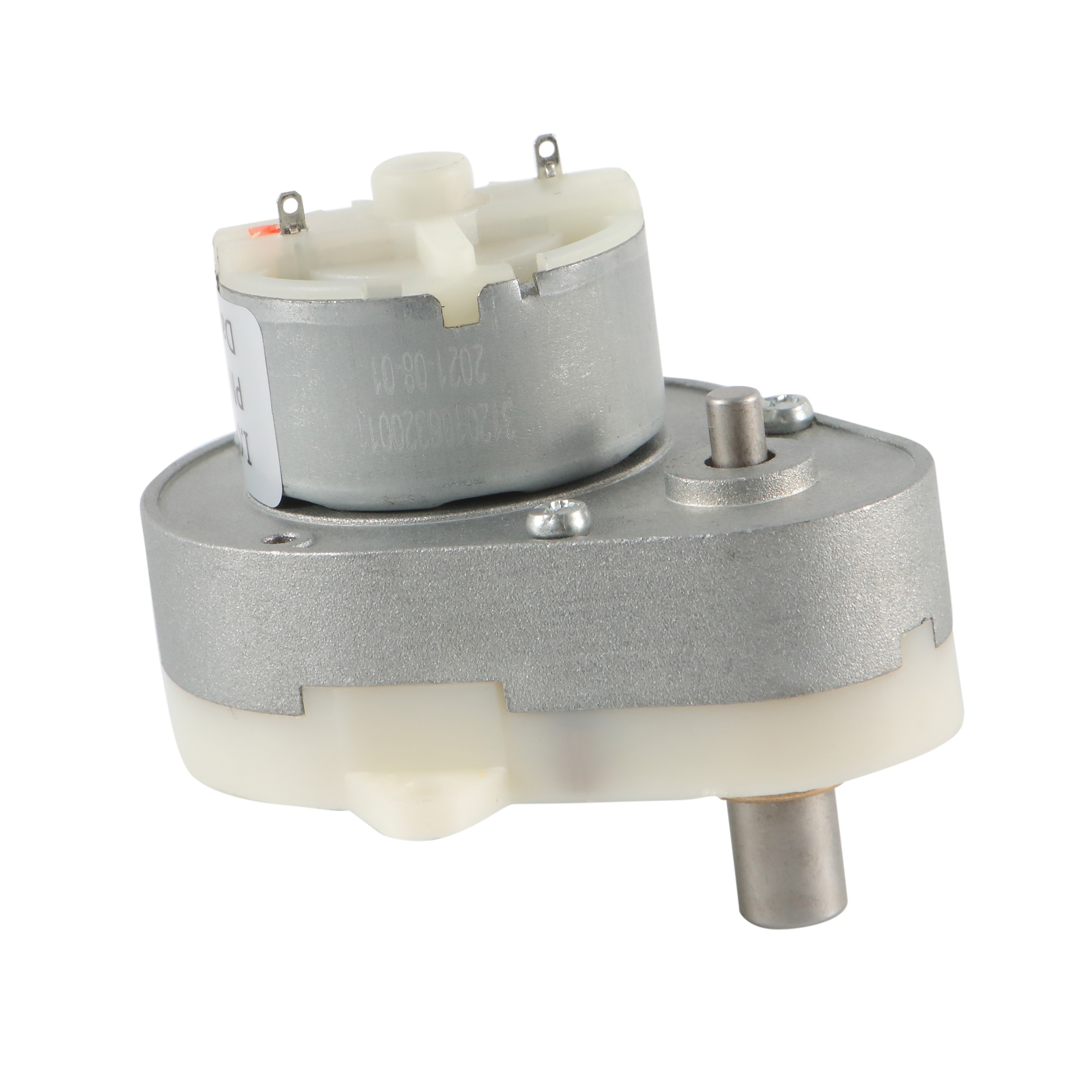

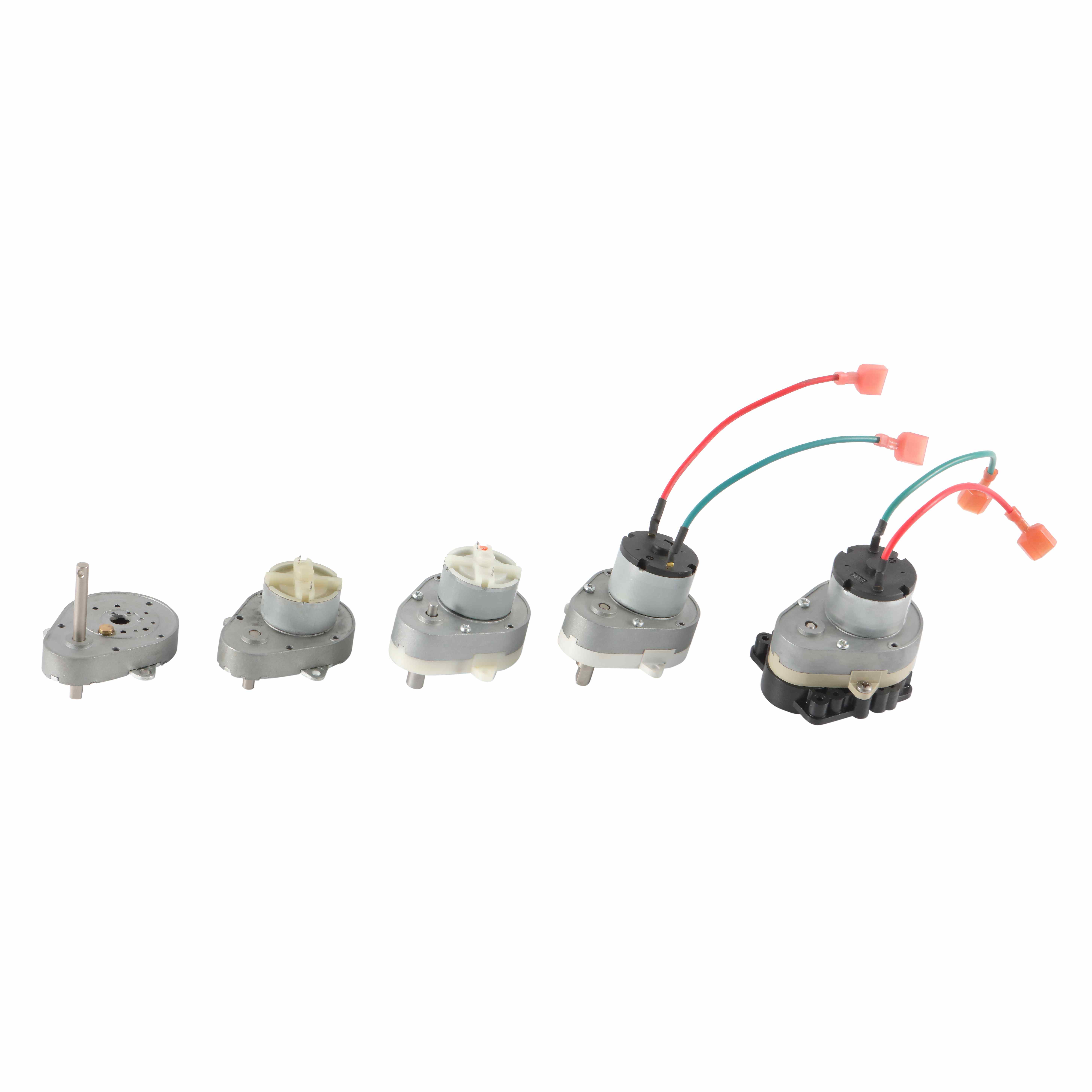

48mm DC Geared Motor

• Manufacturer Part Number: D482G2 • Gearbox Type: Spur Gearbox • Gear Ratio:1:10~1:2700 • DC Gearhead Motor Voltage: 6V,12V, 24V • DC Gear Reducer Size: 48mm • Application: Automobile Motor, Vending Machine Motor
Availability:
Quantity:
  • D482G2(48mm)

  • I.CH

Description of 48mm DC Geared Motor

32mm DC Geared Motor integrated a 48mm spur gearbox of 1:10 to 1:2700 gear ratio. It is a good solution to application that with limited space but low speed and high torque.


Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D482-06009024.06060456.0400280015.01200
D482-15045024.013601015.0400150025.01200
D482-07022512.047120387.0600270045.02500
D482-0200906.03540262.01805307.0600


Gear Ratio
Number of stages234567

Gear ratio i
1030903029002050
 4512034012002700
 6022545415003375
Length of gearbox L (mm)12.5

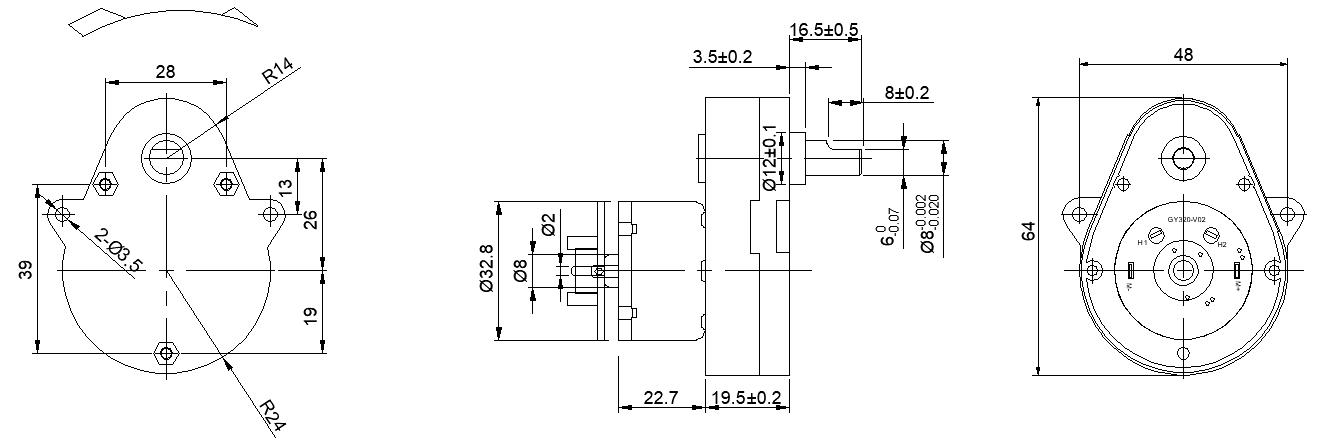

Mechanical Dimensions
48mm DC Geared Motor



Encoder
111
Clutch

Ratio of  Gearbox

Gear Ratio
Number of stages 2 3 4 5 6 7

Gear ratio i
10 30 90 302 900 2050
  45 120 340 1200 2700
  60 225 454 1500 3375
Length of gearbox L (mm) 12.5
