D202A2
I.CH

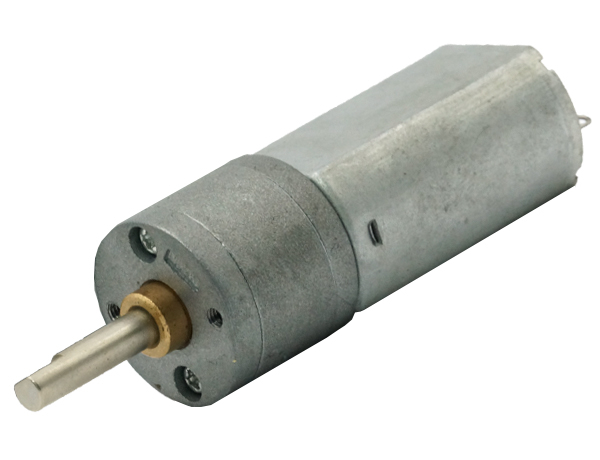

20MM DC Gear Motor
Description
When the user chooses the motor, the single motor is often unable to meet the demand for too high speed or too low torque. So, using the DC motor with a gearbox is appropriate. In terms of gearbox type, the choice of small spur gear motor is the most appropriate and direct scheme.
Advantage
1, All-metal cutting gear, long life
2, Encoder can provide
3, Different type of oil or grease to lubricate
4, Multiple materials to (housing, gear) choose
Gearbox Specification
| Number of stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio i | 10 | 25 | 50 | 100 | 250 |
| 12.5 | 31.25 | 62.5 | 125 | 312.5 | |
| 78.1 | 156.25 | 390.6 | |||
| 195.3 | 488.3 | ||||
| Length of gearbox L (mm) | 16.0 | 17.5 | 19.0 | 20.5 | |
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
| D202-005010 | 6.0 | 240 | 80 | 190 | 0.5 | 450 | 1000 | 2.0 | 2000 |
| D202-018125 | 12.0 | 80 | 90 | 65 | 1.8 | 400 | 1200 | 4.5 | 1800 |
| D202-039062 | 6.0 | 25 | 120 | 20 | 3.9 | 450 | 800 | 6.0 | 2000 |
| D202-035156 | 12.0 | 9 | 40 | 7 | 3.5 | 90 | 250 | 8.0 | 500 |
| D202-065195 | 24.0 | 19 | 50 | 15 | 6.5 | 180 | 1000 | 8.0 | 800 |
