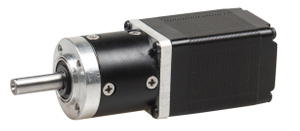

The DG285 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.

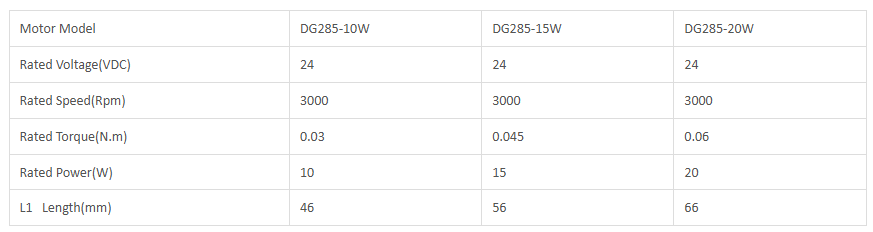

Electrical Specification
Motor Model
DG285-10W
DG285-15W
DG285-20W
Rated Voltage(VDC)
24
24
24
Rated Speed(Rpm)
3000
3000
3000
Rated Torque(N.m)
0.03
0.045
0.06
Rated Power(W)
10
15
20
L1 Length(mm)
46
56
66

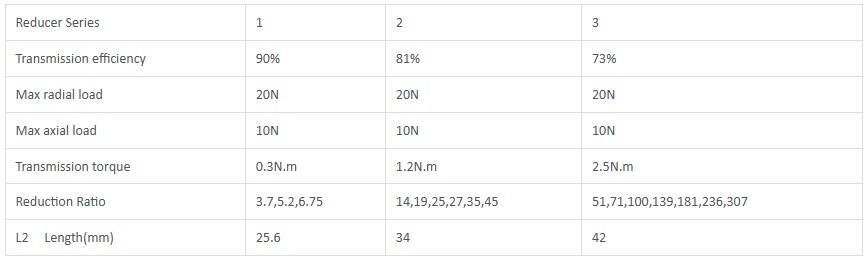

Gearbox Electrical Specifications
Reducer Series
1
2
3
Transmission efficiency
90%
81%
73%
Max radial load
20N
20N
20N
Max axial load
10N
10N
10N
Transmission torque
0.3N.m
1.2N.m
2.5N.m
Reduction Ratio
3.7,5.2,6.75
14,19,25,27,35,45
51,71,100,139,181,236,307
L2 Length(mm)
25.6
34
42
*Note: We can manufacture products according to customer’s requirements.
Description
The DG285 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.
Electrical Specification
Motor Model
DG285-10W
DG285-15W
DG285-20W
Rated Voltage(VDC)
24
24
24
Rated Speed(Rpm)
3000
3000
3000
Rated Torque(N.m)
0.03
0.045
0.06
Rated Power(W)
10
15
20
L1 Length(mm)
46
56
66
Gearbox Electrical Specifications
Reducer Series
1
2
3
Transmission efficiency
90%
81%
73%
Max radial load
20N
20N
20N
Max axial load
10N
10N
10N
Transmission torque
0.3N.m
1.2N.m
2.5N.m
Reduction Ratio
3.7,5.2,6.75
14,19,25,27,35,45
51,71,100,139,181,236,307
L2 Length(mm)
25.6
34
42
*Note: We can manufacture products according to customer’s requirements.
