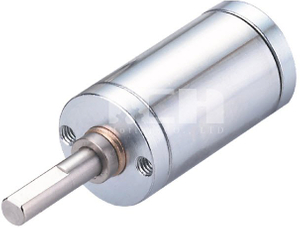

10mm Planetary Gearbox

Series: P101
Rated Torque: 0.05-0.6Kg.cm
Output Shaft: D-shaft, Round shaft, H-shaft
Bearing: Oil bearing or ball bearing
Suitable Motor: Brushed DC Motor
Reduction Ratio: 1:4-1:4096
Environment Temperature: -15℃ ~ 70℃
Application: Industrial Machine Tool, Precision Instruments, Vending Machine, ATM
Availability:
Quantity:
  • P101

  • I.CH

  • 10mm Planetary Gearbox

High Efficiency 10mm Planetary Gearbox for Space-Limited Applications

The 10mm Planetary Gearbox features compact structure and high efficiency, delivering smooth running and superior torque transmission. Its 10mm miniature size makes it ideal for space-constrained scenarios.

Adopting classic planetary gear structure with a central sun gear, several planet gears and an outer ring gear, it achieves large gear reduction ratio and boosted torque output. Even load distribution on planet gears further enhances its durability and working efficiency.
Built with sturdy materials and exquisite craftsmanship, the 10mm Planetary Gearbox fits diverse industrial fields and practical uses.

As a multifunctional and high-performance gear unit, it provides powerful torque within a tiny footprint. Great durability, high precision and stable running make it a top pick for a wide range of industrial applications.



10mm Planetary Gearbox




 Motor Shaft Pinion Specification

           ModuleNo. of teethPressure angleHole diameterReduction ratio.
               0.2        12           20°        0.99



33

Mechanical Dimensions

Planetary Gearbox


Full Datasheet

D103.doc
