24v Brushless DC Planet Gear Motor

• Gearbox Type: Planetary Geared box with Powder Metallurgy Gear
• Gear Ratio:1:5~1:721
• Electric Planetary Reducer Size: 36mm
• Ball bearing of shaft bearings in most series is available.
• OEM Custom modifications is available.
• Application: Automatic Window Bind Motor,
Medical Instrument Motor
Availability:
Quantity:
  • DP363P-01&02
  • I.CH
  • 36mm Planetary Gear Motor

Description

Size 12mm, 13mm, 16mm to 36mm DC Motors with Planetary Reduction Box, which Rate Voltage is 3V, 6V, 12V and 24VDC. Applications:

1, 3D Printer

2, Robots

3, Packing Machine

4, Smart Lock

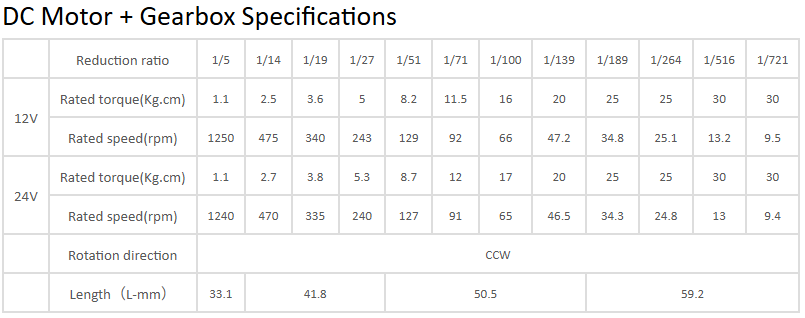

DC Motor + Gearbox Specifications


Reduction ratio

1/5

1/14

1/19

1/27

1/51

1/71

1/100

1/139

1/189

1/264

1/516

1/721

12V

Rated torque(Kg.cm)

1.1

2.5

3.6

5

8.2

11.5

16

20

25

25

30

30

Rated speed(rpm)

1250

475

340

243

129

92

66

47.2

34.8

25.1

13.2

9.5

24V

Rated torque(Kg.cm)

1.1

2.7

3.8

5.3

8.7

12

17

20

25

25

30

30

Rated speed(rpm)

1240

470

335

240

127

91

65

46.5

34.3

24.8

13

9.4


Rotation direction

CCW


LengthL-mm

33.1

41.8

50.5

59.2

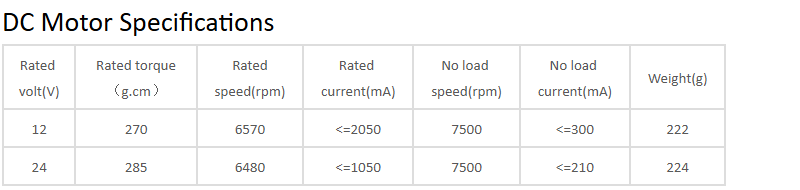

DC Motor Specifications

Rated
volt(V)

Rated torque
g.cm

Rated
speed(rpm)

Rated
current(mA)

No load
speed(rpm)

No load
current(mA)

Weight(g)

12

270

6570

<=2050

7500

<=300

222

24

285

6480

<=1050

7500

<=210

224


Planet Brushless DC 24v Gear Motor
