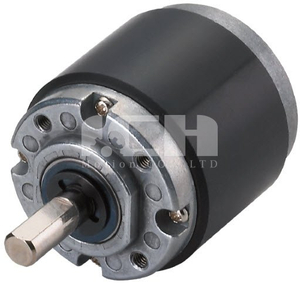

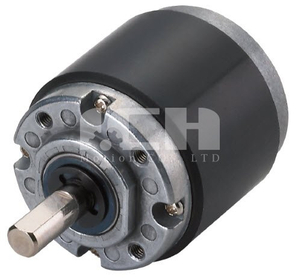

32mm Planetary gearbox

Availability:

Quantity:



Inquire Add to Basket 天猫购买

Model:
P321
Brand:
I.CH

Gearbox Description of 32mm Planetary gearbox
Housing material	Bearing at output	Radial load (10mm from flange)	Shaft axial load	Shaft press fit force,max.	Radial play of shaft	Thrust play of shaft	Backlash at no-load
Metal	Sleeve bearings	≤3Kgf	≤2.5Kgf	≤10Kgf	≤0.08mm	≤0.3mm	≤3°
Metal	Ball bearings	≤3.5Kgf	≤2.5Kgf	≤10Kgf	≤0.05mm	≤0.3mm	≤3°

Customized 12v Planet Motor With Gearbox

Two Speed-ratio Planetary Gearbox

10mm Planetary Gearbox

37mm DC Gear Reducer

Custom Micro DC Motor With Gearbox

Micro 12v Planetary Motor With Gearbox

SUBSCRIBE NOW

We have an independent product design and R&D team, service team and professional quality control team. Welcome to subscribe.

We specialized in researching, developing and servicing electric motors, gearbox and high precision gears with small module. Read more >>

PRODUCT LIST

Leave a Message

QUICK LINK

CONTACT

Add：3B-B302 LianDo U Valley Guli Technology industry partk, #16 Xinggu Road, Jiangning District, Nanjing, P.R. China

Tel：+86 25 5118 0871
Fax：+86 25 5118 0872
Skype：ichmotion
Email：sales@ichmo.com

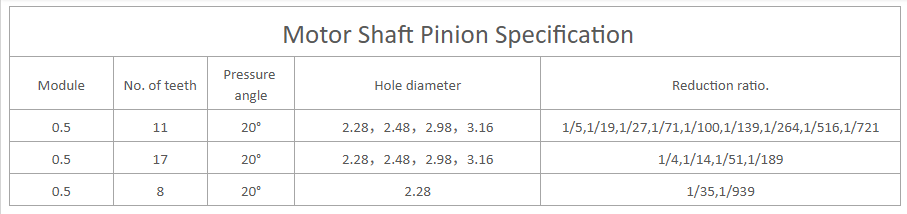

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.5	11	20°	2.28，2.48，2.98，3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.5	17	20°	2.28，2.48，2.98，3.16	1/4,1/14,1/51,1/189
0.5	8	20°	2.28	1/35,1/939

Motor Shaft Pinion Specification
Module	No. of teeth	Pressure angle	Hole diameter	Reduction ratio.
0.5	11	20°	2.28，2.48，2.98，3.16	1/5,1/19,1/27,1/71,1/100,1/139,1/264,1/516,1/721
0.5	17	20°	2.28，2.48，2.98，3.16	1/4,1/14,1/51,1/189
0.5	8	20°	2.28	1/35,1/939

Gearbox Specification
Reduction ratio	1/4	1/5	1/14	1/19	1/27	1/35	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721	1/939
Rated tolerance torque (Kg.cm )	2	2	4	4	6	6	8	8	10	10	12	12	12	12	12
Max momentary tolerance torque (Kg.cm )	6	6	12	12	18	18	24	24	30	30	36	36	36	36	36
Efficiency	80%	80%	70%	70%	70%	70%	60%	60%	60%	60%	50%	50%	50%	50%	50%
Length（L-mm）	20.6	20.6	27	27	27	27	33.4	33.4	33.4	33.4	39.8	39.8	39.8	39.8	39.8
Weight（g）	102	102	122	122	122	122	147	147	147	147	173	173	173	173	173
