DP363P-01&02
I.CH

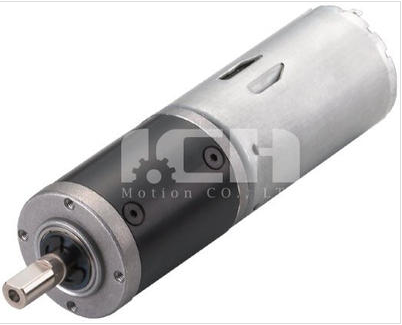

36mm Planetary Gear Motor
Description
The planet gear motor that I.CH supplies which has the feature of low noise and low backlash meets high criteria.
As Chinese supplier, we also provide OEM and ODM services. We provide the custom design as the below data you provide
DC Motor + Gearbox Specifications
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | |
| 12V | Rated torque(Kg.cm) | 1.1 | 2.5 | 3.6 | 5 | 8.2 | 11.5 | 16 | 20 | 25 | 25 | 30 | 30 |
| Rated speed(rpm) | 1250 | 475 | 340 | 243 | 129 | 92 | 66 | 47.2 | 34.8 | 25.1 | 13.2 | 9.5 | |
| 24V | Rated torque(Kg.cm) | 1.1 | 2.7 | 3.8 | 5.3 | 8.7 | 12 | 17 | 20 | 25 | 25 | 30 | 30 |
| Rated speed(rpm) | 1240 | 470 | 335 | 240 | 127 | 91 | 65 | 46.5 | 34.3 | 24.8 | 13 | 9.4 | |
| Rotation direction | CCW | ||||||||||||
| Length（L-mm） | 33.1 | 41.8 | 50.5 | 59.2 | |||||||||
DC Motor Specifications
| Rated volt(V) | Rated torque （g.cm） | Rated speed(rpm) | Rated current(mA) | No load speed(rpm) | No load current(mA) | Weight(g) |
| 12 | 270 | 6570 | <=2050 | 7500 | <=300 | 222 |
| 24 | 285 | 6480 | <=1050 | 7500 | <=210 | 224 |
