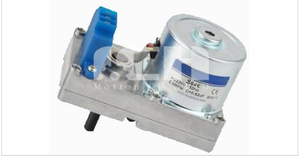

24V AC Synchronous Motor for Fan Coil 49mm

• Manufacturer Part Number: S493 • Motor Type: AC Synchronous Motor • Speed : 1~75rpm • Frequency: 50Hz or 60 Hz • Power: 2.5~7W(24~220VAC) • Torque: Max 70kg.cm • AC Gear Motor Rotation:CW,CCW,Bi-directional • Application: Fan Coil
Availability:
Quantity:
  • S493(49mm)- 50/60Hz

  • I.CH

Specification
ModelOutput speed
(rpm)
Output Torque (kg.cm / lb.in)Voltage
(V.AC)
Current
(A)
Frequency
(Hz)
Input Power
(W)
Noise
(dB)
Rotation
S1 continuousS2
15 minutes
S2
5 minutes
S493-45-1.01.0445 / 3960 / 52.270 / 60.924
*********
110
*********
220
<0.2
**********
<0.05
*********
<0.023
50/60Hz2.5~7<45CW / CCW / Bi-directional
S493-30-1.51.5030 / 2640 / 34.846 / 40
S493-22-2.0222 / 1930 / 2635 / 30.5
S493-18-2.52.518 / 15.724 / 20.928 / 24.4
S493-11-4.0411 / 9.615 / 1317.5 / 15.2
S493-09-4.84.89.4 / 8.212.5 / 10.914.5 / 12.6
S493-09-5.059 / 7.812 / 10.414 / 12.2
S493-08-5.85.87.6 / 6.610 / 8.712 / 10.4
S493-05-9.095 / 4.356.5 / 5.77.8 / 6.8
S493-03-15153 / 2.64 / 3.54.6 / 4
S493-02-25251.8 / 1.572.4 / 2.12.8 / 2.43
S493-02-30301.5 / 1.32 / 1.742.3 / 2
S493-01-45451 / 0.871.3 / 1.131.5 / 1.3
S493-01-60600.751 / 0.871.2 / 1.04
S493-01-75750.60.8 / 0.71.0 / 0.87
Note:  Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2
       Other speed and torque needed, please contact our sale department


Safety
Insulation resistanceDC 500V 100M ohms
Insulation strengthAC1500V, 50Hz/min(220V motor)
Insulation classE(105) / B(130)
EnvironmentTemp.-10~+40 / Humidity:<85
Certification CE ROHS CCC


Mechanical Dimensions
S493 DWG

Custom Shaft
Round Shaft, D-Cut Sahft, H-Cut Shaft, Custom Length

Connector
Molex, Harwin, Tyco/AMP, JST etc.

connector



Leadwires and Cables
Special lengths, Protective hose

wires
Full Datasheet
S493.pdf

Factory Ability
I.CH Motion was established in 2006. We focus on AC Motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories located in Jiangsu province. After years development, we built a great reputation in the overseas market.

Advantages
1. No MOQ limited;
2. Short Lead-Time;
3. Quickly response in time;


Package
-Cartons, pallets package;
-Sea shipping or air shipping;
-Delivery: 3 to 8 weeks.
1  2  3


FAQ
Q: What speed for the 49mm AC motor?
A: We normally make speed of 49mm AC synchronous motor from 1rpm to 75 rpm, it depends on your request, we can also customized the speed.

Q: Where can the synchronous geared motor be used?
A: It can be used in Household Electrical Appliances Motor, such as water valve control.

Q: Can I have samples for testing first?
A: Yes, definitely you can. You can order prototypes for experiment, and our MOQ for batch order is 1000pcs.
