Automatic Awning Planet Gear Motor

32mm DC Planetary Gearbox Motor for Vehicle Awning Retractable Canopy

32mm China Planetary Gearbox Motor with a wide ratio range of 1:10–1:150 is specially engineered for vehicle awnings and retractable canopy systems. Powered by 12V DC, this robust gear motor ensures reliable, low-maintenance performance and can be effortlessly operated via a standard wall rocker switch, ideal for RVs, caravans and outdoor leisure vehicles. Custom flange, shaft and overload protection are available for varied assembly spaces. Optional TVS components suppress voltage spikes for better EMC performance. Anti‑vibration fastener treatment avoids screw loosening. It passes duration and EMC tests; we can benchmark your reference motor for OEM requirements.

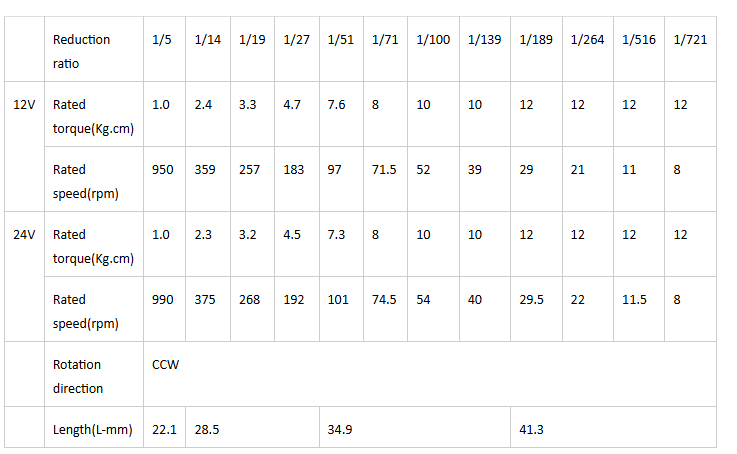

Performance Specifications of 12V 24V 32mm DC Planetary Gear Motor

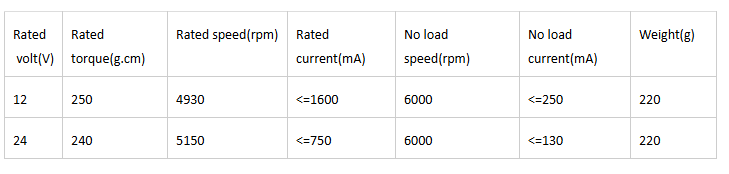

DC Motor Specifications

FAQS:

1.Q:How do we specify the torque and overload requirement for an awning drive motor?

A: Calculate torque for worst-case awning load (fabric + wind) and add safety margin. Distinguish continuous rated torque and peak stall torque. Share your reference motor if available; we benchmark and size gearbox accordingly.

2.Q:What is the difference between a mechanical clutch and thermal (thermistor) overload protection?

A mechanical clutch decouples motor and gearbox at set torque, letting motor run while output stops. Thermal protection cuts power via thermistor when overheated. Selection depends on your awning’s obstruction response requirement.

3.Q:Can the motor be customized to fit our existing product envelope?

Yes. We modify flange, housing, shaft, wires and rear cover to fit your assembly. Our engineers check your 3D files to eliminate interference before sample manufacturing.

4.Q:How do you handle voltage spikes and EMC compliance in DC motors?

We integrate TVS, capacitors and inductors internally to suppress switching voltage spikes. Full EMC testing is performed to confirm compliance before product release.

5.Q:Why do mounting screws loosen under vibration, and how is it addressed?

Operating vibration loosens flange fasteners over time. We use thread locker, controlled tightening torque and optimized joint design to maintain assembly rigidity in life tests.
