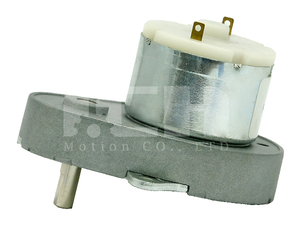

D482G2
I.CH
48MM DC Gear Motor
Description

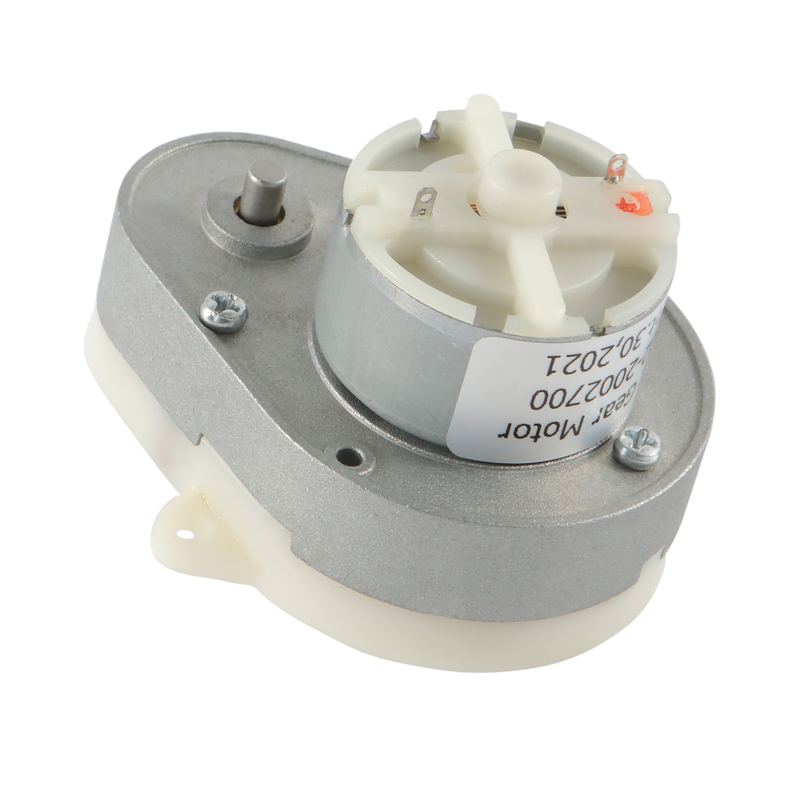

The gear motor listed is one of the 48mm DC Gear motors that I.CH manufactures. Compared with other similar 48mm dc gear motor, this product that I.CH supplies have more optional rated voltage. The voltage of high torque DC electric motor can be 12V or 24V. An important feature is that an integrated design of the motor and ovoid gearhead provides a solution for high torque and low speed. By ovoid gearbox, you can get customized RPM and torque.
Gearbox Specification
| Number of stages | 5 | 7 | ||||
| Gear ratio i | 300 | 640 | 800 | 1200 | 1800 | 2700 |
| Length of gearbox L (mm) | 19.5 | |||||
DC Gear Motor Specification
Model | Rated volt (V) | Rated torque (kg.cm) | Rated speed (rpm) | Rated current (mA) | Output (mW) | Torque at Stall (Kg.cm) | No load speed(rpm) | No load current(mA) |
D482-3002700A | 12.0 | 30.0 | 2.0 | 150 | 600 | 30-60 | 2.3 | 80 |
D482-3002700B | 24.0 | 30.0 | 2.0 | 90 | 600 | 2.3 | 40 |
Description
The gear motor listed is one of the 48mm DC Gear motors that I.CH manufactures. Compared with other similar 48mm dc gear motor, this product that I.CH supplies have more optional rated voltage. The voltage of high torque DC electric motor can be 12V or 24V. An important feature is that an integrated design of the motor and ovoid gearhead provides a solution for high torque and low speed. By ovoid gearbox, you can get customized RPM and torque.
Gearbox Specification
| Number of stages | 5 | 7 | ||||
| Gear ratio i | 300 | 640 | 800 | 1200 | 1800 | 2700 |
| Length of gearbox L (mm) | 19.5 | |||||
DC Gear Motor Specification
Model | Rated volt (V) | Rated torque (kg.cm) | Rated speed (rpm) | Rated current (mA) | Output (mW) | Torque at Stall (Kg.cm) | No load speed(rpm) | No load current(mA) |
D482-3002700A | 12.0 | 30.0 | 2.0 | 150 | 600 | 30-60 | 2.3 | 80 |
D482-3002700B | 24.0 | 30.0 | 2.0 | 90 | 600 | 2.3 | 40 |
