Customized 24v Planetary Motor With Gearbox

• Gearbox Type: Planetary Geared box with Powder Metallurgy Gear
• Electric Planetary Reducer Size: 36mm
• Gear Ratio:1:5~1:721
• Ball bearing of shaft bearings in most series is available.
• Application: Medical Instrument Motor,ATM Machine, Vending Machine, Automatic Window Bind Motor, Medical Equipment, Sew
• OEM Custom modifications is available.
Availability:
Quantity:
  • DP363P-01&02

  • I.CH

  • 36mm Planetary Gear Motor

Description

The planet gear motor that I.CH supplies which has the feature of low noise and low backlash meets high criteria.

 We provide the custom design as the following data you provide.

1, Output Speed (RPM)

2, Output Torque

3, Material of Gear Wheel

4, Gearbox Ratio

5, Shaft Type

As a Chinese supplier, we also provide OEM and ODM services.

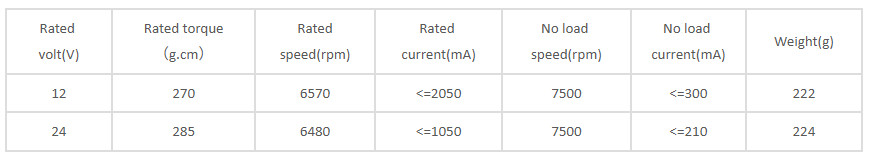

DC Motor Specifications


Rated
volt(V)

Rated torque
g.cm

Rated
speed(rpm)

Rated
current(mA)

No load
speed(rpm)

No load
current(mA)

Weight(g)

12

270

6570

<=2050

7500

<=300

222

24

285

6480

<=1050

7500

<=210

224

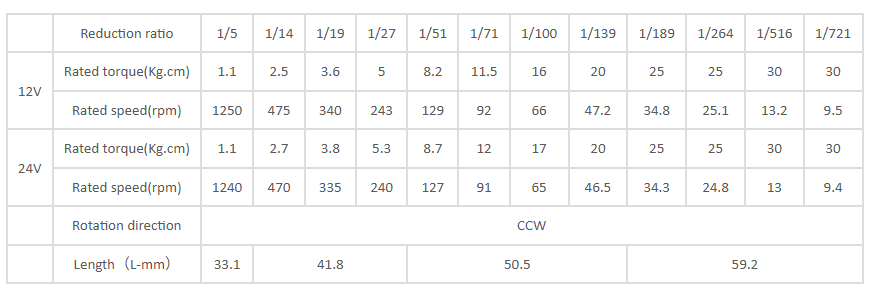

DC Motor + Gearbox Specifications


Reduction ratio

1/5

1/14

1/19

1/27

1/51

1/71

1/100

1/139

1/189

1/264

1/516

1/721

12V

Rated torque(Kg.cm)

1.1

2.5

3.6

5

8.2

11.5

16

20

25

25

30

30

Rated speed(rpm)

1250

475

340

243

129

92

66

47.2

34.8

25.1

13.2

9.5

24V

Rated torque(Kg.cm)

1.1

2.7

3.8

5.3

8.7

12

17

20

25

25

30

30

Rated speed(rpm)

1240

470

335

240

127

91

65

46.5

34.3

24.8

13

9.4


Rotation direction

CCW


LengthL-mm

33.1

41.8

50.5

59.2



Planetary 24v Customized Motor With Gearbox
