32mm Planetary Gearbox Helical Gear

Series: P323H
Output Torque: 4.0 to 12 Kg・cm
Suitable Motor: Brushed DC Motor
Output Shaft: D-shaft, Round shaft, H-shaft
Bearing Type: Oil bearing or Ball bearing
Reduction Ratio: 1:13 to 1:887
Ambient Temperature: -15℃ ~ 70℃
Applications: Industrial Machine Tools, ATM Machines, Precision Instruments, Vending Machines

Availability:

Quantity:



Inquire Add to Basket

Model:
P323H
Brand:
I.CH

High-Precision 2 Stage Planetary Gearbox (32mm) – Compact, durable, and efficient for industrial applications. Custom OEM/ODM solutions available. Delivers reliable torque output and smooth operation. Ideal for gear motors. Boost performance with our premium 2 stage planetary gearbox.

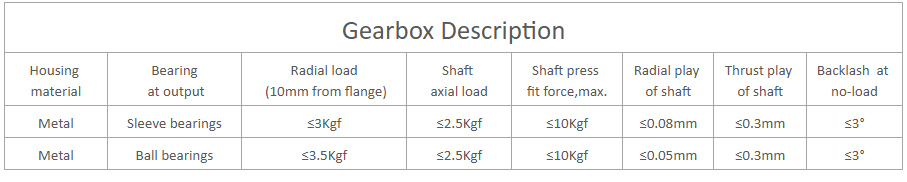

32mm planetary gearbox specification

22mm Planetary gearbox

28mm Planetary gearbox

30mm Planetary gearbox

32mm Planetary gearbox

38mm Planetary gearbox

42mm Planetary Gearbox with Metal Gear
