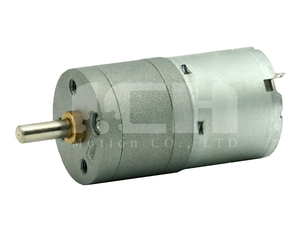

D252A1
I.CH
25mm DC Gear Motor
Description

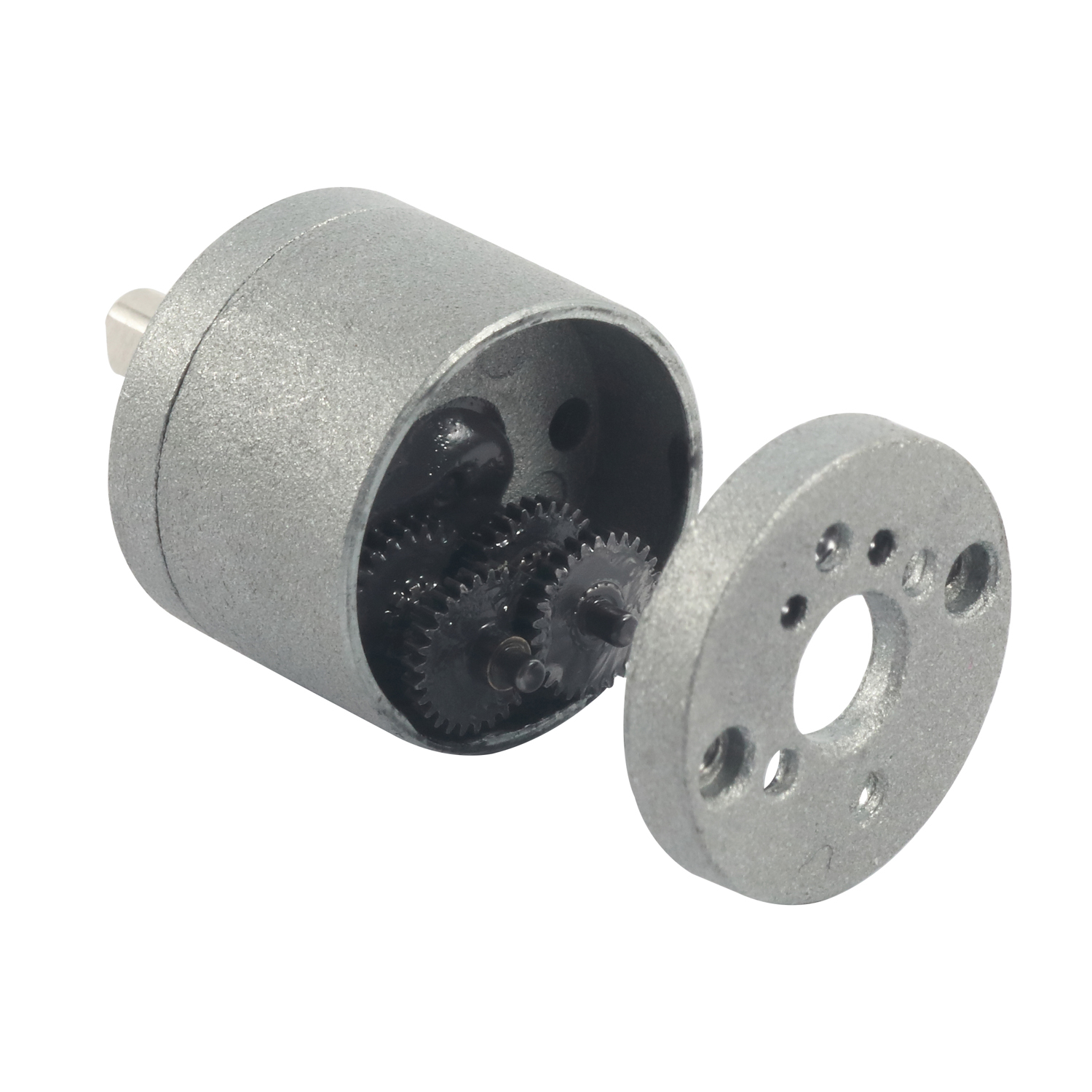

So, for the low rpm gear motor, the scheme that I.CH uses is the brushed motor and spur gearbox. The 25mm gear motor is bigger than 20mm that I.CH manufactures. There is no doubt that its famous feature is low rpm but high torque. For this motor that I.CH supplies, its output shaft can only be single. Meanwhile, gear material can be plastic or metal. If you need a larger motor, 37mm, 48mm can provide. If you have special requirements, we can custom according to your needs.
Gearbox Specification
| Number of stages | 3 | 4 | 5 | 6 | 7 | 8 |
| Gear ratio i | 9.7 | 16.1 | 26.9 | 59.2 | 130.1 | 286.3 |
| 12.5 | 21.3 | 35.5 | 78.1 | 171.8 | 377.9 | |
| 46.9 | 103.1 | 226.8 | 498.9 | |||
| Length of gearbox L (mm) | 19.0 | 21.0 | 23.0 | 25.0 | 27.0 | |
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
| D252-003103 | 6.0 | 65 | 80 | 50 | 0.25 | 160 | 130 | 1.5 | 600 |
| D252-007226 | 3.0 | 15 | 40 | 12 | 0.65 | 90 | 80 | 3.5 | 350 |
| D252-005226 | 6.0 | 30 | 80 | 24 | 0.5 | 160 | 120 | 6.5 | 600 |
| D252-017500 | 3.0 | 5 | 30 | 4 | 1.7 | 60 | 70 | 4.5 | 300 |
