DP283-03&04
I.CH

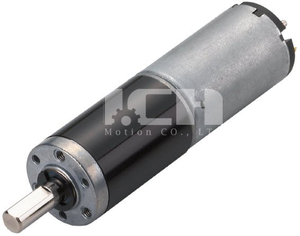

28mm Planetary Gear Motor
Description
Similar to a planetary rotation system, the input shaft drives the sun gears, and then the planet gears are driven. The design of the system lowers the chances of machine breaking down and enhances output capacity. For some special applications, I.CH manufactures 28mm DC motor with a planetary gearbox. Compared with other similar motors in the market, the efficiency of transmission and torque is higher. In terms of backlash, our product is lower.
DC Motor + Gearbox Specifications
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
| 12V | Rated torque (Kg.cm) | 0.32 | 0.75 | 1 | 1.4 | 1.9 | 2.4 | 3.3 | 4.7 | 6.6 | 7.4 | 10 | 10 | 10 | 10 |
| Rated speed (rpm) | 1000 | 375 | 270 | 193 | 148 | 102 | 73 | 52 | 37.3 | 27.5 | 19.7 | 10.5 | 7.5 | 5.7 | |
| 24V | Rated torque (Kg.cm) | 0.38 | 0.9 | 1.2 | 1.7 | 2.3 | 2.8 | 4 | 5.6 | 7.8 | 8.8 | 10 | 10 | 10 | 10 |
| Rated speed (rpm) | 990 | 370 | 265 | 191 | 147 | 101 | 72 | 51.5 | 36.9 | 27.2 | 19.3 | 10.4 | 7.4 | 5.7 | |
| Rotation direction | CCW | ||||||||||||||
| Length （L-mm） | 24.5 | 30.9 | 37.3 | 43.7 | |||||||||||
DC Motor Specifications
| Rated volt(V) | Rated torque （g.cm） | Rated speed (rpm) | Rated current (mA) | No load speed (rpm) | No load current (mA) | Weight(g) |
| 12 | 79 | 5200 | <=500 | 6000 | <=130 | 93 |
| 24 | 94 | 5140 | <=300 | 6000 | <=80 | 91 |
