Description

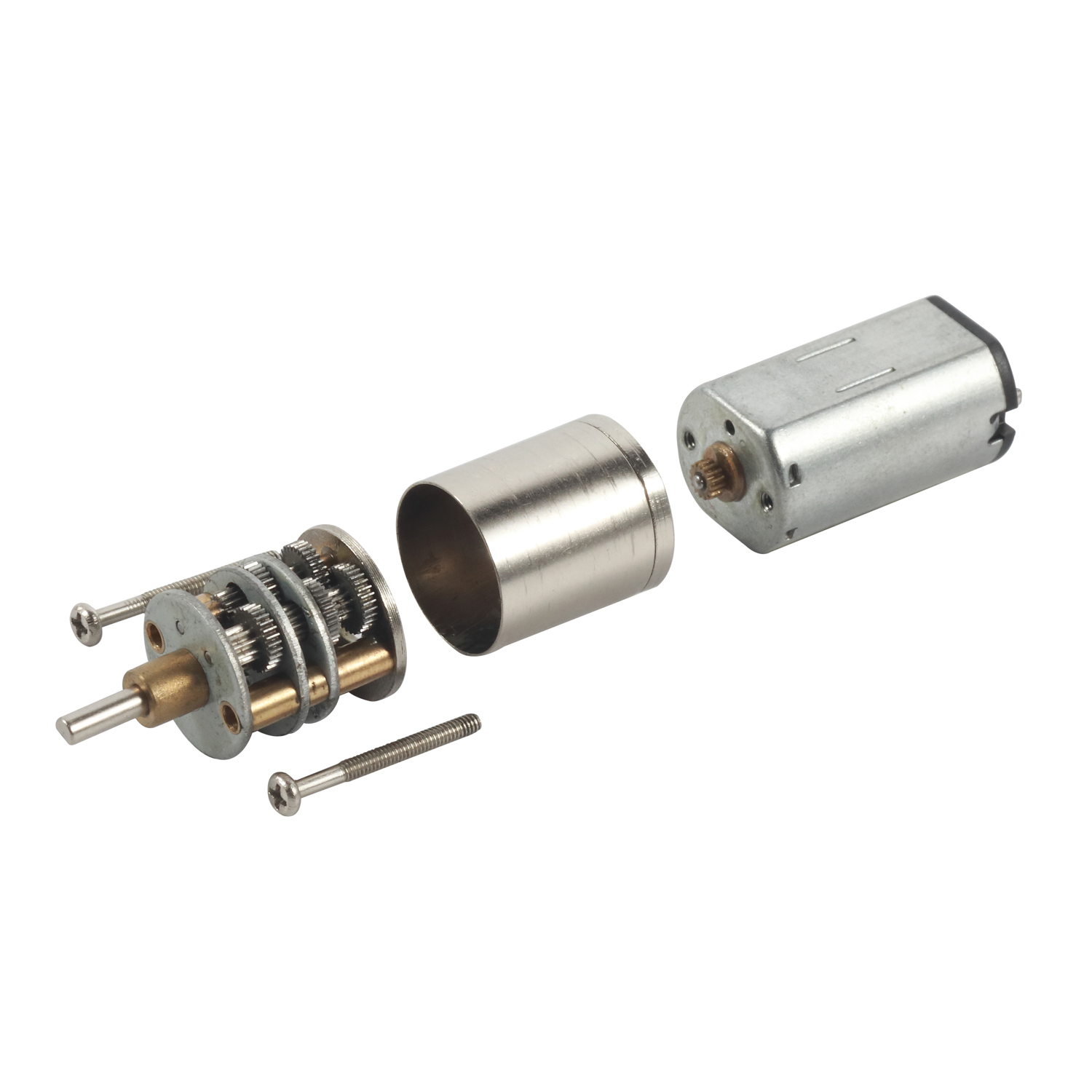

Micro Gear Motor is related to our life. From home appliances to electric products, as long as it requires electric energy, the small motor needs to use. The 16mm micro gear motor is an ideal solution for the application such as coffee machine, electric lock. Compared with similar products Which I.CH supplies, this motor’s rated voltage is bigger, it can be 12V. According to the task of design, the material of gear can be Metal or Plastic(if the torque is relatively low).
Gearbox Specification
Number of stages | 3 | 4 | 5 | 6 | |
Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
16.7 | 33.3 | 100 | 250 | 750 | |
50 | 150 | 300 | 900 | ||
450 | 1350 | ||||
Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 |
DC Gear Motor Specification
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D162-003100 | 3.0 | 70 | 60 | 52 | 0.3 | 170 | 160 | 0.8 | 450 |
D162-001050 | 6.0 | 250 | 80 | 200 | 0.12 | 250 | 250 | 1.0 | 700 |
D162-006200 | 6.0 | 60 | 80 | 45 | 0.55 | 250 | 250 | 3.0 | 700 |
D162-007300 | 6.0 | 35 | 60 | 25 | 0.7 | 180 | 180 | 4.0 | 500 |
