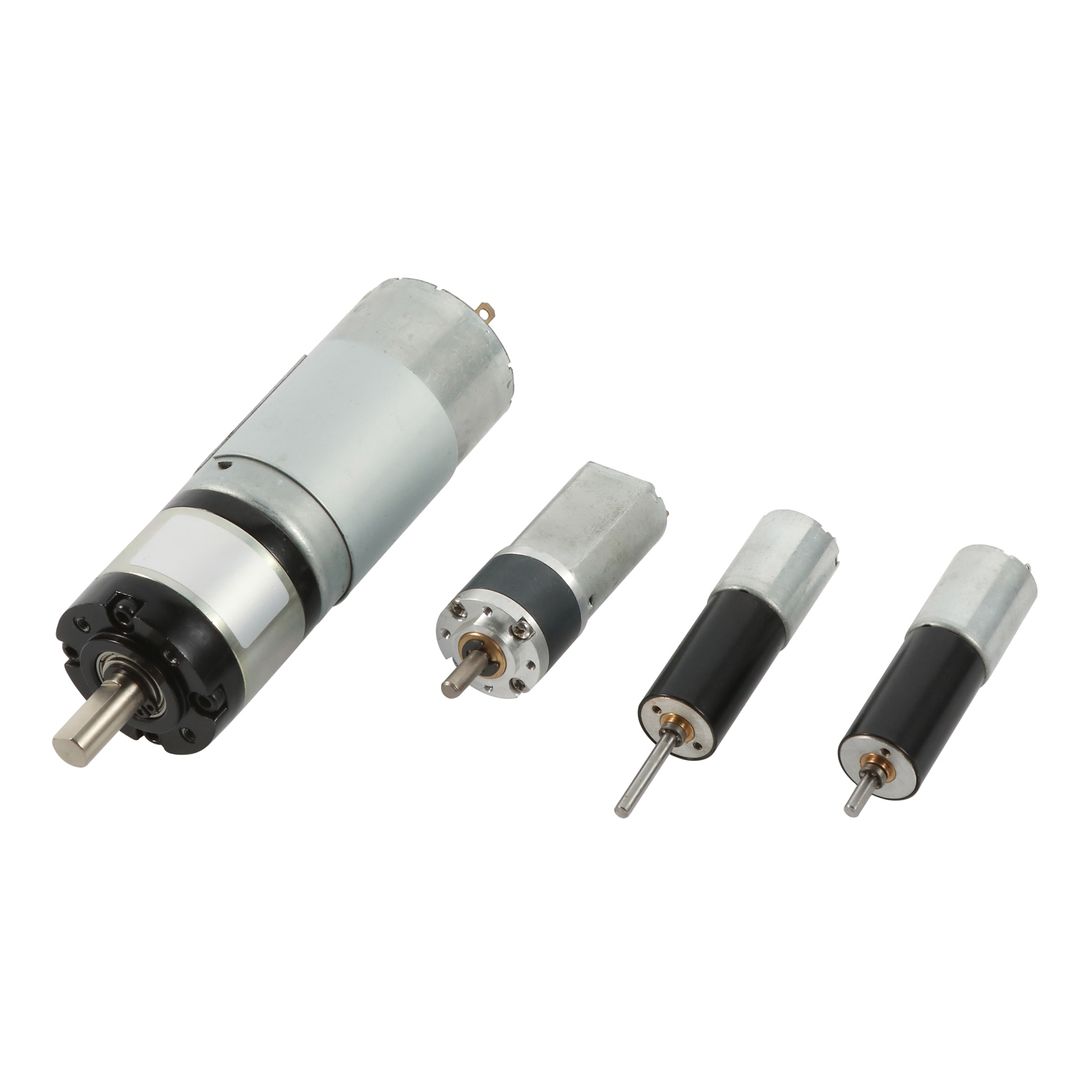

Micro Brush DC Planet Gear Motor

• Gearbox Type: Planetary Geared box with Mixed Gear • Gear Ratio:1:4~1:1621 • Electric Planetary Reducer Size: 22mm • Ball bearing of shaft bearings in most series is available. • OEM Custom modifications is available. • Application: Automatic Window Bind Motor, Medical Instrument Motor
Availability:
Quantity:
  • DP223-03&04

  • I.CH

  • 22mm Planetary Gear Motor

Description

Although the complex design of planetary gearbox leads to a little expensive price,  the planetary gears in the gearbox share load equally among each other, so the gear inflicts little wear and tear. Also, because of the good arrangement of the planetary gear, in the process of motor working, the noise is very reduced. In terms of cost performance, it is worthwhile.


DC Motor + Gearbox Specifications


Reduction
ratio
1/41/141/161/191/531/621/721/841/1041/1981/2311/2701/3161/3701/4551/7421/10141/12491/1621
12VRated
torque(g.cm)
10030035041097011001300150019002500250025002500250025003000300030003000
Rated
speed(rpm)
100034029024590776656462421181613.5117.354.23.3
24VRated
torque(g.cm)
120360420490115013001500180020002500250025002500250025003000300030003000
Rated
speed(rpm)
100033028024089766555462421181613.5117.354.23.3

Rotation
 direction
CW

Length
(L-mm)
14.418.0521.725.3529


DC Motor Specifications

Rated
volt(V)
Rated
 torque(g.cm)
Rated
speed(rpm)
Rated
current(mA)
No load
speed(rpm)
No load
current(mA)
Weight(g)
12314790<=2406000<=8043
24374710<=1456000<=5543


Planet Brush DC Gear Motor
