DP323-03&04
I.CH

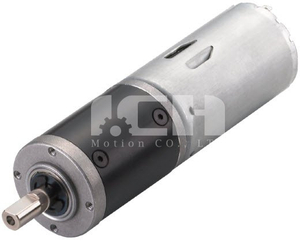

32mm Planetary Gear Motor
Description
As a professional gear motor manufacturer, we can supply different type of motor with gearbox. The 24V planetary gear motor that I.CH produces is 32mm DC motor with a planetary gearbox.
DC Motor + Gearbox Specifications
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
| 12V | Rated torque(Kg.cm) | 0.45 | 1.1 | 1.5 | 2.1 | 2.7 | 3.4 | 4.7 | 6.6 | 9.1 | 10 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1140 | 430 | 310 | 221 | 170 | 117 | 83 | 60 | 44 | 32 | 24 | 12.9 | 9.5 | 7.2 | |
| 24V | Rated torque(Kg.cm) | 0.54 | 1.2 | 1.7 | 2.4 | 3.1 | 4 | 5.5 | 7.8 | 10 | 12 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1170 | 445 | 320 | 229 | 176 | 121 | 87 | 62 | 45 | 34 | 25 | 13 | 9.6 | 7.2 | |
| Rotation direction | CCW | ||||||||||||||
| Length （L-mm） | 20.6 | 27 | 33.4 | 39.8 | |||||||||||
DC Motor Specifications
| Rated volt (V) | Rated torque （g.cm） | Rated speed (rpm) | Rated current (mA) | No load speed (rpm) | No load current (mA) | Weight (g) |
| 12 | 110 | 5950 | <=900 | 7300 | <=150 | 110 |
| 24 | 130 | 6160 | <=500 | 7300 | <=85 | 110 |
Description
As a professional gear motor manufacturer, we can supply different type of motor with gearbox. The 24V planetary gear motor that I.CH produces is 32mm DC motor with a planetary gearbox.
DC Motor + Gearbox Specifications
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 | |
| 12V | Rated torque(Kg.cm) | 0.45 | 1.1 | 1.5 | 2.1 | 2.7 | 3.4 | 4.7 | 6.6 | 9.1 | 10 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1140 | 430 | 310 | 221 | 170 | 117 | 83 | 60 | 44 | 32 | 24 | 12.9 | 9.5 | 7.2 | |
| 24V | Rated torque(Kg.cm) | 0.54 | 1.2 | 1.7 | 2.4 | 3.1 | 4 | 5.5 | 7.8 | 10 | 12 | 12 | 12 | 12 | 12 |
| Rated speed(rpm) | 1170 | 445 | 320 | 229 | 176 | 121 | 87 | 62 | 45 | 34 | 25 | 13 | 9.6 | 7.2 | |
| Rotation direction | CCW | ||||||||||||||
| Length （L-mm） | 20.6 | 27 | 33.4 | 39.8 | |||||||||||
DC Motor Specifications
| Rated volt (V) | Rated torque （g.cm） | Rated speed (rpm) | Rated current (mA) | No load speed (rpm) | No load current (mA) | Weight (g) |
| 12 | 110 | 5950 | <=900 | 7300 | <=150 | 110 |
| 24 | 130 | 6160 | <=500 | 7300 | <=85 | 110 |
