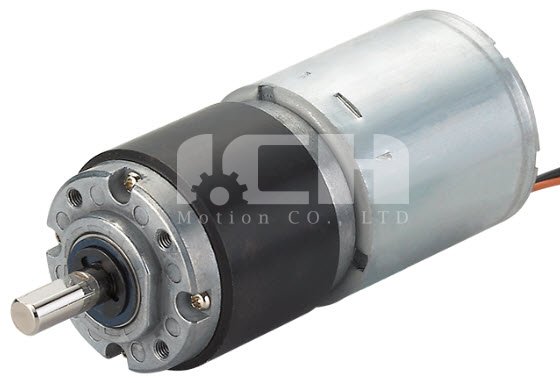

32mm DC Planetary Gearmotor Powder Metallurgy Gear

• Manufacturer Part Number: DP324P
• Gearbox Type: Planetary Geared box with Powder Metallurgy Gear
• Gear Ratio:1:5~1:721
• Electric Planetary Reducer Size: 32mm
• Ball bearing of shaft bearings in most series is available.
• OEM Custom modifications is available.
• Application: Automatic Window Bind Motor,
Medical Instrument Motor
Availability:
Quantity:
  • DP324P GearMotor

  • I.CH

  • 32mm Reducer Motor

The Specification in the table comes from the motor with planetary gearbox, planetar gears is different material gear, highest torque is 12kg.cm




Gear Motor Torque & Speed

Reduction
ratio
1/51/141/191/271/511/711/1001/1391/1891/2641/5161/721
12VRated
torque(g.cm)
0.81.92.63.76.18101012121212
Rated
speed(rpm)
3801401007338282015.511.58.54.53.4
24VRated
torque(g.cm)
12.43.34.77.68101012121212
Rated
speed(rpm)
7502802001457654403023178.56.2

Rotation
direction
CW

Length
(L-mm)
22.128.534.941.3

• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.

• Modified versions for extended temperature and special environmental conditions are available.


DC Motor Specification
Rated volt
(V)
Rated torque
(g.cm)
Rated speed
(rpm)
Rated current
(mA)
No load speed
(rpm)
No load current
(mA)
Weight
(g)
12 200 2000 <=1000 2800 <=350 145
24 250 3900 <=1230 5000 <=400 145

D323P-41&42电机曲线





                                                         Mechanical Dimensions
D323P-41&42



Full Datasheet

D323P-41&42.doc
