D162A2
I.CH

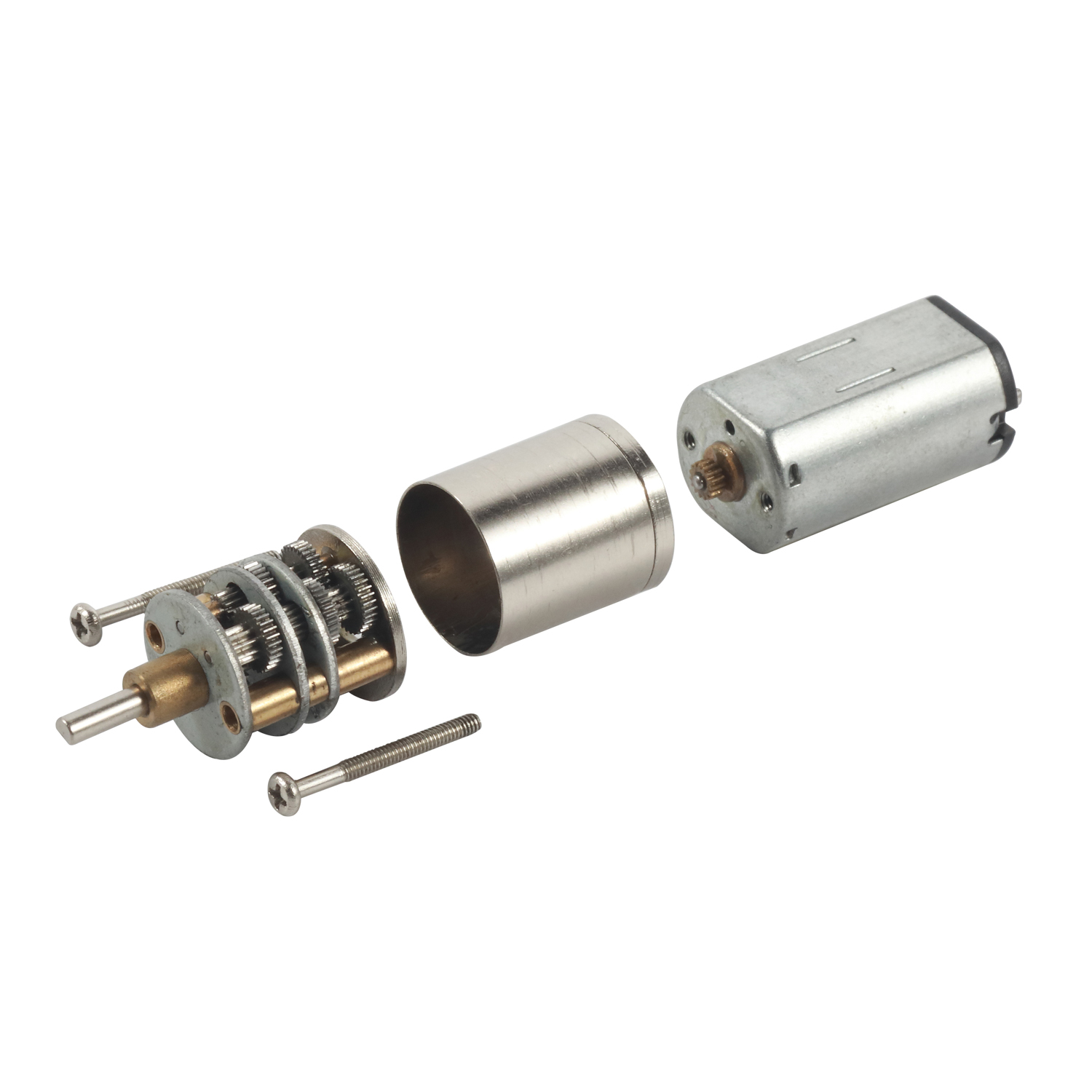

16MM DC Gear Motor
Discription
The 16mm micro DC motor with spur gearbox is an ideal solution for the application such as Vending Machine, Coffee Machine, Toys. Compared with similar products Which I.CH supplies, this motor’s rated voltage is bigger, it can be 12V. According to the task of design, the material of gear can be Metal or Plastic(if the torque is relatively low).
Gearbox Specification
| Number of stages | 3 | 4 | 5 | 6 | 7 |
| Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
| 16.7 | 33.3 | 100 | 250 | 750 | |
| 50 | 150 | 300 | 900 | ||
| 450 | 1350 | ||||
| Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 | |
DC Gear Motor Specification
| MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
| D162-002033 | 12.0 | 350 | 50 | 290 | 0.15 | 170 | 450 | 1.0 | 700 |
| D162-002050 | 12.0 | 230 | 50 | 180 | 0.24 | 170 | 450 | 1.5 | 700 |
| D162-004100 | 12.0 | 110 | 40 | 85 | 0.48 | 120 | 420 | 2.5 | 400 |
| D162-015250 | 12.0 | 32 | 40 | 25 | 1.5 | 120 | 380 | 4.0 | 400 |
| D162-005100 | 6.0 | 115 | 80 | 90 | 0.5 | 260 | 460 | 2.5 | 900 |
| D162-009200 | 6.0 | 60 | 80 | 46 | 0.9 | 290 | 420 | 4.0 | 900 |
| D162-018450 | 6.0 | 20 | 60 | 16 | 1.8 | 200 | 300 | 4.0 | 800 |
| D162-025750 | 6.0 | 12 | 60 | 10 | 2.5 | 200 | 280 | 4.0 | 800 |
