S493
I.CH

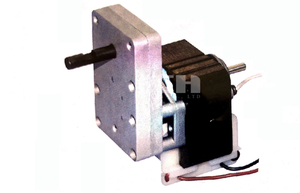

49mm AC Reversible Synchronous Motor
Description
Gear box inside designed
Excellent torque characterisitcs
Instantaneous start/stop
Reliable starting and directional stability
Speed state invariable not effected by voltage under rated frequency
Virtually silent running for noise sensitive environments
Specification
| Model | Output speed (rpm) | Output Torque (kg.cm / lb.in) | Voltage (V.AC) | Current (A) | Frequency (Hz) | Input Power (W) | Noise (dB) | Rotation | ||
| S1 continuous | S2 15 minutes | S2 5 minutes | ||||||||
| S493-45-1.0 | 1.04 | 45 / 39 | 60 / 52.2 | 70 / 60.9 | 24 ********* 110 ********* 220 | <0.2 ********** <0.05 ********* <0.023 | 50/60Hz | 2.5~7 | <45 | CW / CCW / Bi-directional |
| S493-30-1.5 | 1.50 | 30 / 26 | 40 / 34.8 | 46 / 40 | ||||||
| S493-22-2.0 | 2 | 22 / 19 | 30 / 26 | 35 / 30.5 | ||||||
| S493-18-2.5 | 2.5 | 18 / 15.7 | 24 / 20.9 | 28 / 24.4 | ||||||
| S493-11-4.0 | 4 | 11 / 9.6 | 15 / 13 | 17.5 / 15.2 | ||||||
| S493-09-4.8 | 4.8 | 9.4 / 8.2 | 12.5 / 10.9 | 14.5 / 12.6 | ||||||
| S493-09-5.0 | 5 | 9 / 7.8 | 12 / 10.4 | 14 / 12.2 | ||||||
| S493-08-5.8 | 5.8 | 7.6 / 6.6 | 10 / 8.7 | 12 / 10.4 | ||||||
| S493-05-9.0 | 9 | 5 / 4.35 | 6.5 / 5.7 | 7.8 / 6.8 | ||||||
| S493-03-15 | 15 | 3 / 2.6 | 4 / 3.5 | 4.6 / 4 | ||||||
| S493-02-25 | 25 | 1.8 / 1.57 | 2.4 / 2.1 | 2.8 / 2.43 | ||||||
| S493-02-30 | 30 | 1.5 / 1.3 | 2 / 1.74 | 2.3 / 2 | ||||||
| S493-01-45 | 45 | 1 / 0.87 | 1.3 / 1.13 | 1.5 / 1.3 | ||||||
| S493-01-60 | 60 | 0.75 | 1 / 0.87 | 1.2 / 1.04 | ||||||
| S493-01-75 | 75 | 0.6 | 0.8 / 0.7 | 1.0 / 0.87 | ||||||
| Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department | ||||||||||
Safety
| Insulation resistance | DC 500V 100M ohms |
| Insulation strength | AC1500V, 50Hz/min(220V motor) |
| Insulation class | E(105℃) / B(130℃) |
| Environment | Temp.-10℃~+40℃ / Humidity: <85 |
| Certification | CE ROHS CCC |
Description
Gear box inside designed
Excellent torque characterisitcs
Instantaneous start/stop
Reliable starting and directional stability
Speed state invariable not effected by voltage under rated frequency
Virtually silent running for noise sensitive environments
Specification
| Model | Output speed (rpm) | Output Torque (kg.cm / lb.in) | Voltage (V.AC) | Current (A) | Frequency (Hz) | Input Power (W) | Noise (dB) | Rotation | ||
| S1 continuous | S2 15 minutes | S2 5 minutes | ||||||||
| S493-45-1.0 | 1.04 | 45 / 39 | 60 / 52.2 | 70 / 60.9 | 24 ********* 110 ********* 220 | <0.2 ********** <0.05 ********* <0.023 | 50/60Hz | 2.5~7 | <45 | CW / CCW / Bi-directional |
| S493-30-1.5 | 1.50 | 30 / 26 | 40 / 34.8 | 46 / 40 | ||||||
| S493-22-2.0 | 2 | 22 / 19 | 30 / 26 | 35 / 30.5 | ||||||
| S493-18-2.5 | 2.5 | 18 / 15.7 | 24 / 20.9 | 28 / 24.4 | ||||||
| S493-11-4.0 | 4 | 11 / 9.6 | 15 / 13 | 17.5 / 15.2 | ||||||
| S493-09-4.8 | 4.8 | 9.4 / 8.2 | 12.5 / 10.9 | 14.5 / 12.6 | ||||||
| S493-09-5.0 | 5 | 9 / 7.8 | 12 / 10.4 | 14 / 12.2 | ||||||
| S493-08-5.8 | 5.8 | 7.6 / 6.6 | 10 / 8.7 | 12 / 10.4 | ||||||
| S493-05-9.0 | 9 | 5 / 4.35 | 6.5 / 5.7 | 7.8 / 6.8 | ||||||
| S493-03-15 | 15 | 3 / 2.6 | 4 / 3.5 | 4.6 / 4 | ||||||
| S493-02-25 | 25 | 1.8 / 1.57 | 2.4 / 2.1 | 2.8 / 2.43 | ||||||
| S493-02-30 | 30 | 1.5 / 1.3 | 2 / 1.74 | 2.3 / 2 | ||||||
| S493-01-45 | 45 | 1 / 0.87 | 1.3 / 1.13 | 1.5 / 1.3 | ||||||
| S493-01-60 | 60 | 0.75 | 1 / 0.87 | 1.2 / 1.04 | ||||||
| S493-01-75 | 75 | 0.6 | 0.8 / 0.7 | 1.0 / 0.87 | ||||||
| Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department | ||||||||||
Safety
| Insulation resistance | DC 500V 100M ohms |
| Insulation strength | AC1500V, 50Hz/min(220V motor) |
| Insulation class | E(105℃) / B(130℃) |
| Environment | Temp.-10℃~+40℃ / Humidity: <85 |
| Certification | CE ROHS CCC |
| Mechanical Dimensions |
 |
| Mechanical Dimensions |
|
Custom Shaft
Round Shaft， D-Cut Sahft， H-Cut Shaft， Custom Length
Custom Shaft
Round Shaft， D-Cut Sahft， H-Cut Shaft， Custom Length
Factory Ability
I.CH Motion was established in 2006. We focus on AC Motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories located in Jiangsu province. After years development, we built a great reputation in the overseas market.
Advantages
1. No MOQ limited;
2. Short Lead-Time;
3. Quickly response in time;
Package
-Cartons, pallets package;
-Sea shipping or air shipping;
-Delivery: 3 to 8 weeks.
FAQ
Q: What speed for the 49mm AC motor?
A: We normally make speed of 49mm AC synchronous motor from 1rpm to 75 rpm, it depends on your request, we can also customized the speed.
Q: Where can the synchronous geared motor be used?
A: It can be used in Household Electrical Appliances Motor, such as water valve control.
Q: Can I have samples for testing first?
A: Yes, definitely you can. You can order prototypes for experiment, and our MOQ for batch order is 1000pcs..
Factory Ability
I.CH Motion was established in 2006. We focus on AC Motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories located in Jiangsu province. After years development, we built a great reputation in the overseas market.
Advantages
1. No MOQ limited;
2. Short Lead-Time;
3. Quickly response in time;
Package
-Cartons, pallets package;
-Sea shipping or air shipping;
-Delivery: 3 to 8 weeks.
FAQ
Q: What speed for the 49mm AC motor?
A: We normally make speed of 49mm AC synchronous motor from 1rpm to 75 rpm, it depends on your request, we can also customized the speed.
Q: Where can the synchronous geared motor be used?
A: It can be used in Household Electrical Appliances Motor, such as water valve control.
Q: Can I have samples for testing first?
A: Yes, definitely you can. You can order prototypes for experiment, and our MOQ for batch order is 1000pcs..
